Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement

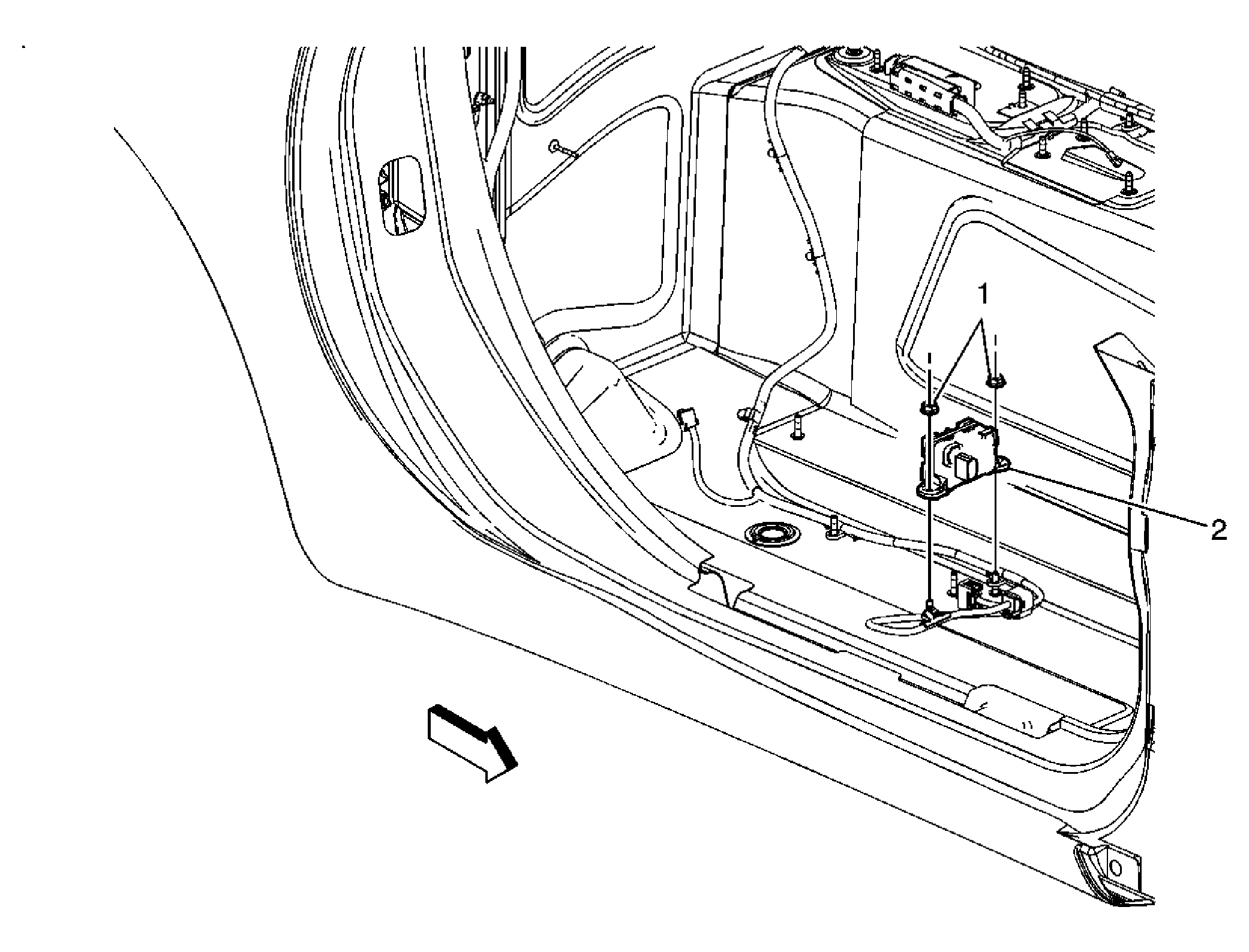

Fig 1: View Of Vehicle Yaw Sensor & Nut

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the floor panel carpet. Refer to Floor Panel Carpet Replacement .
1	Vehicle Yaw Sensor Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Assembly Procedure Disconnect the electrical connection. Perform the Diagnostic System Check - Vehicle .

Callout

Component Name

Preliminary Procedures:
Remove the floor panel carpet. Refer to Floor Panel Carpet Replacement .

Vehicle Yaw Sensor Nut (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Assembly

Procedure
