Transmission Control Systems



Automatic Transmission Controls Schematics

DLC, Ground, and Power

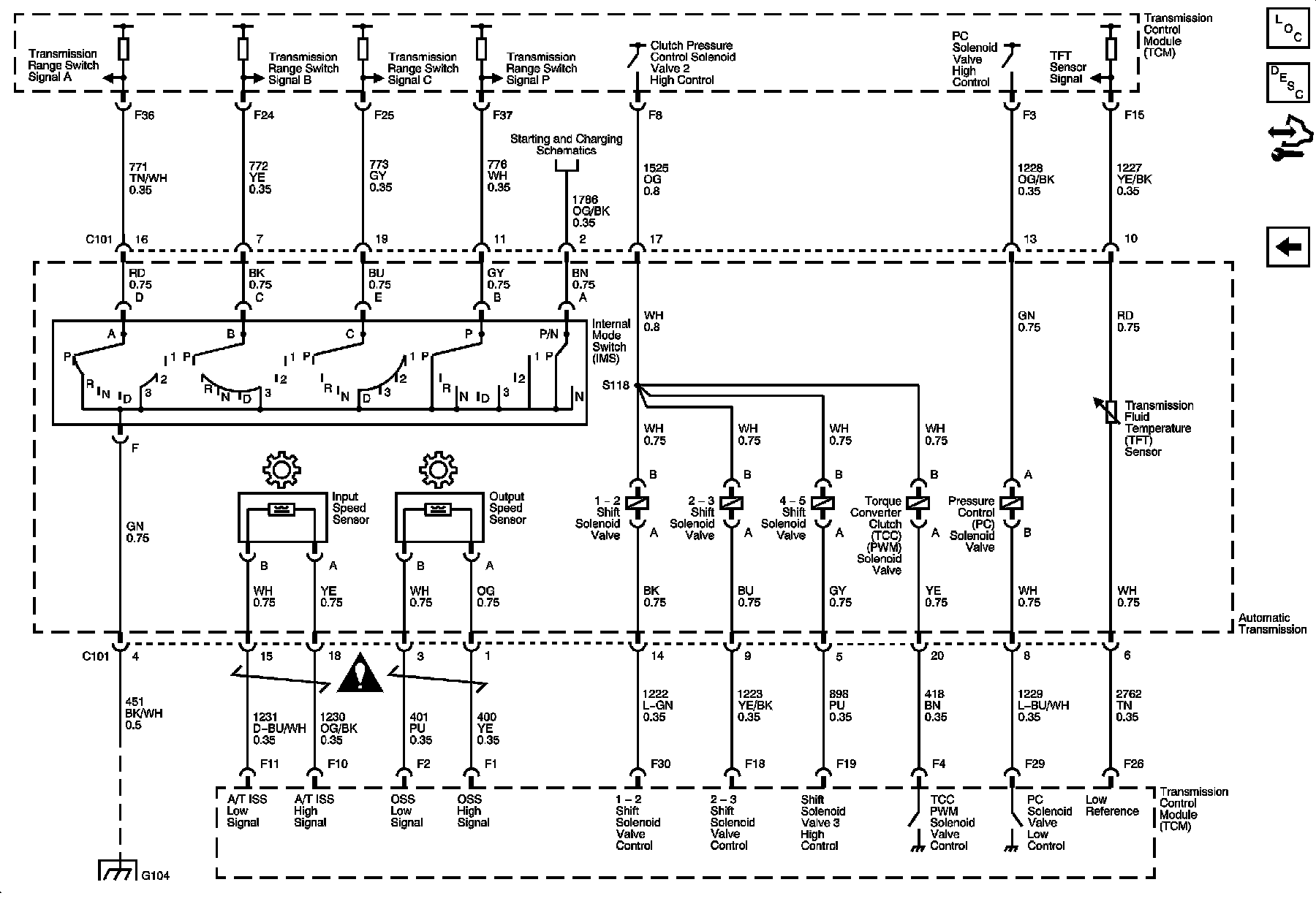

Shift Solenoids, TFT, and VSS
