Air Flow Meter/Sensor: Locations

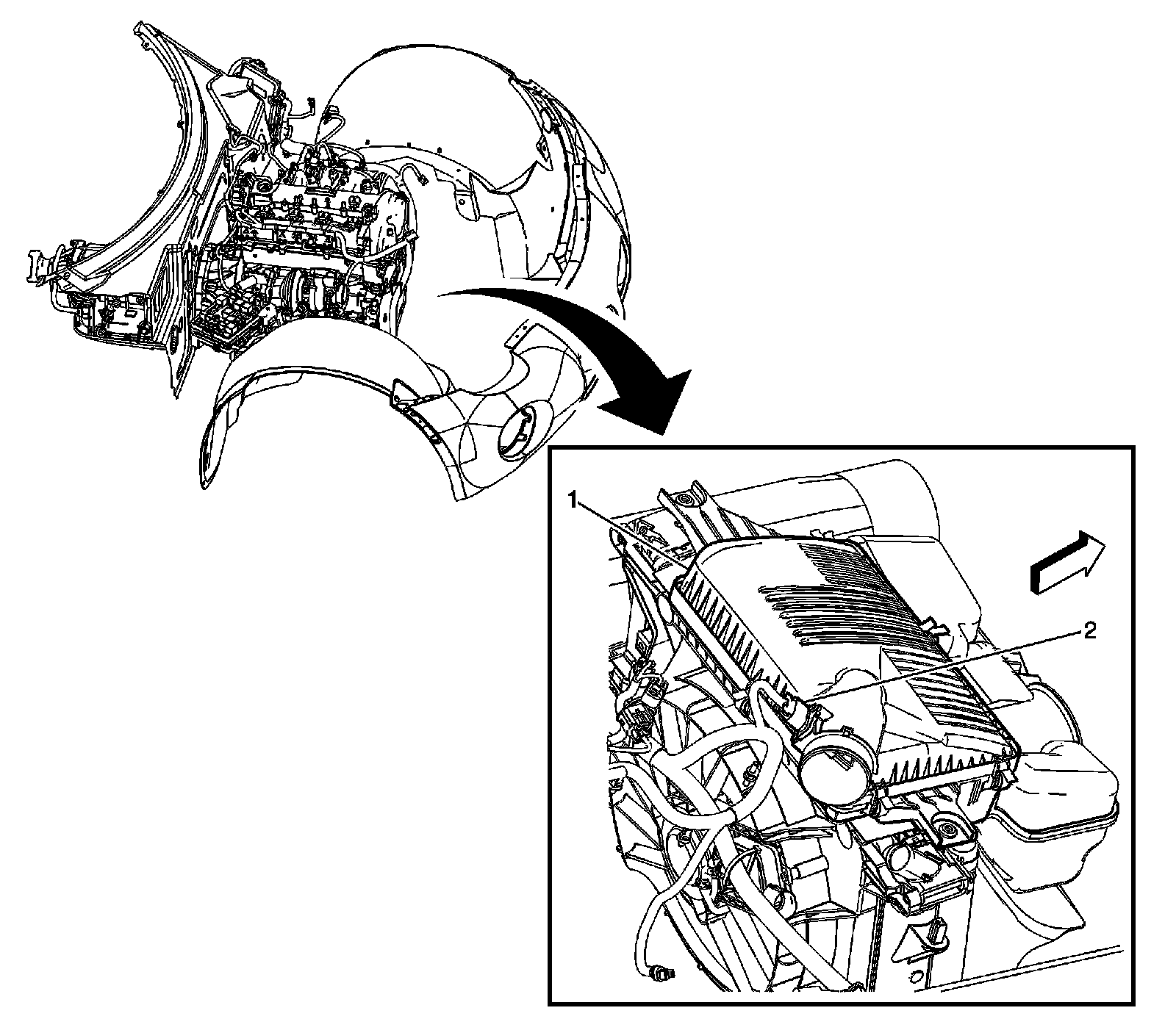

Front of Vehicle/Engine Compartment Component Views


Above the Radiator




1 - Air Cleaner
2 - Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor

Engine Cooling Fan
