Remote Control Door Lock Receiver

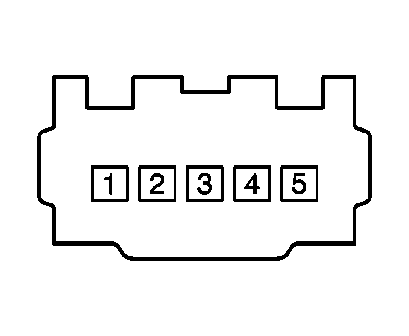

Fig 1: Remote Control Door Lock Receiver Connector End View
Courtesy of GENERAL MOTORS CORP.
Connector Part Information
OEM: 90980-11909
Service: N/A
Description: WH
Pin
Wire Color
Function
1
WH/BK
Ground
2
BU/RD
Lock/Unlock Signal
3
GN/YE
Program Signal
4
-
Not Used
5
BU/YE
Battery Positive Voltage
