Removal Procedure

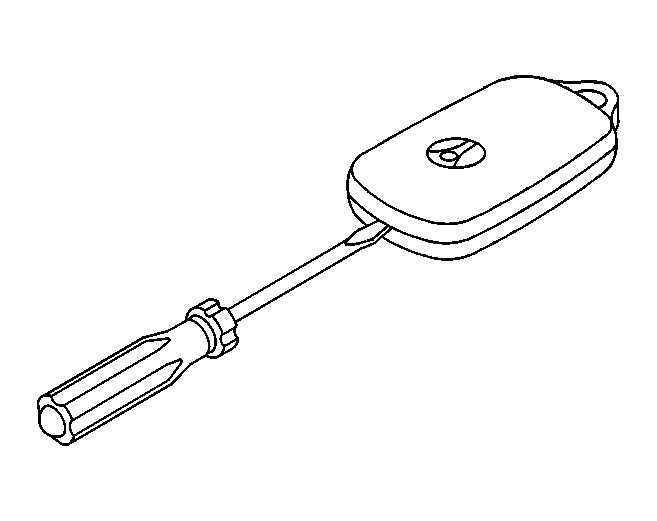

    Fig 1: Releasing Cover Halves Using Screwdriver
    GM245099Courtesy of GENERAL MOTORS CORP.
  1. Place the remote control door lock receiver transmitter face down on a clean surface.
  2. Insert a small screwdriver into the slot on the bottom of the transmitter.
  3. Carefully turn the screwdriver in the slot until the cover releases.
    4. Fig 2: Transmitter Battery, Halves And Seal
    GM245093Courtesy of GENERAL MOTORS CORP.
  4. Remove the cover while being careful not to damage the seal.
  5. Remove the battery from the transmitter.
