Remote Function Schematics (Notchback)

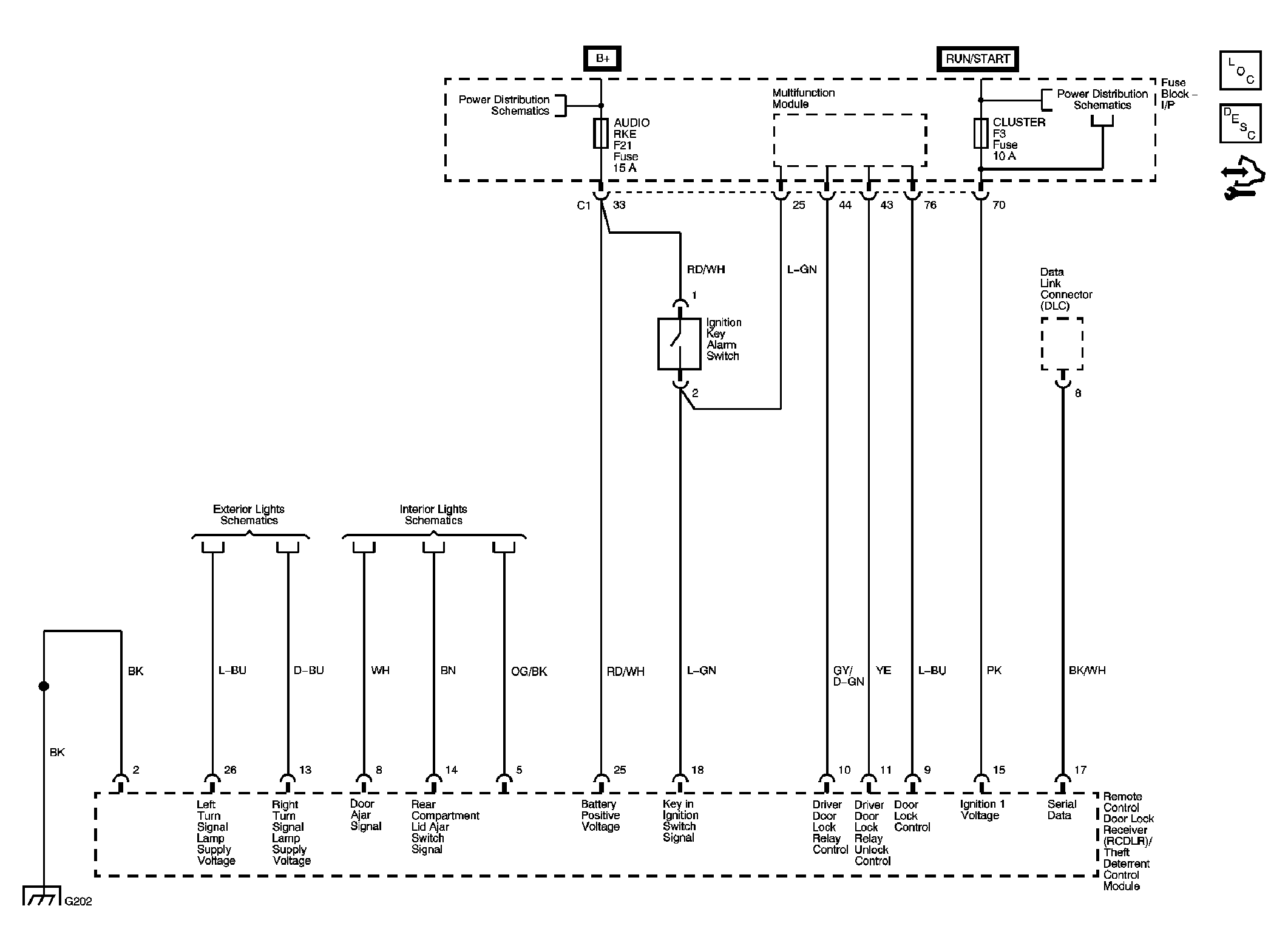

Fig 1: Remote Function Schematic (Notchback)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
