Installation Procedure

  1. Install the shift lock solenoid on the assembly.
    2. Fig 1: Locating Shift Lock Solenoid
    GM1872313Courtesy of GENERAL MOTORS CORP.
  2. Install the shift lock solenoid retaining screws.
  3. Carefully install the shift select cover to the lever assembly.

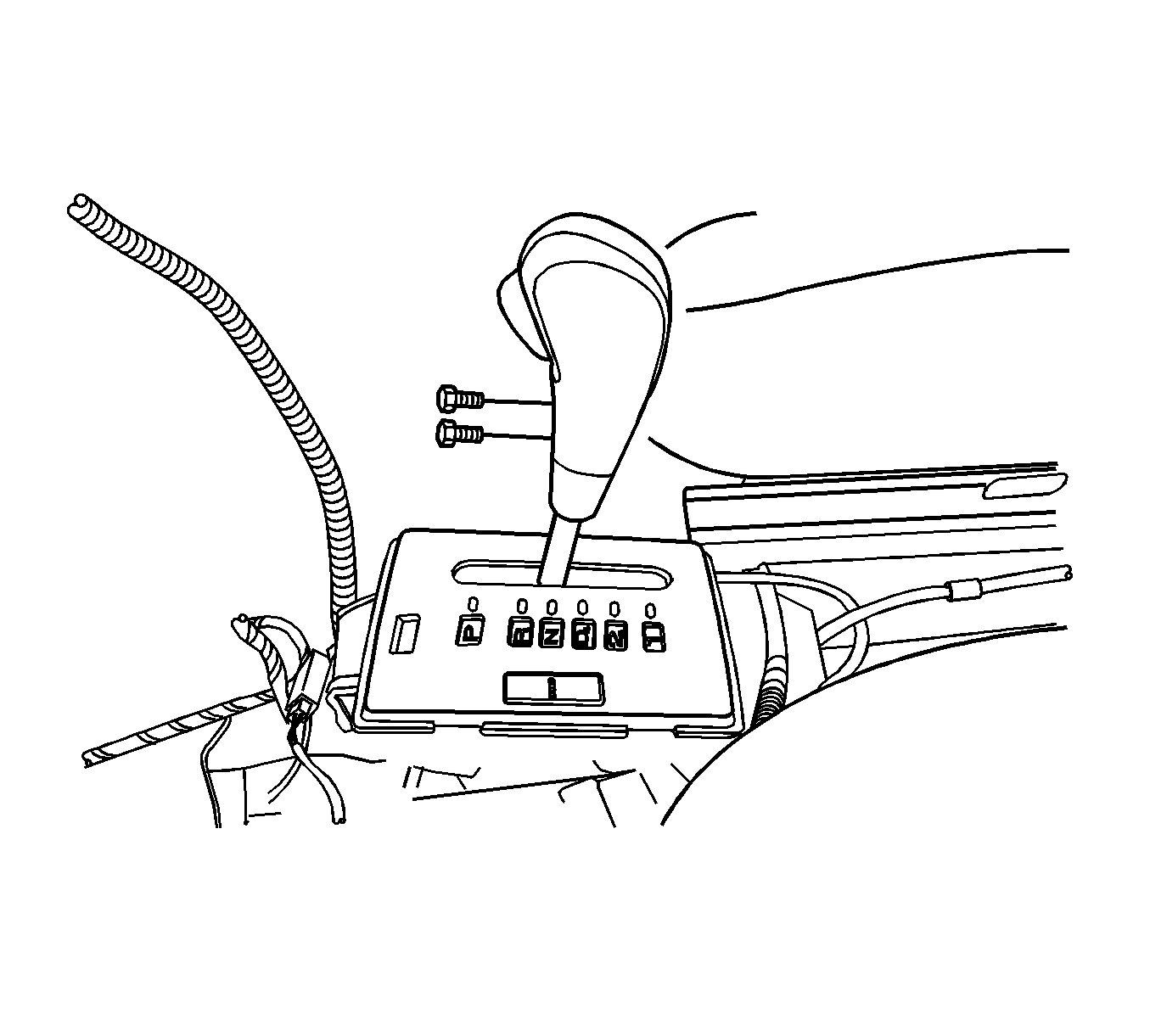

    4. Fig 2: Shift Lever Control Knob Retaining Screws
    GM1872311Courtesy of GENERAL MOTORS CORP.
  4. Install the shift lever control knob, then the retaining screws.

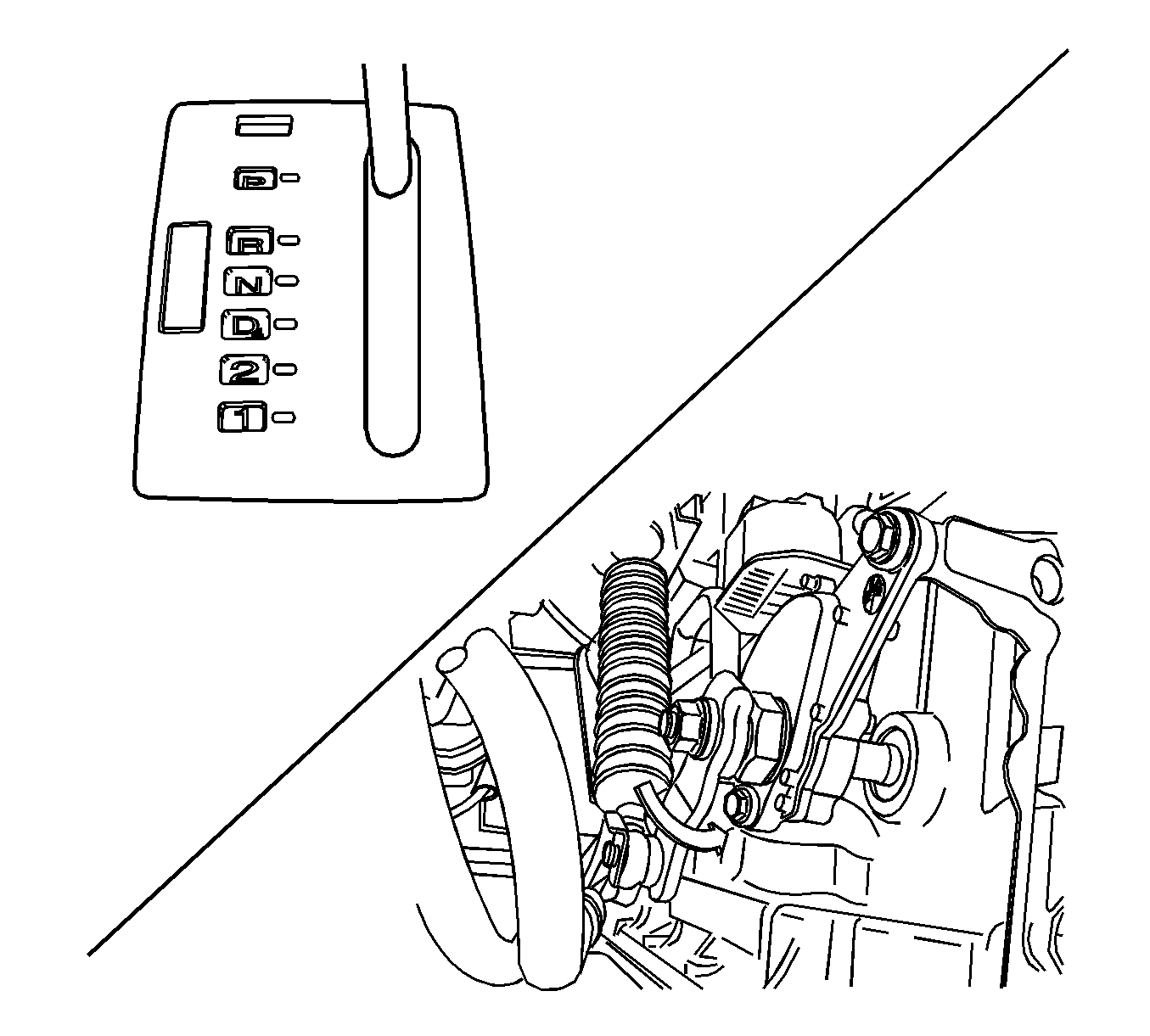

    5. Fig 3: Shift Control Lever Assembly & Mounting Bolts
    GM1889696Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  5. Install the shift control lever assembly and mounting bolts.

    Tighten:  Tighten the shift control lever assembly mounting bolts to 8 N.m (71 lb in).

    6. Fig 4: Control Cable Adjusting Nut
    GM1245812Courtesy of GENERAL MOTORS CORP.
  6. Connect the control cable to the shift control lever assembly.
  7. Tighten the control cable adjusting nut.

    Tighten:  Tighten the control cable adjusting nut to 8 N.m (71 lb in).

    8. Fig 5: Wiring Harness Connectors & Shift Control Lever
    GM1245816Courtesy of GENERAL MOTORS CORP.
  8. Connect the harness connector.
  9. Adjust the control cable. Refer to Range Selector Lever Cable Adjustment .
  10. Install the floor console. Refer to Front Floor Console Replacement (Notchback) or Front Floor Console Replacement (Hatchback) .
  11. Connect the negative battery cable.
