Steering Wheel Control Switch Assembly Replacement

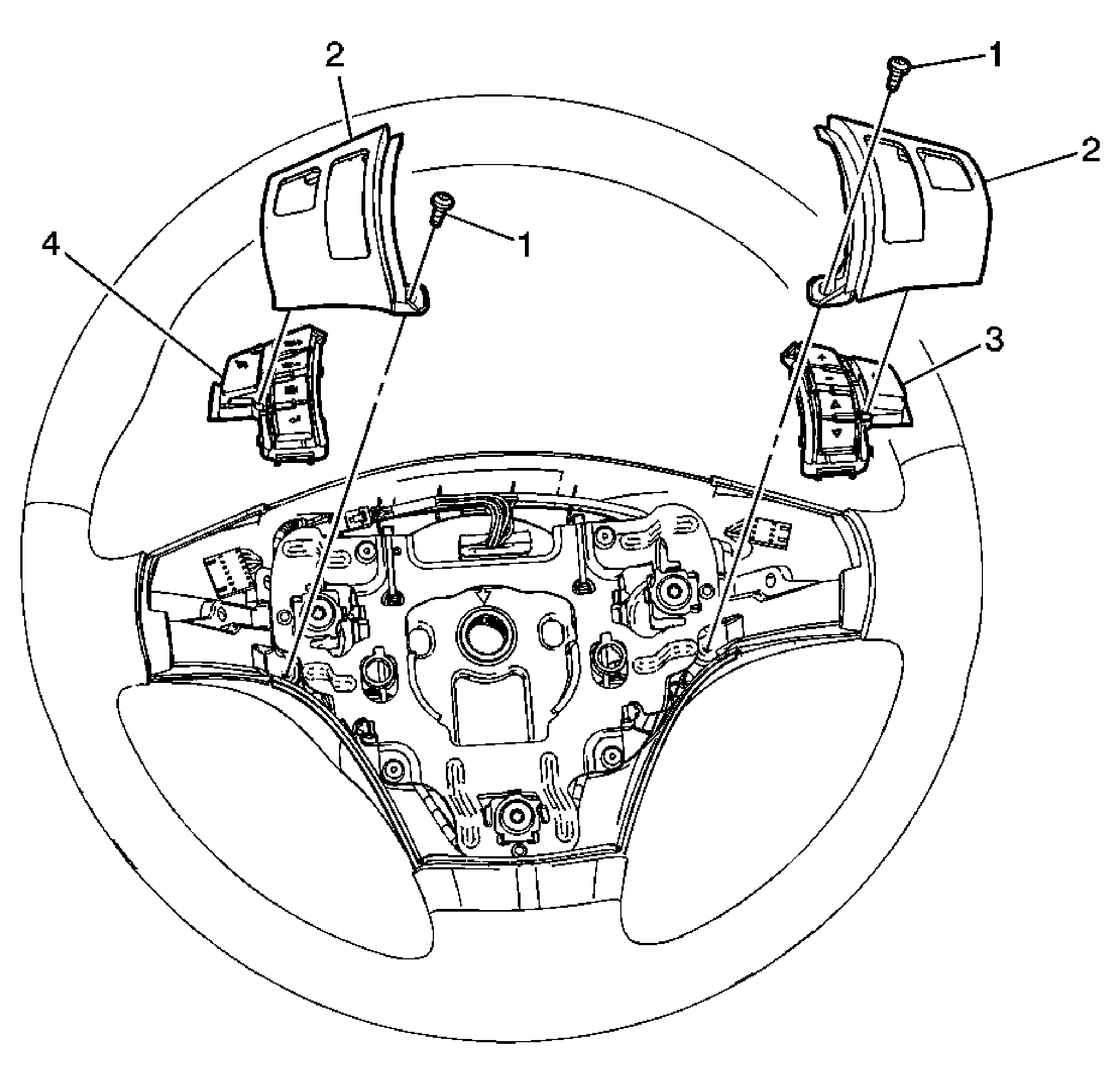

Fig 1: View Of Steering Wheel Control Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Trim Cover Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Steering Wheel Trim Cover (Qty: 2)
3	Radio Control Switch Assembly Procedure Disconnect the electrical connectors. Make sure the steering wheel control switches are properly seated to the steering wheel trim cover during installation.
4	Cruise Control Switch Assembly Procedure Disconnect the electrical connectors. Make sure the steering wheel control switches are properly seated to the steering wheel trim cover during installation.
