Installation Procedure

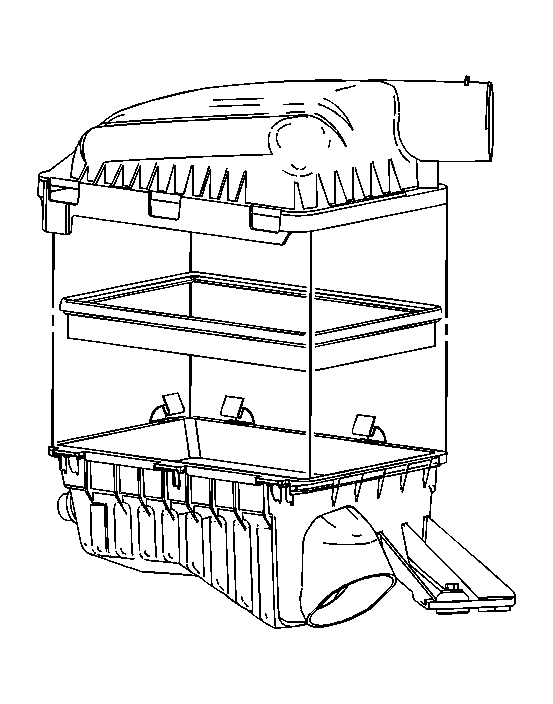

    Fig 1: Identifying Air Cleaner Assembly
    GM1652246Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner filter into the lower air cleaner housing.
  2. Install the upper air cleaner cover to the lower air cleaner housing.
  3. Engage the air cleaner latches.
    4. Fig 2: View Of Engine Harness Electrical Connector To MAF/IAT Sensor
    GM1647998Courtesy of GENERAL MOTORS CORP.
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  5. Connect the engine harness electrical connector to the MAF/IAT sensor.
