Installation Procedure

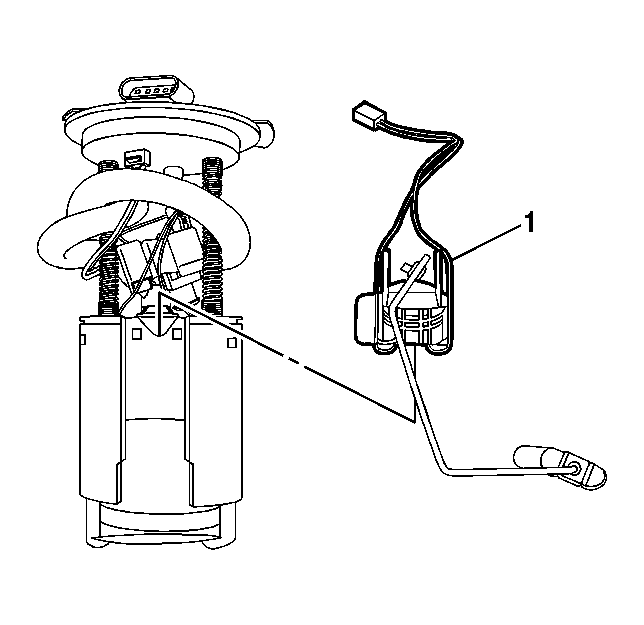

    Fig 1: View Of Fuel Level Sensor
    GM1963803Courtesy of GENERAL MOTORS CORP.
  1. Slide the fuel level sensor (1) in and down into the module bucket.

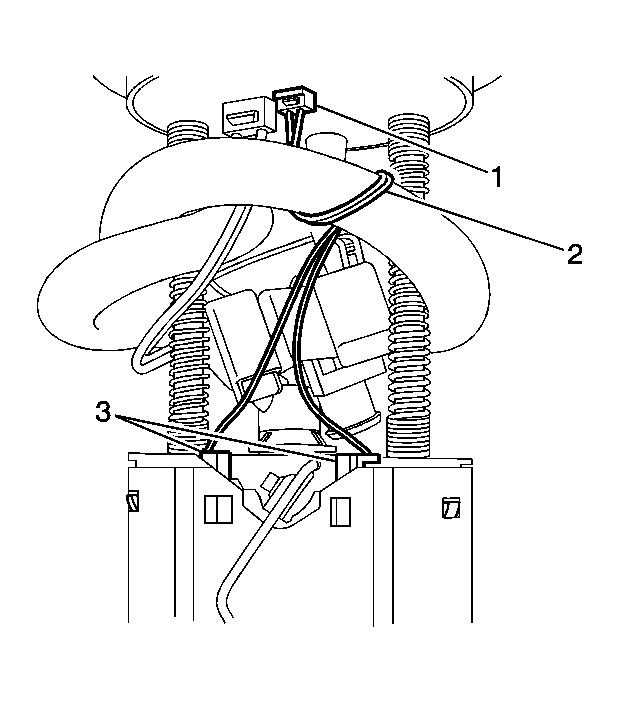

    2. Fig 2: Identifying Level Sensor Electrical Connector Wiring Harness & Connector
    GM1963802Courtesy of GENERAL MOTORS CORP.
  2. Ensure that the fuel level sensor retaining tabs (3) are fully engaged to the module bucket.
  3. Wrap the fuel level sensor electrical connector wiring (2) around the fuel pipe.
  4. Connect the fuel level sensor electrical connector (1) to the module cover.

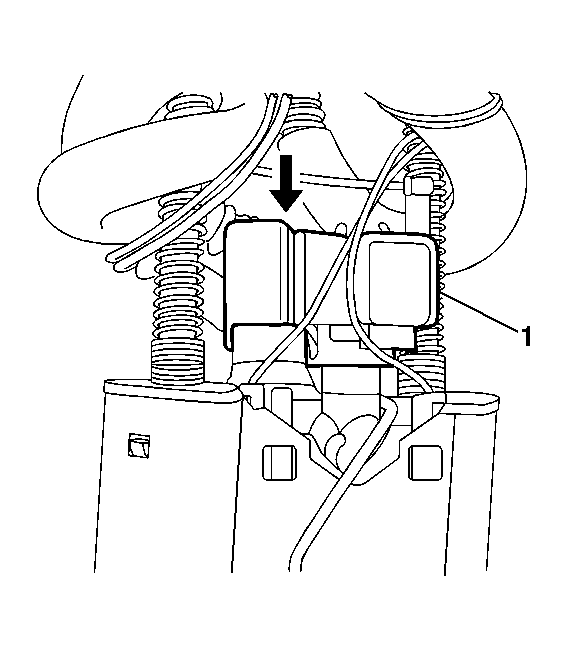

    5. Fig 3: View Of Fuel Pressure Sensor
    GM1963805Courtesy of GENERAL MOTORS CORP.
  5. Align the pressure sensor (1) to the hole in the bucket.
  6. Push down and install the sensor to the bucket. Ensure that the sensor is secured to the bucket.
  7. Install the fuel pump module. Refer to Fuel Pump Module Replacement .
