Removal Procedure

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

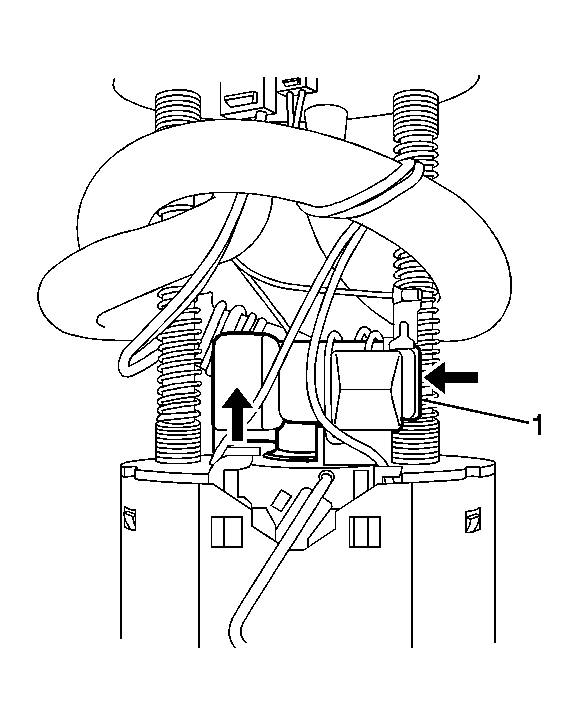

Fig 1: View Of Fuel Pump Module & Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the fuel pump module. Refer to Fuel Pump Module Replacement .
Push clockwise on the pressure sensor (1) in the 2 locations shown until an audible click is heard.
Raise the pressure sensor until the sensor is removed from the bucket.

Fig 2: Identifying Level Sensor Electrical Connector Wiring Harness & Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the fuel level sensor electrical connector (1) from the module cover.
Remove the fuel level sensor electrical connector wiring (2) from around the fuel pipe.
Push in the fuel level sensor retaining tabs (3) in order to disengage the sensor tabs from the module bucket.

Fig 3: View Of Fuel Level Sensor

Courtesy of GENERAL MOTORS CORP.
