Installation Procedure

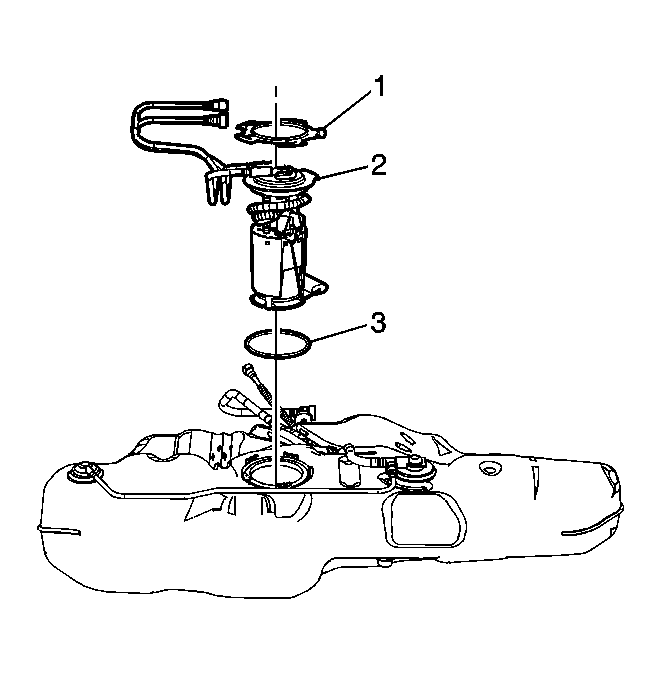

Fig 1: Identifying Fuel Pump Module & Seal

Courtesy of GENERAL MOTORS CORP.

Position a NEW fuel pump module seal (3) onto the fuel tank.
If installing only the module, install the fuel level sensor. Refer to Fuel Level Sensor Replacement .
Install the fuel pump module lock ring (1) over the module feed and return lines and into position on top of the module.

NOTE: The reservoir must be tipped slightly during installation to avoid bending the fuel level sensor float arm.

Tilt the fuel pump module (2) toward the front of the fuel tank to enable the level sensor float arm to clear the tank opening. Install the fuel pump module (2) to the fuel tank.
Slowly lower the fuel pump module (2) into the tank. Ensure that the fuel lines align with the cut outs in the tank.

Fig 2: Identifying Lock Ring

Courtesy of GENERAL MOTORS CORP.

NOTE:

Ensure that the fuel pump module lock ring is fully seated within the fuel tank retaining tab slots.
Always replace the fuel sender seal when installing the fuel sender assembly. Replace the lock ring if necessary. Do not apply any type of lubrication in the seal groove. Ensure that the lock ring is installed with the correct side facing upward. A correctly installed lick ring will only turn in a clockwise direction.

Use the J 45722 (1) in order to install the fuel sender lock ring. Turn the fuel sender lock ring in a clockwise direction.

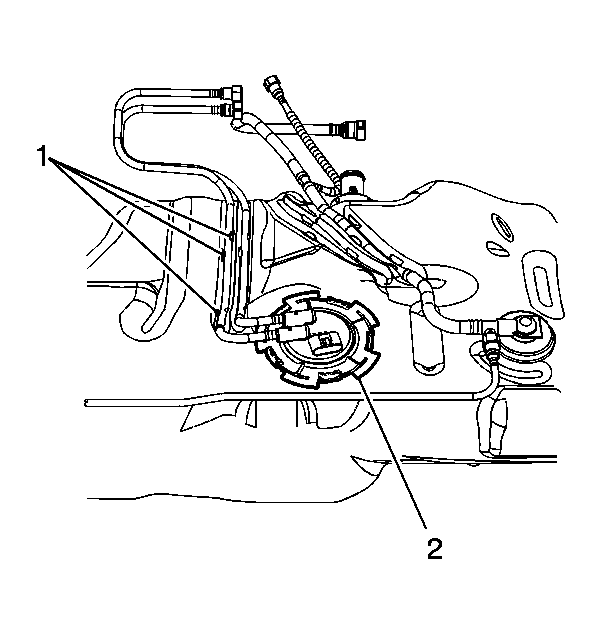

Fig 3: View of fuel feed and return lines

Courtesy of GENERAL MOTORS CORP.

Secure the fuel feed and return lines to the retaining features (1) on the fuel tank.

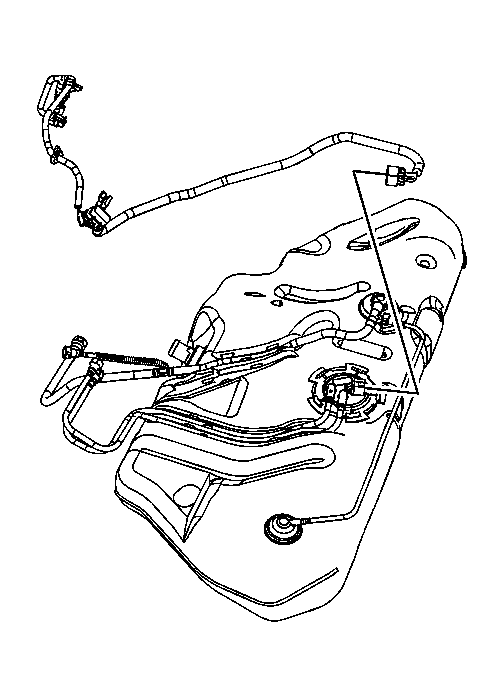

Fig 4: Identifying Fuel Tank Harness Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Position the fuel tank harness and connect the fuel tank harness electrical connector to the fuel pump module.
Install the fuel tank harness to the retaining features on the fuel tank.
Install the fuel tank. Refer to Fuel Tank Replacement .
