Body Control System Schematics

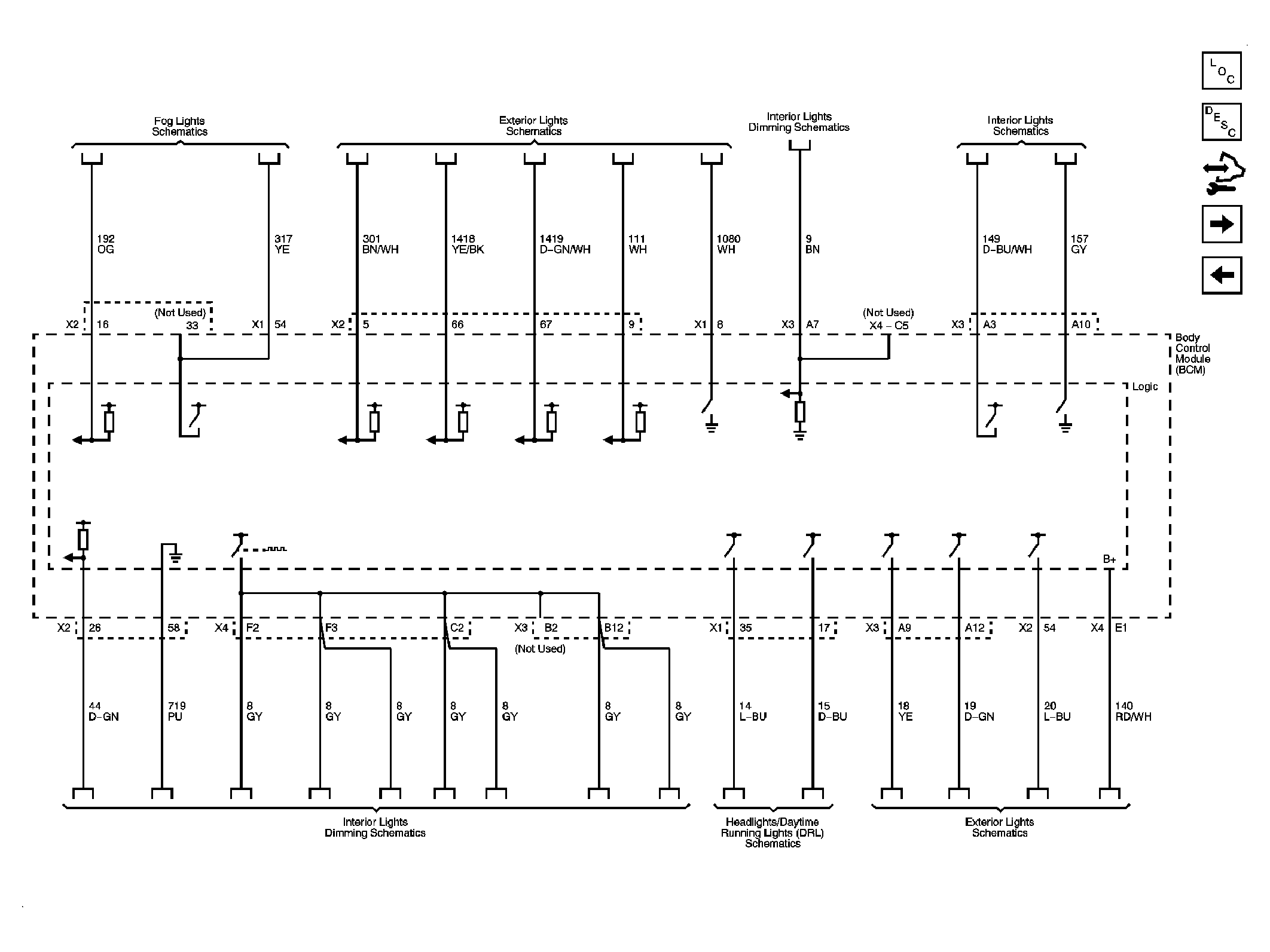

Fig 1: Power, Ground, Communication, References Schematic (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

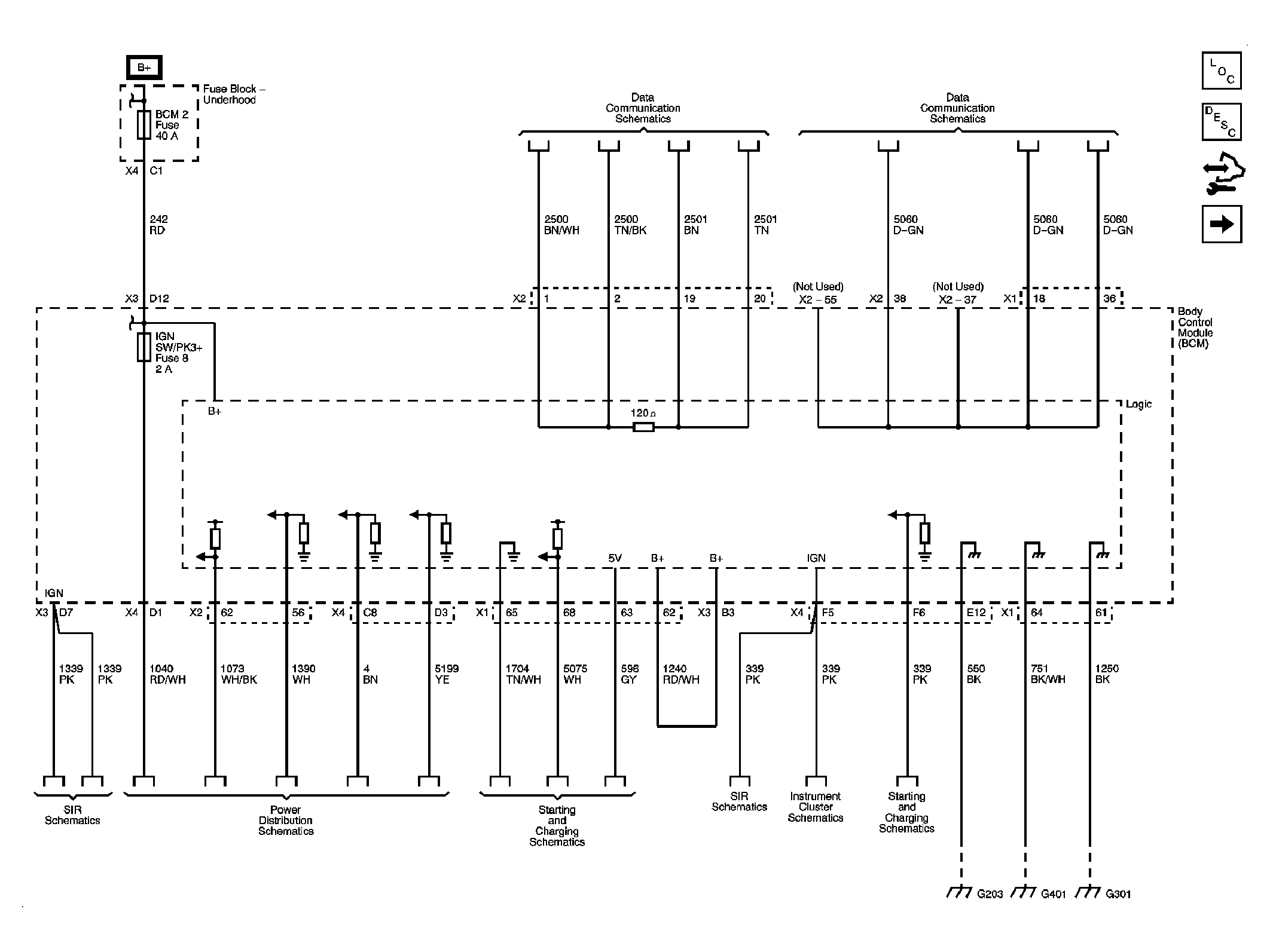

Fig 2: Power, Ground, Communication, References Schematic (2 Of 5)

Courtesy of GENERAL MOTORS CORP.

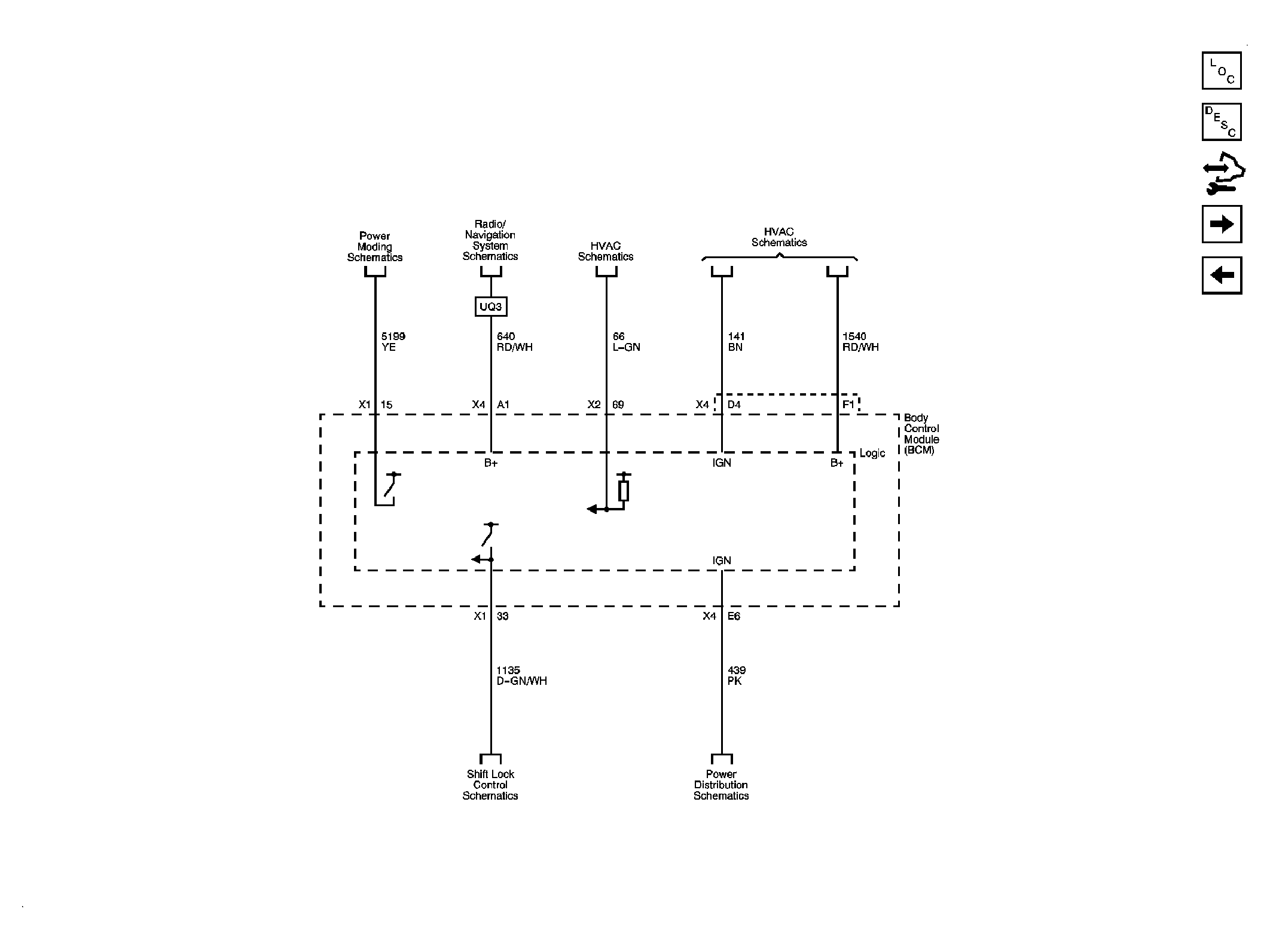

Fig 3: Power, Ground, Communication, References Schematic (3 Of 5)

Courtesy of GENERAL MOTORS CORP.

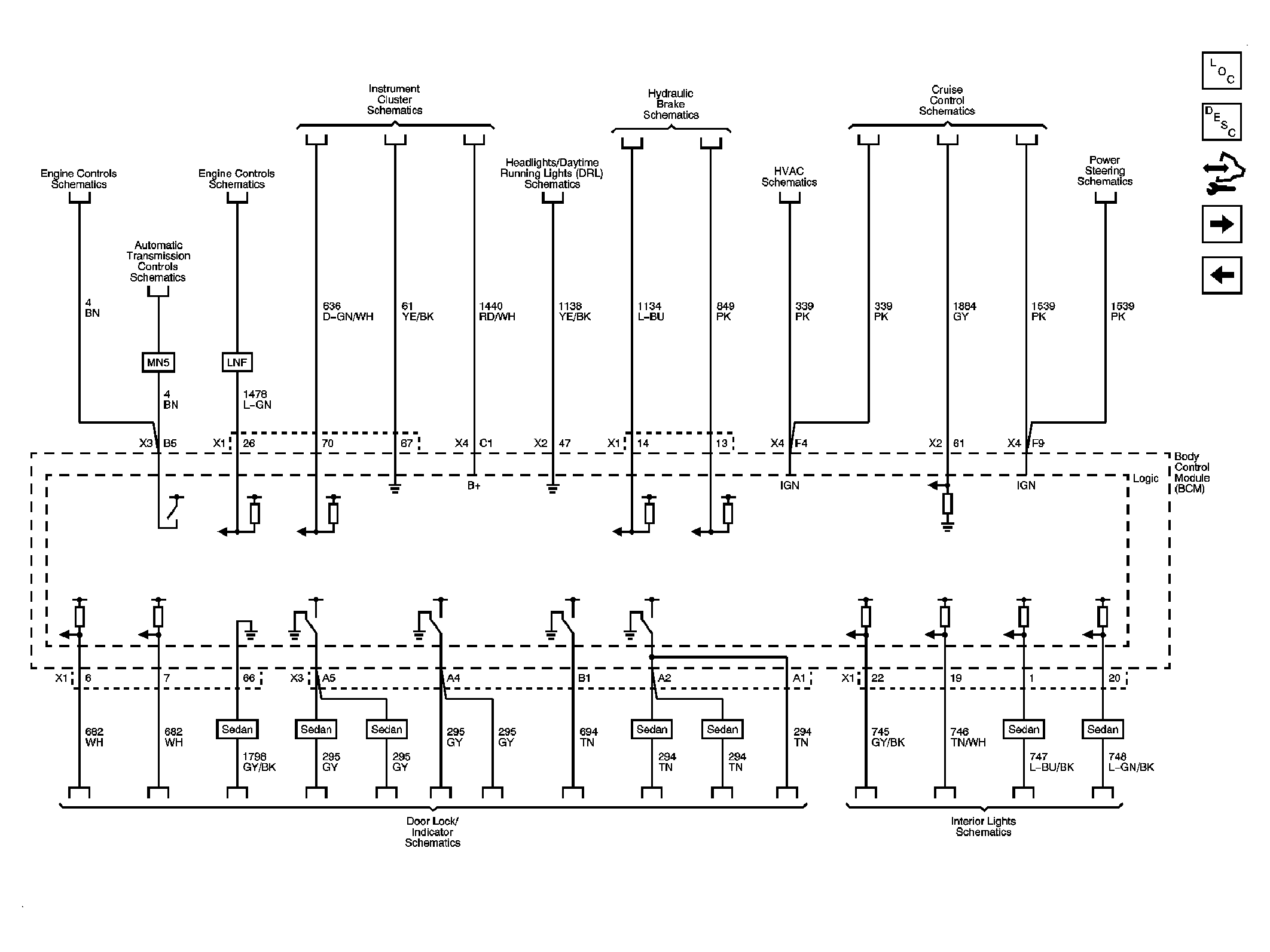

Fig 4: Power, Ground, Communication, References Schematic (4 Of 5)

Courtesy of GENERAL MOTORS CORP.

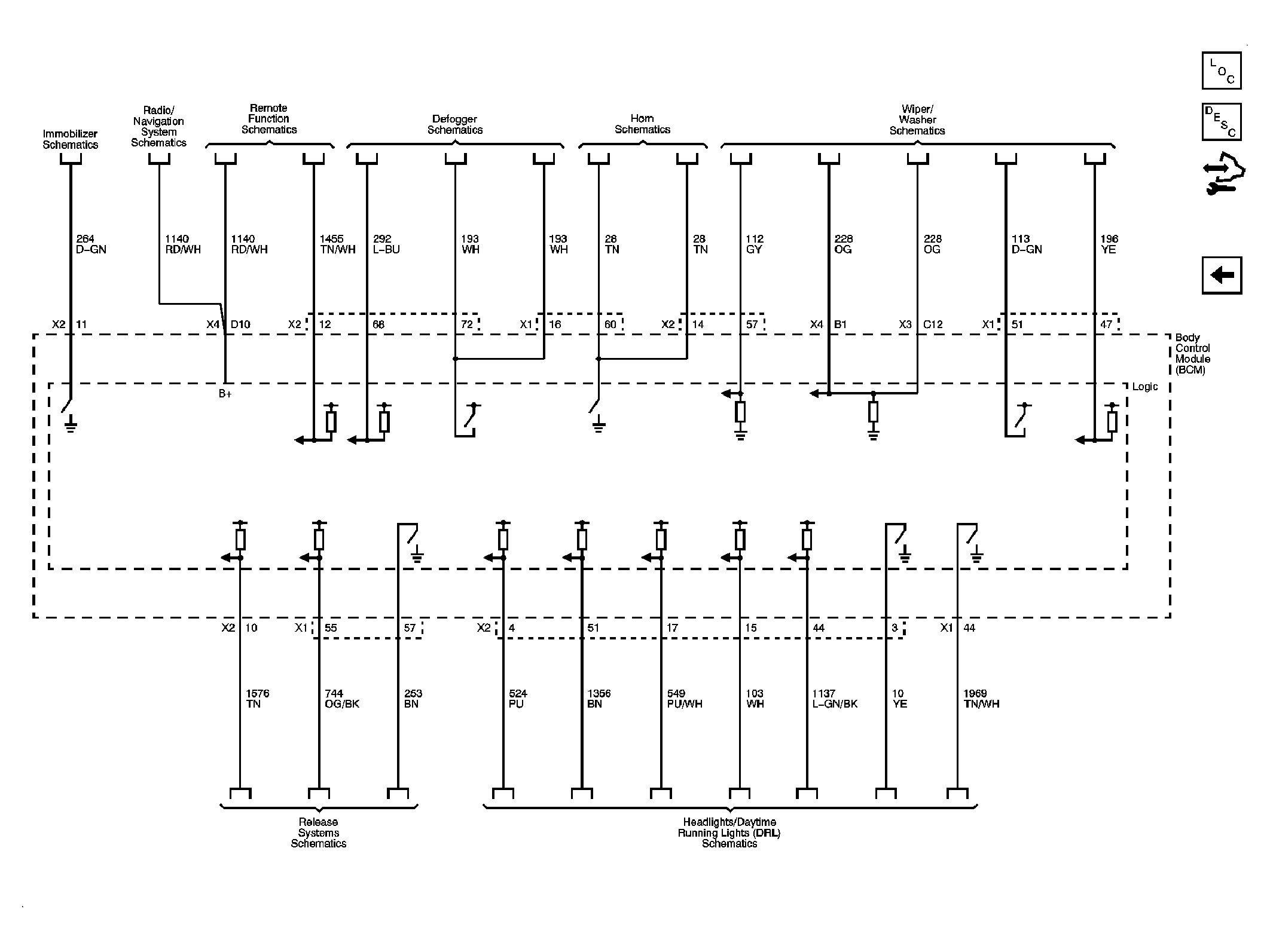

Fig 5: Power, Ground, Communication, References Schematic (5 Of 5)

Courtesy of GENERAL MOTORS CORP.
