Engine Controls Schematics (2.2L)

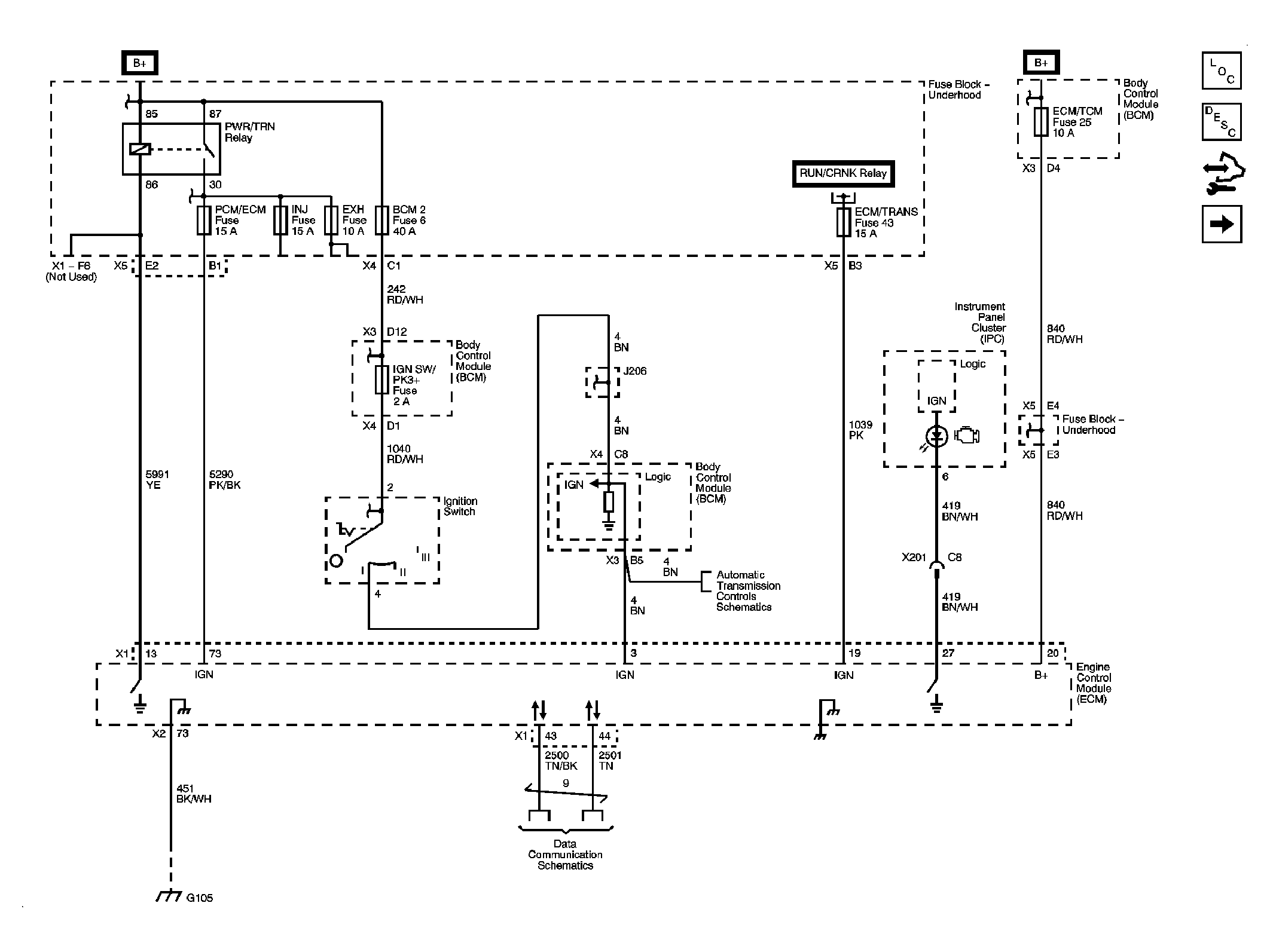

Fig 1: Power, Ground, MIL, Communication Schematic

Courtesy of GENERAL MOTORS CORP.

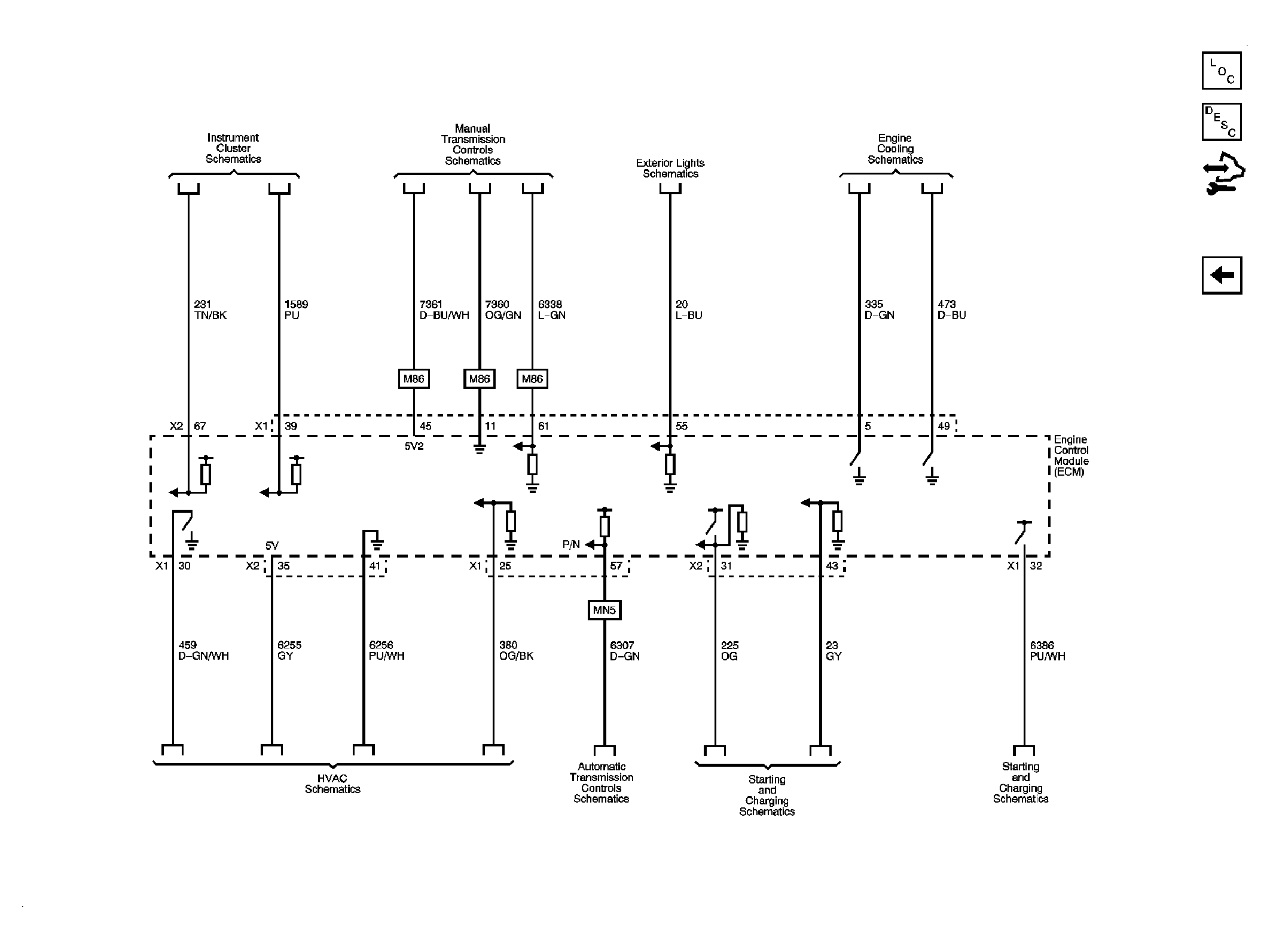

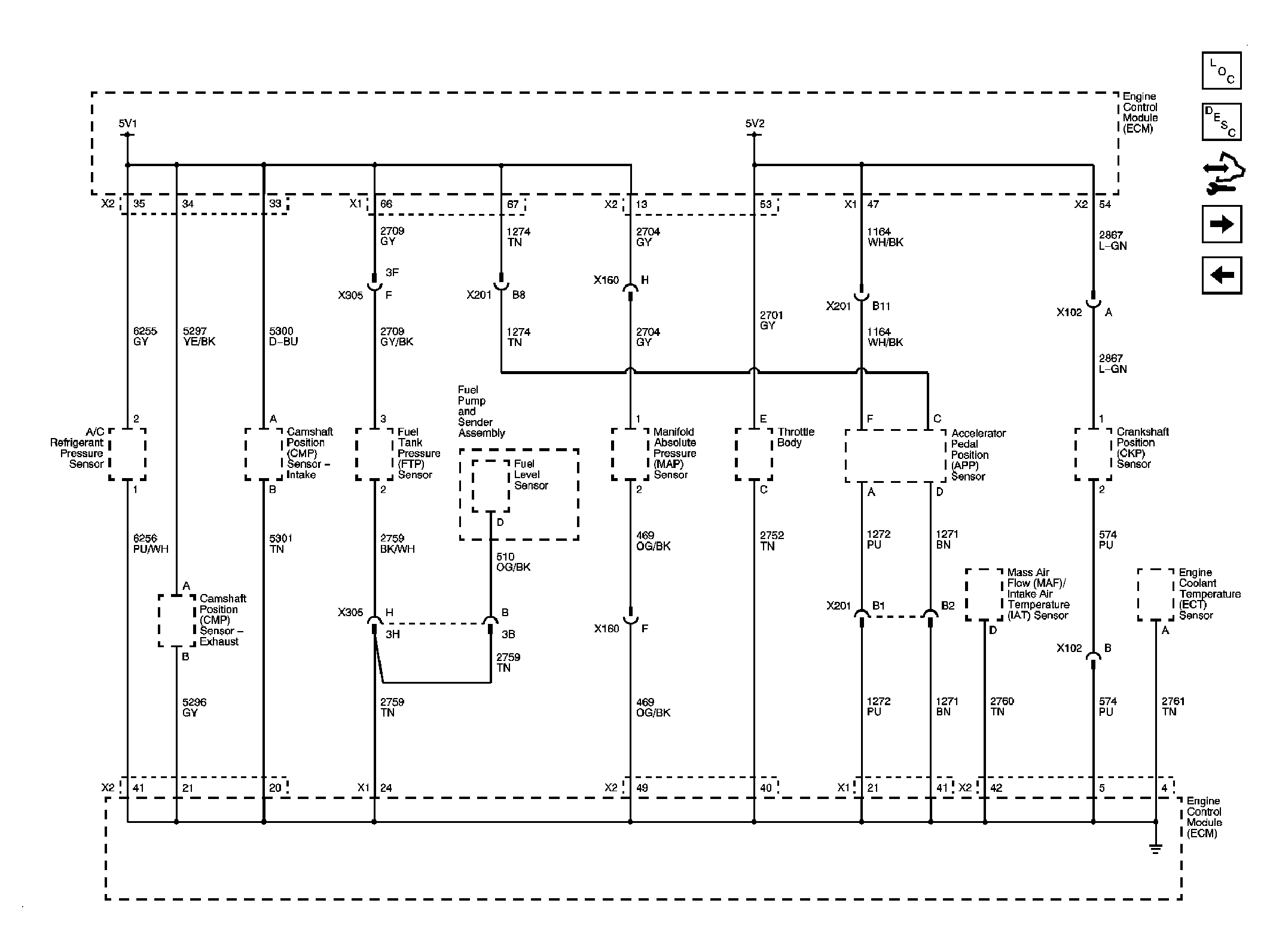

Fig 2: 5-Volt and Low Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

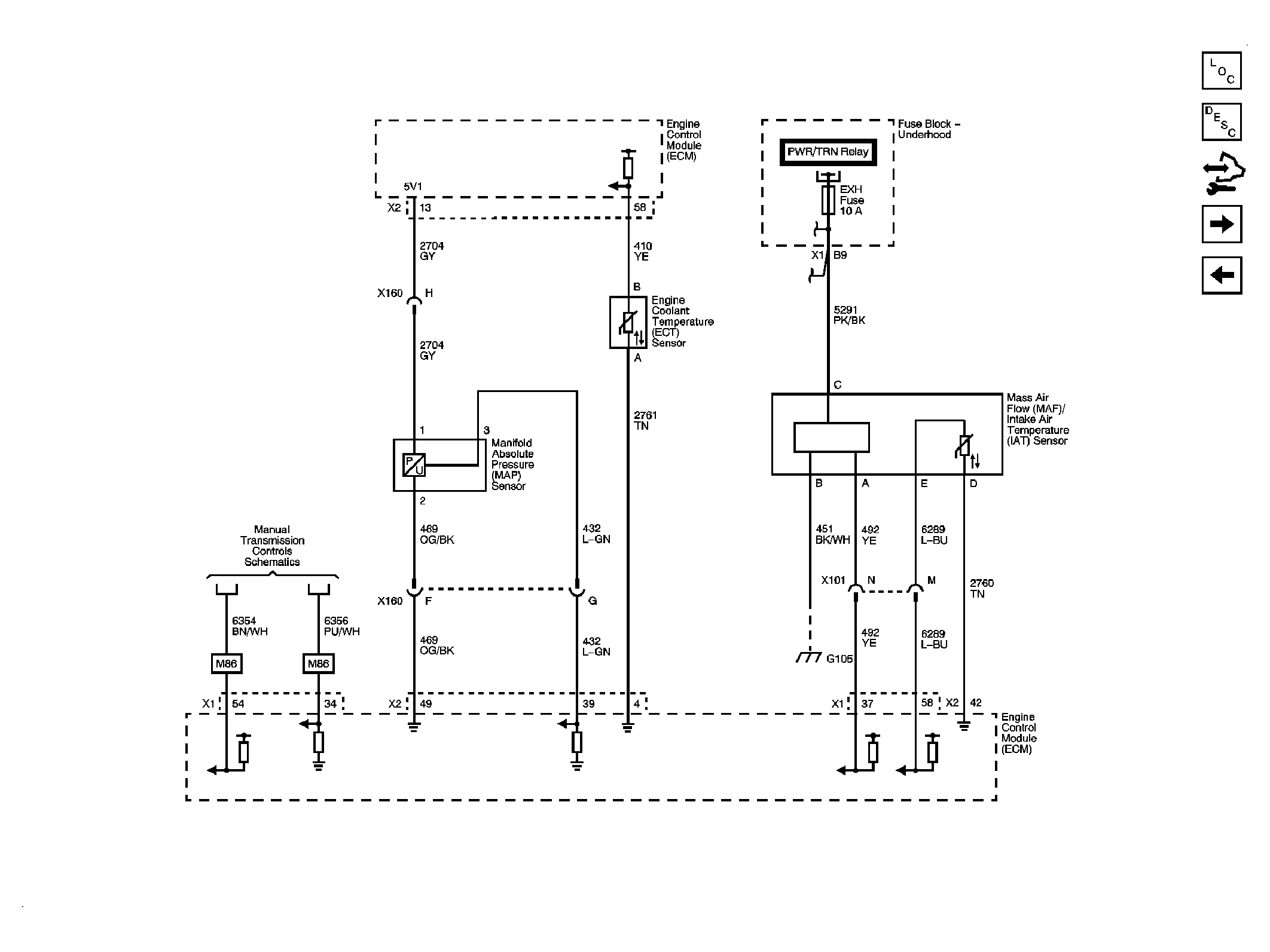

Fig 3: Engine Data Sensors - Pressure, Temperature, MAF/IAT Schematic

Courtesy of GENERAL MOTORS CORP.

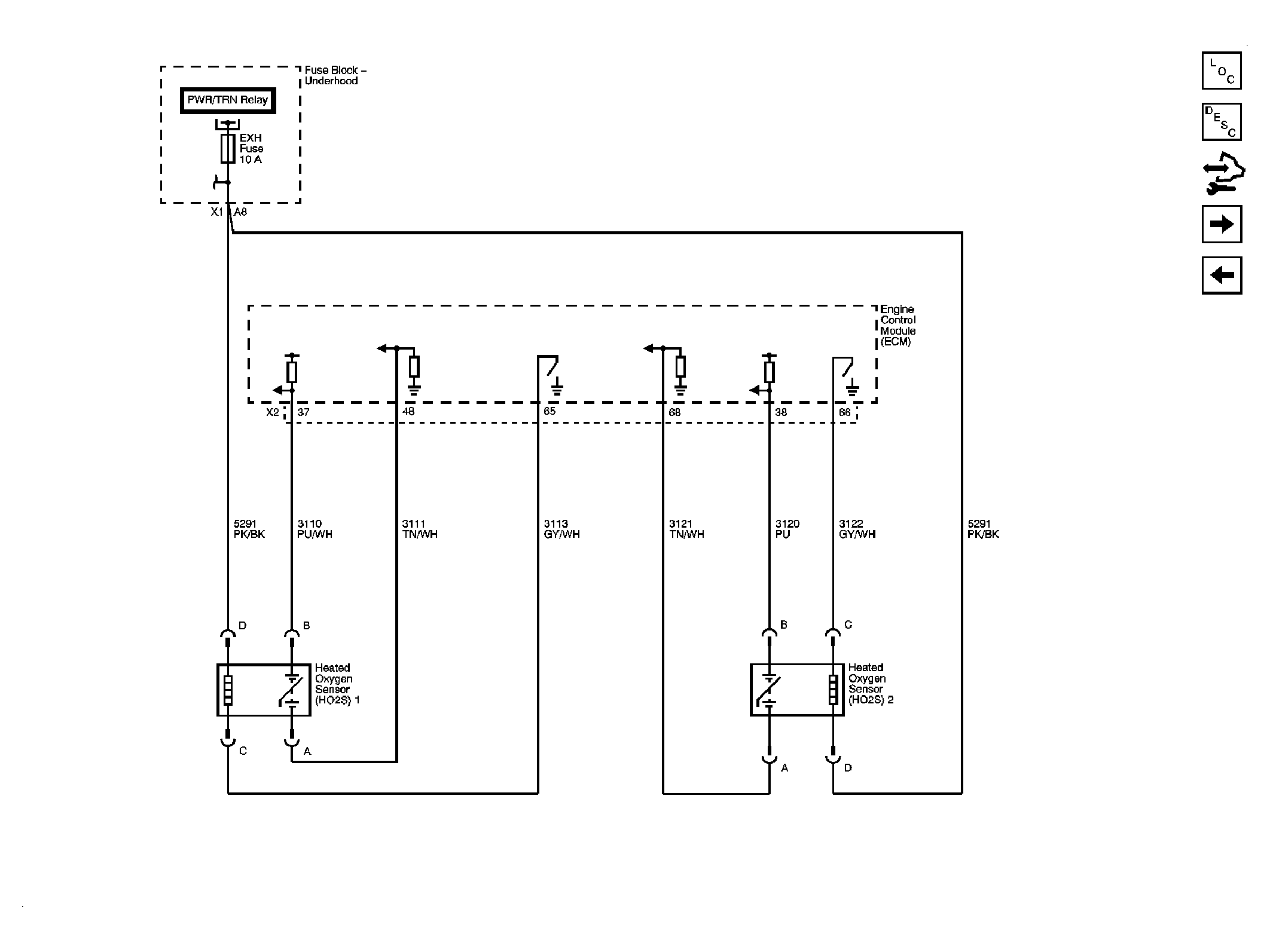

Fig 4: Engine Data Sensors - Heated Oxygen Sensors (HO2S) Schematic

Courtesy of GENERAL MOTORS CORP.

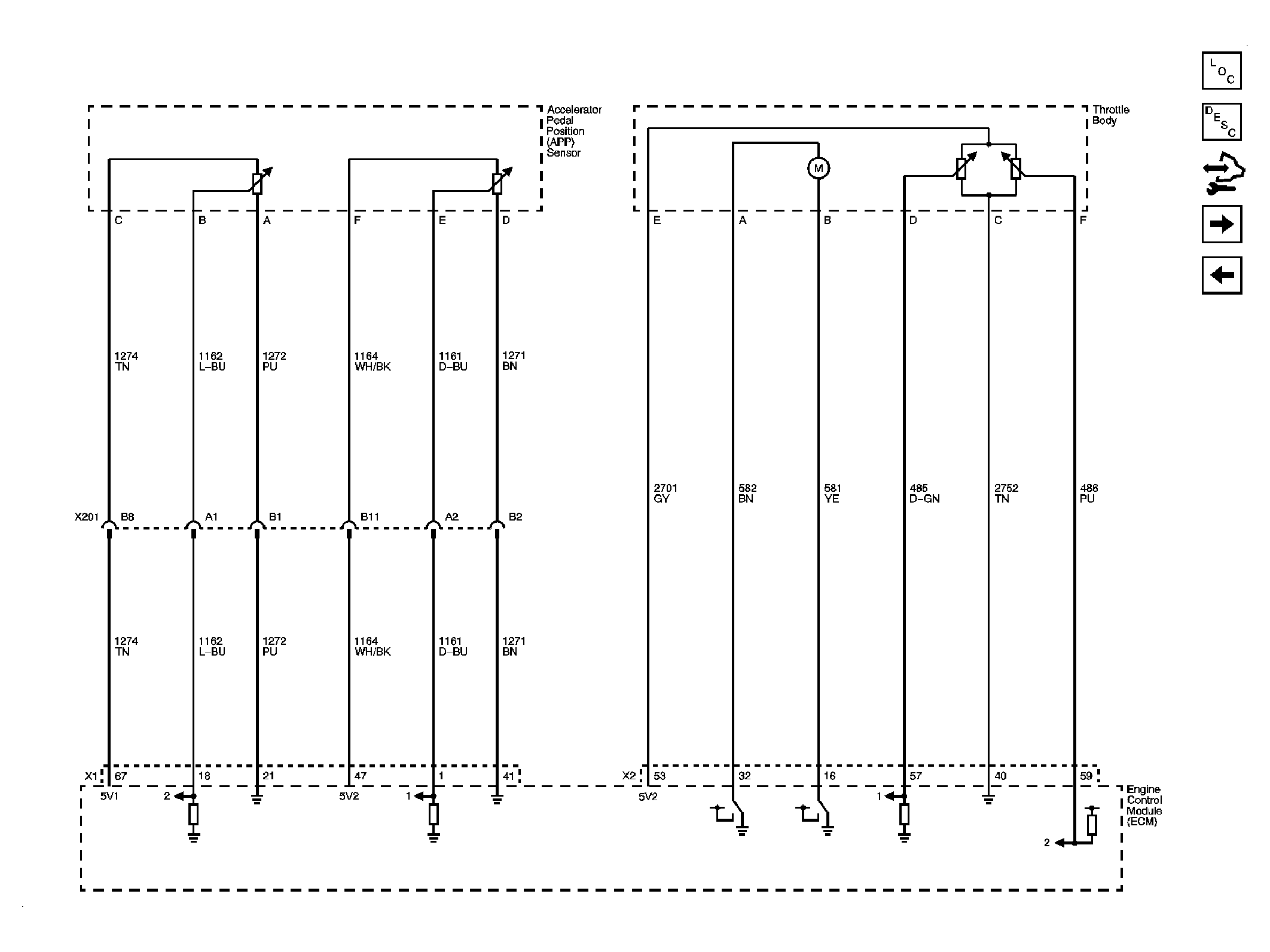

Fig 5: Engine Data Sensors - APP, TAC Schematic

Courtesy of GENERAL MOTORS CORP.

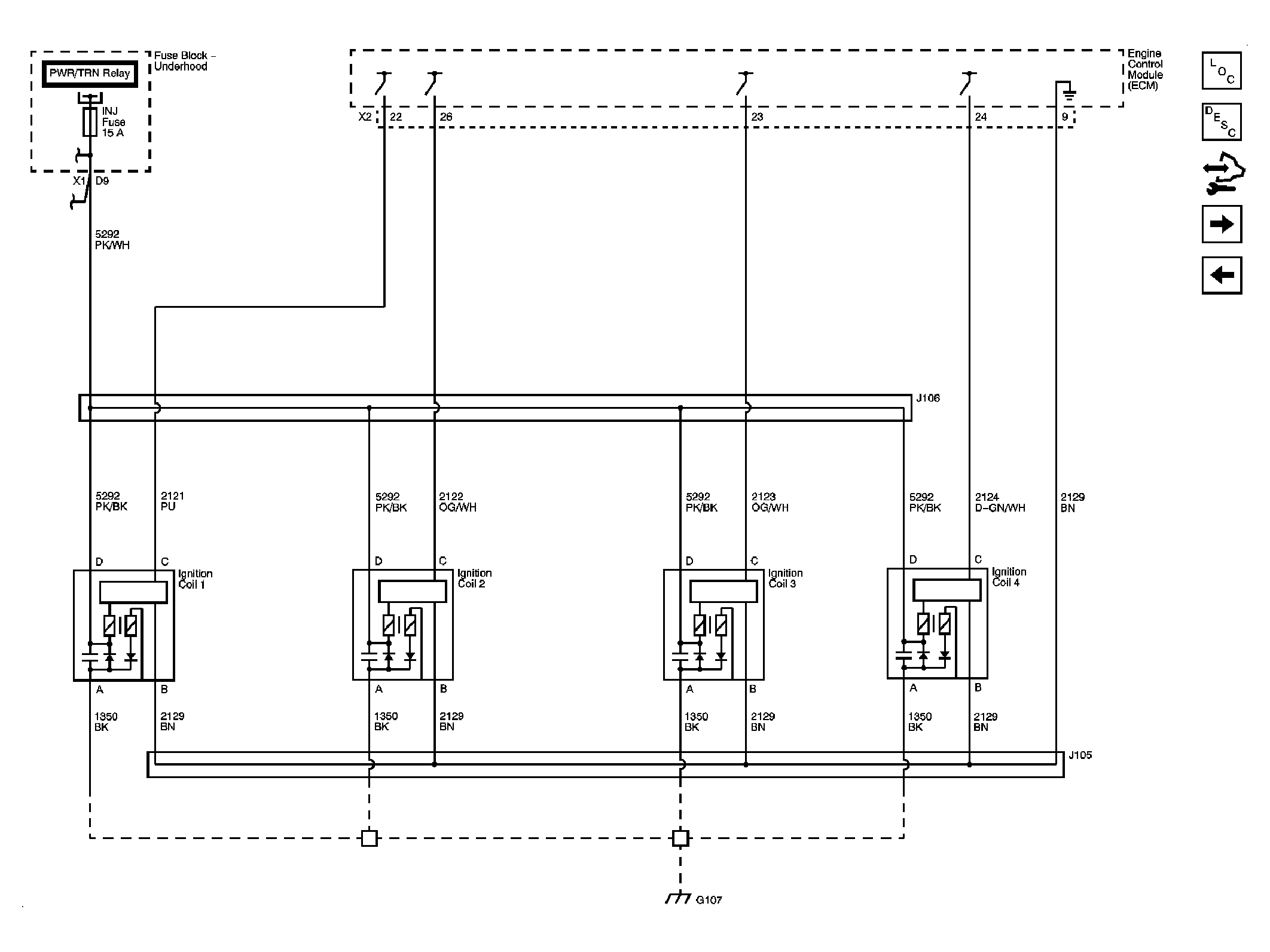

Fig 6: Ignition Controls - Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

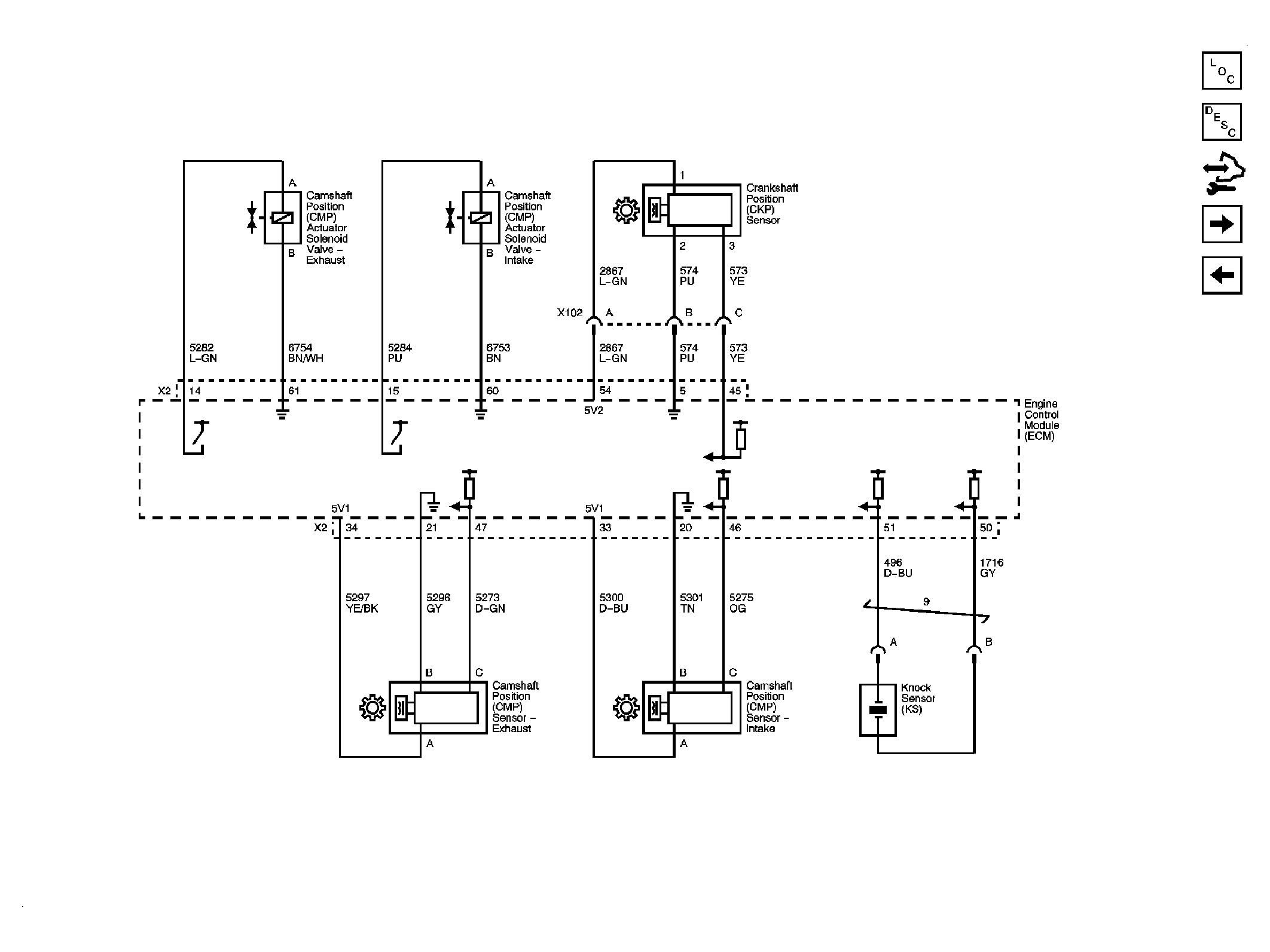

Fig 7: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

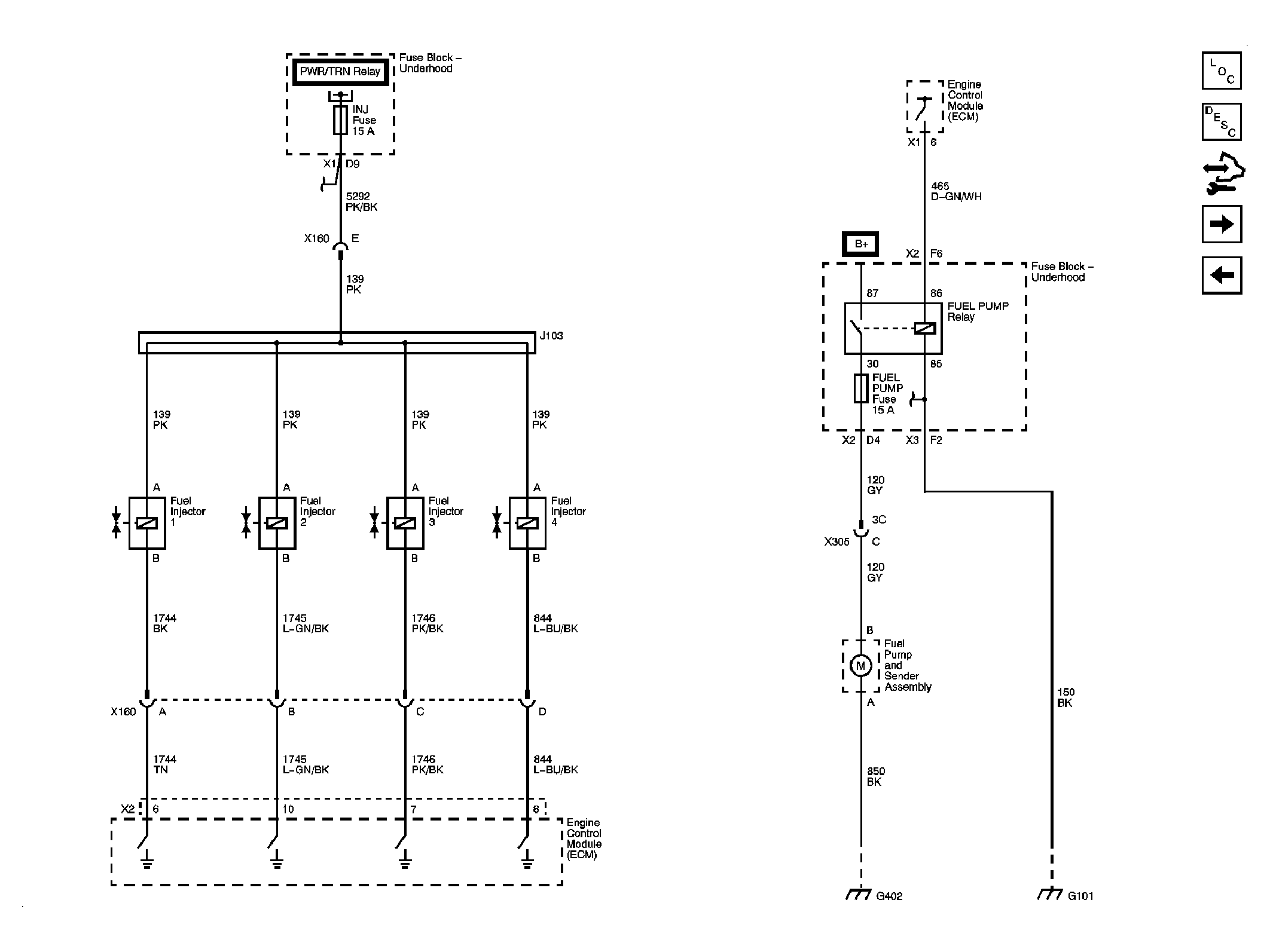

Fig 8: Fuel Controls, Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

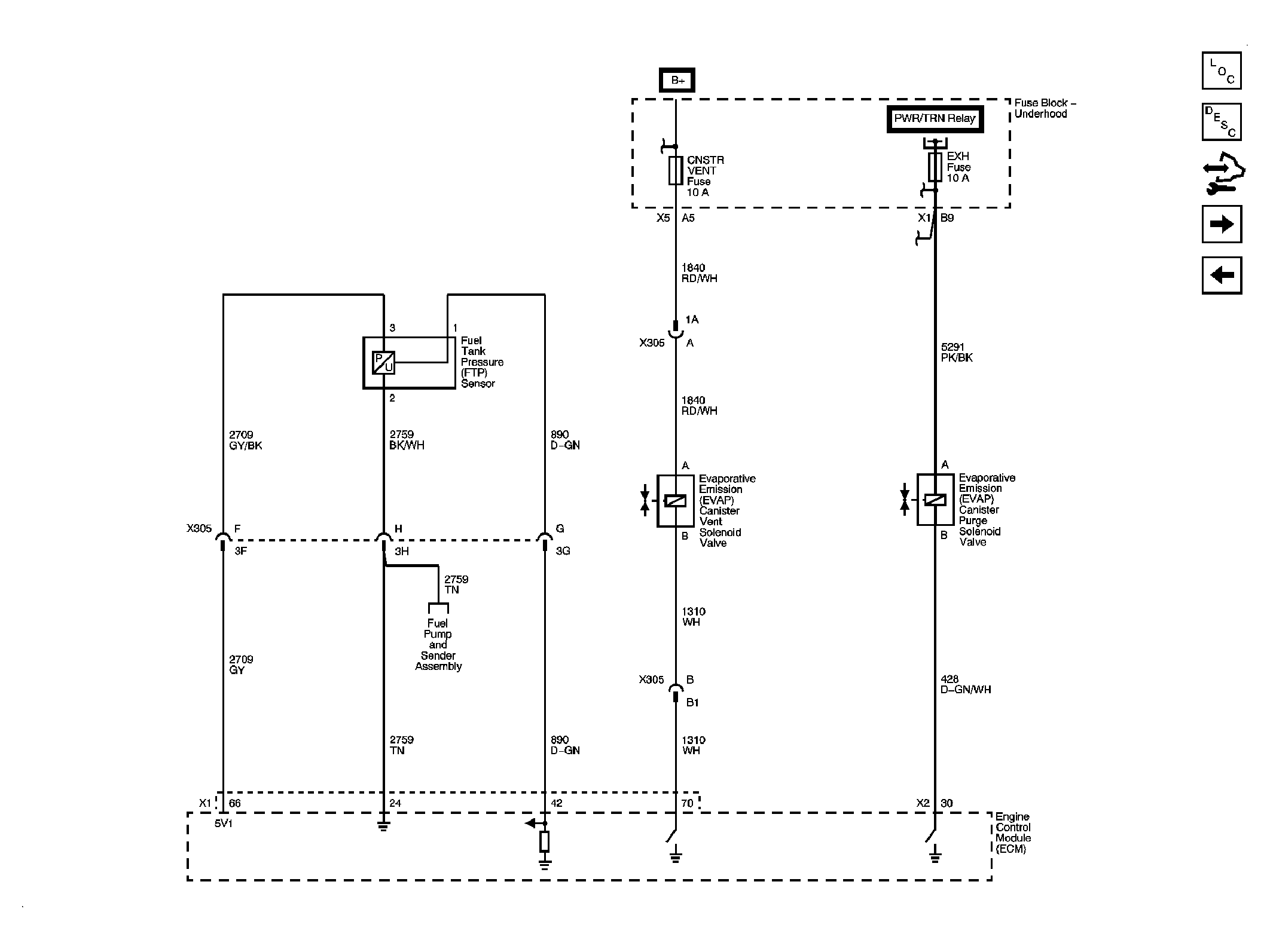

Fig 9: EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

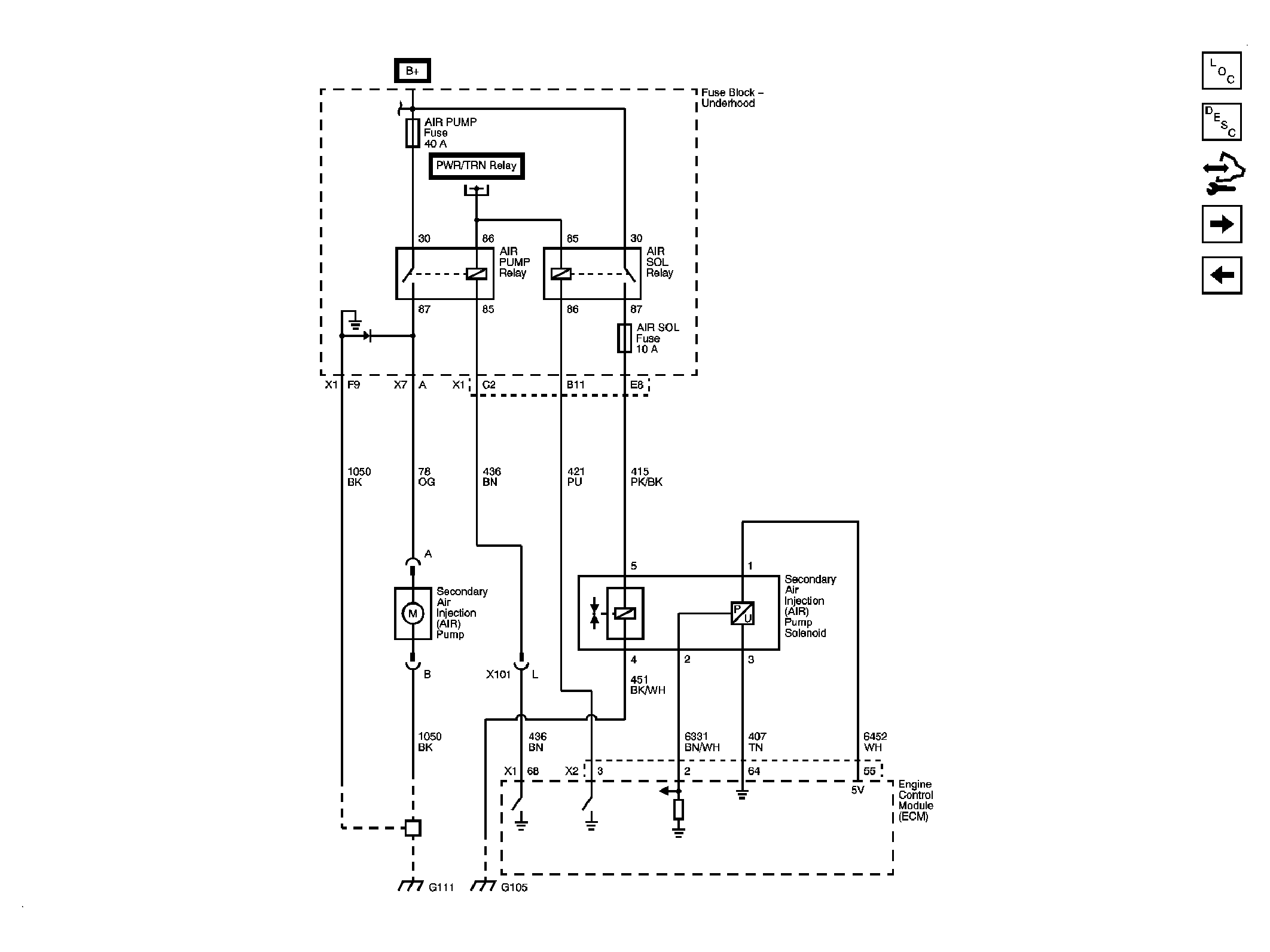

Fig 11: Secondary Air Injection (AIR) System - NU6 Schematic

Courtesy of GENERAL MOTORS CORP.
