System Diagram




Component Connector End Views

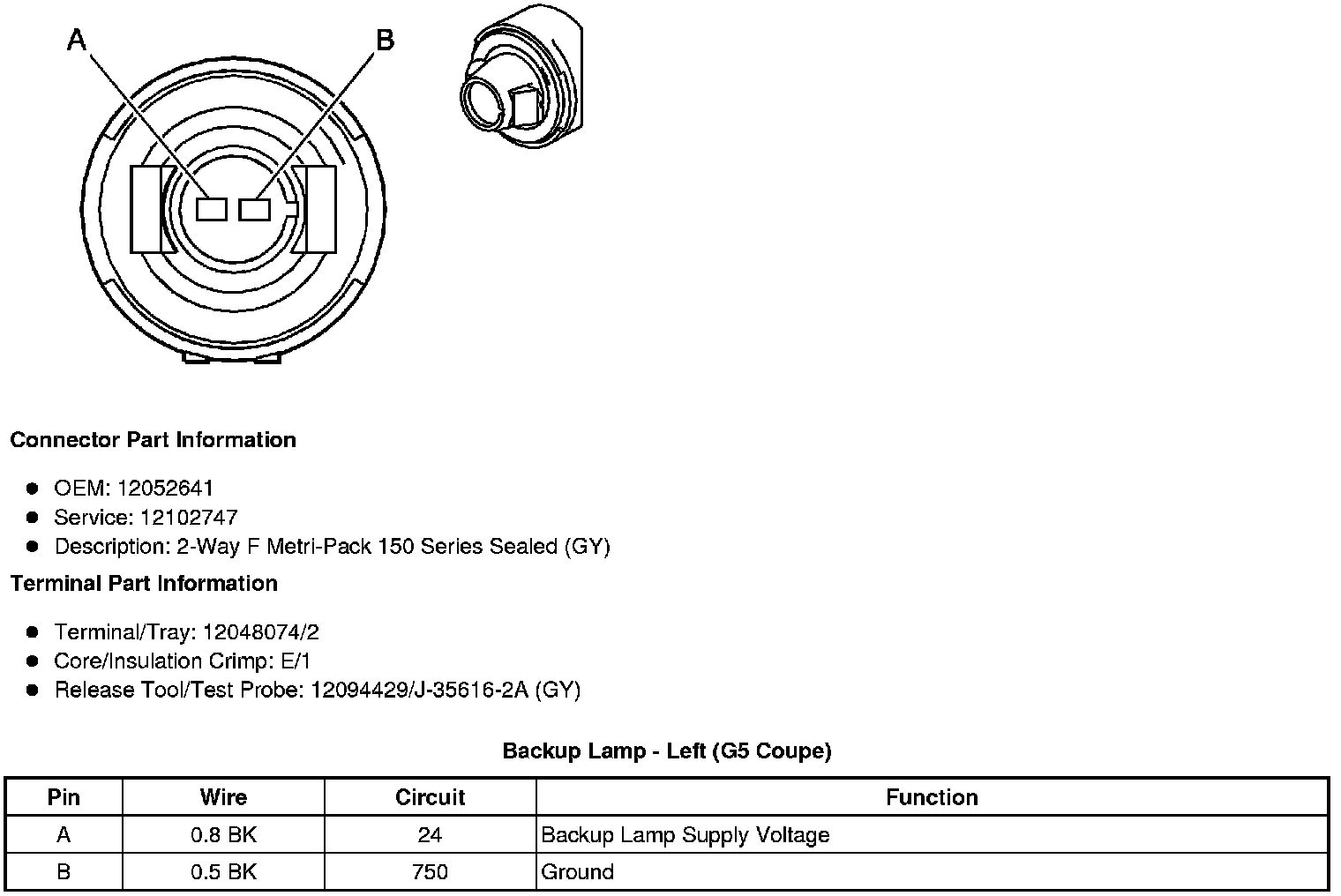

Backup Lamp - Left (G5 Coupe)





Backup Lamp - Left (Sedan)





Backup Lamp - Right (G5 Coupe)





Backup Lamp - Right (Sedan)
