Fuel Injector




Component Connector End Views

Fuel Injector 1 (LAP)

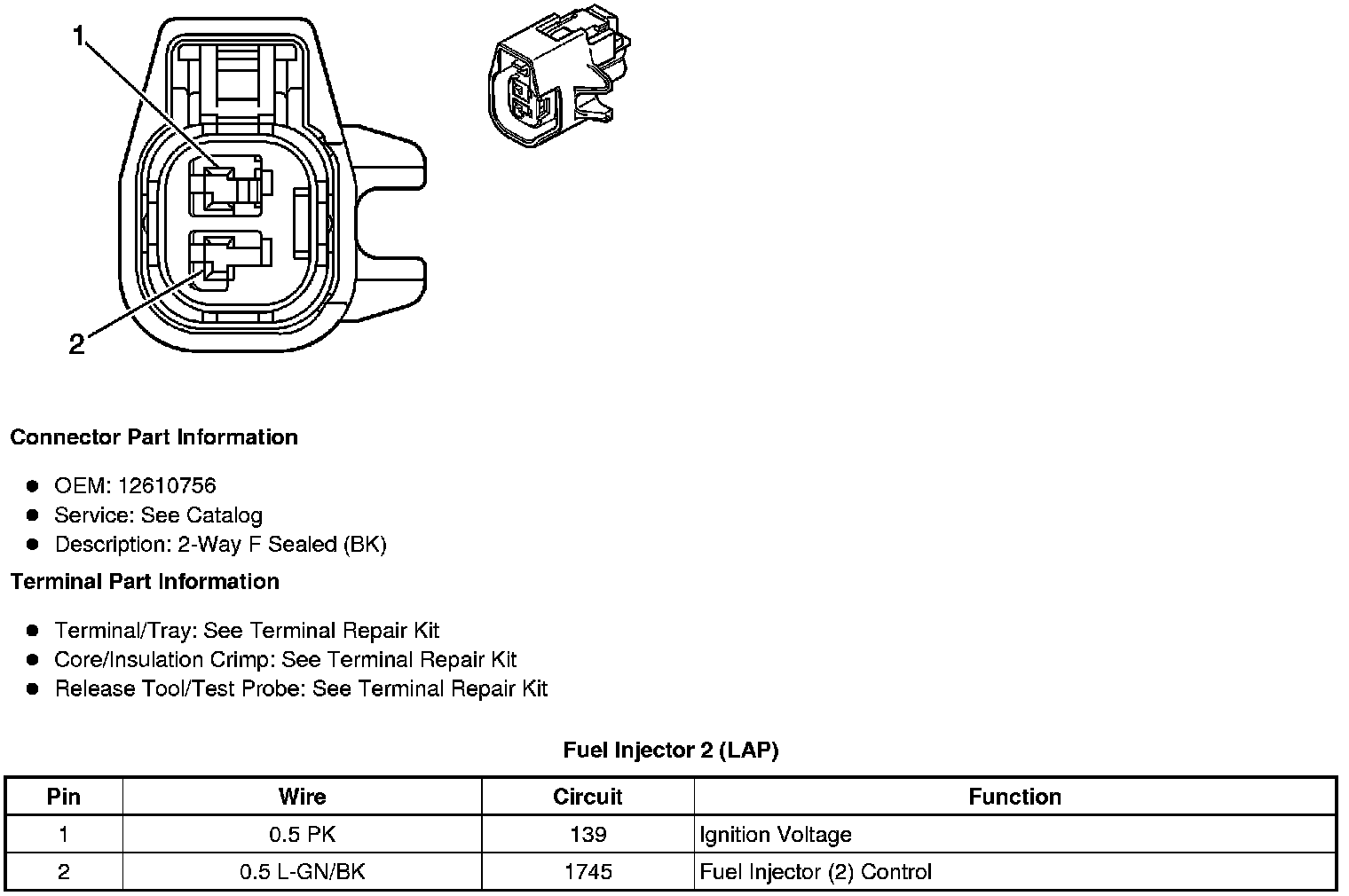

Fuel Injector 2 (LAP)

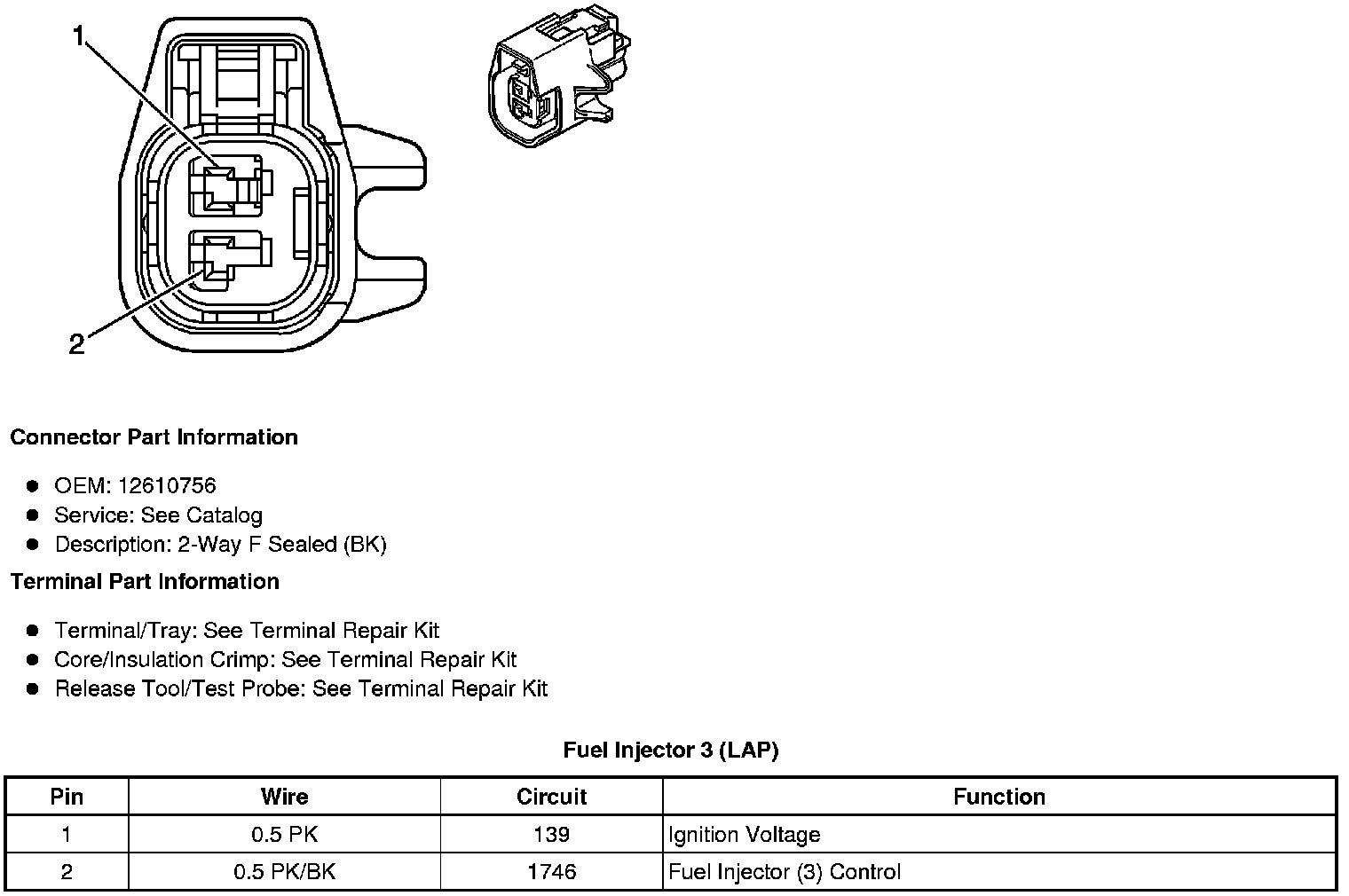

Fuel Injector 3 (LAP)

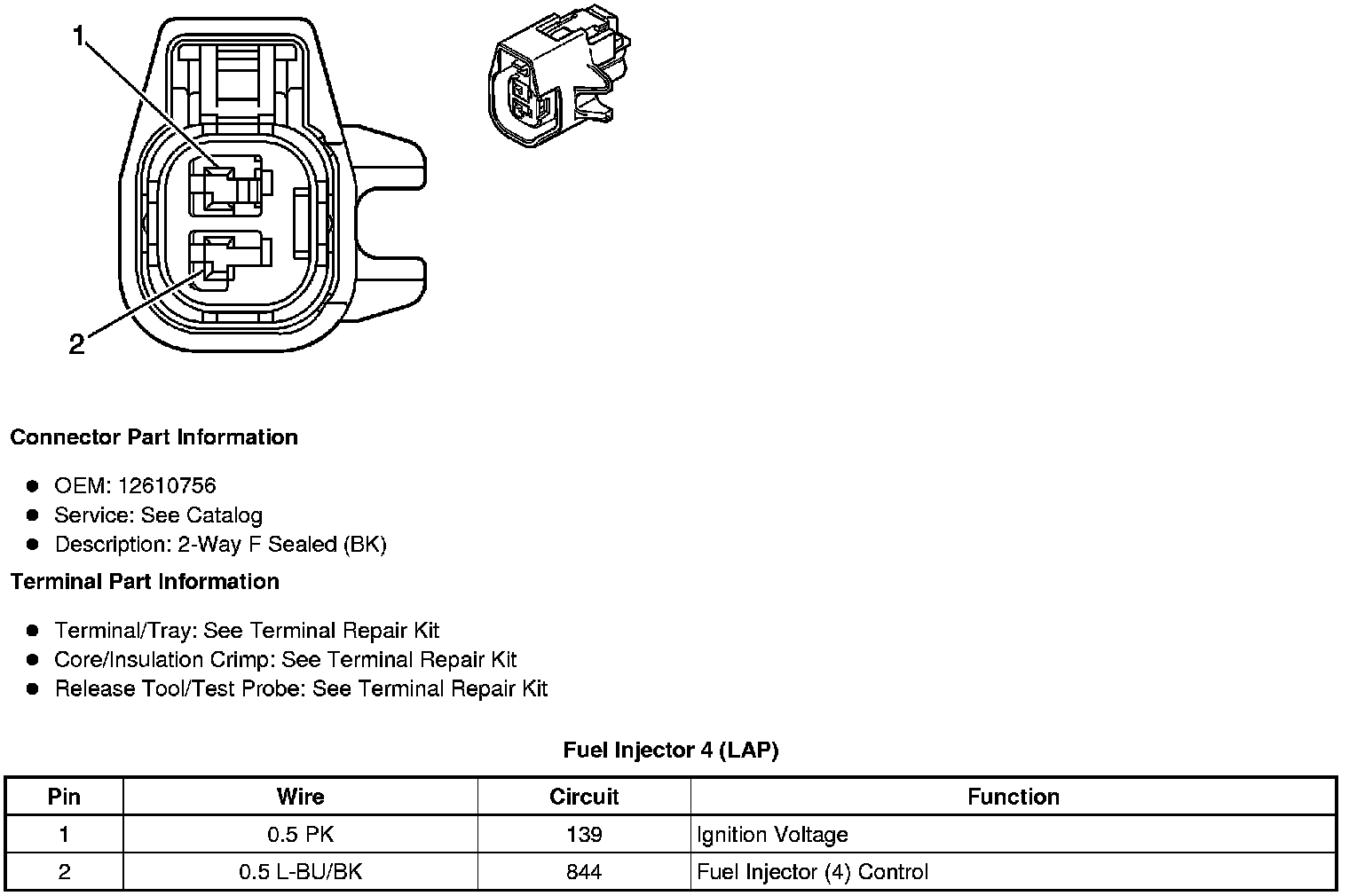

Fuel Injector 4 (LAP)
