System Diagram




Component Connector End Views

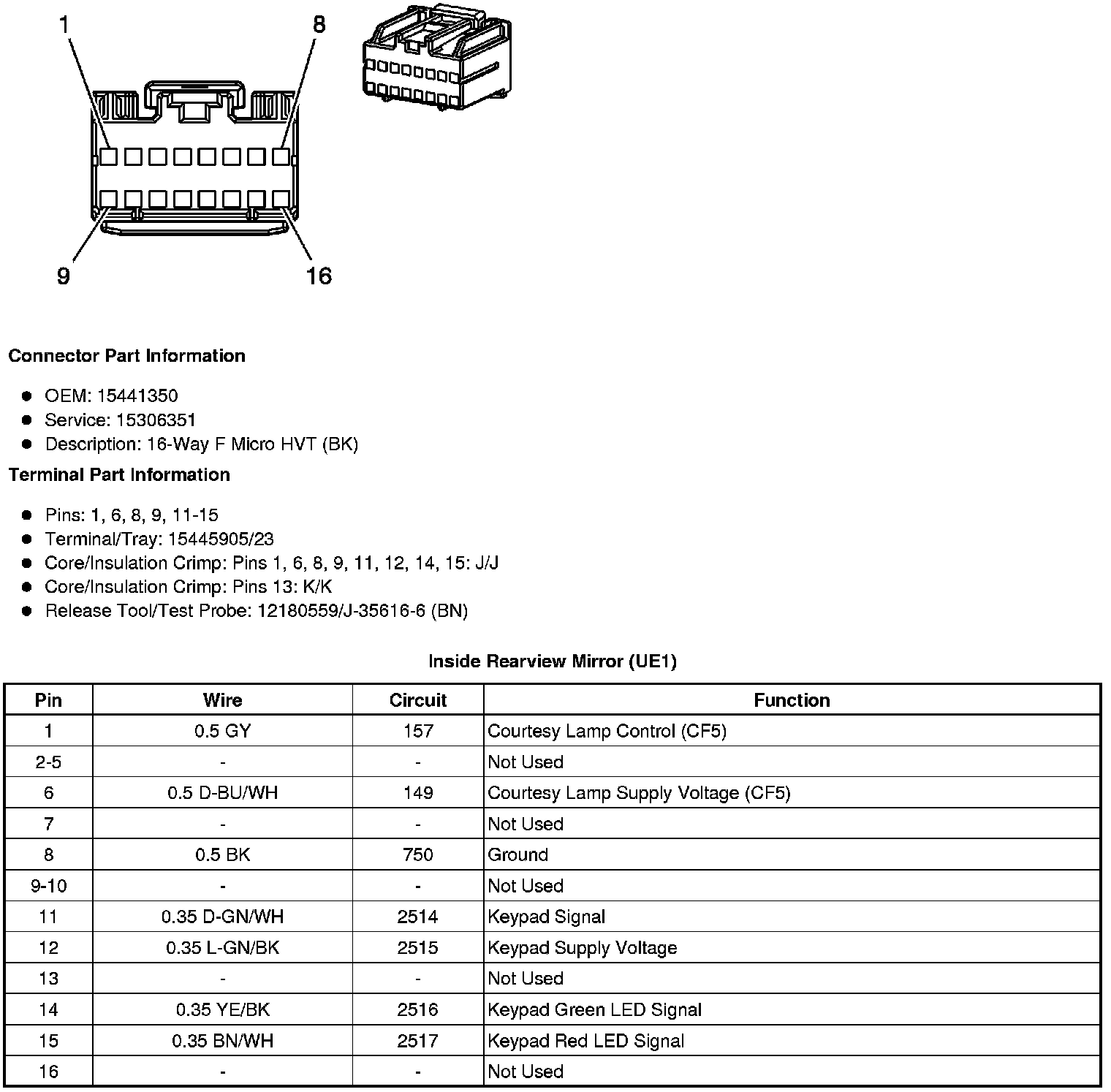

Inside Rearview Mirror (UE1)





Inside Rearview Mirror (without UE1)





Outside Rearview Mirror - Driver (DG7)





Outside Rearview Mirror - Passenger (DG7)
