Steering Control Module




Component Connector End Views

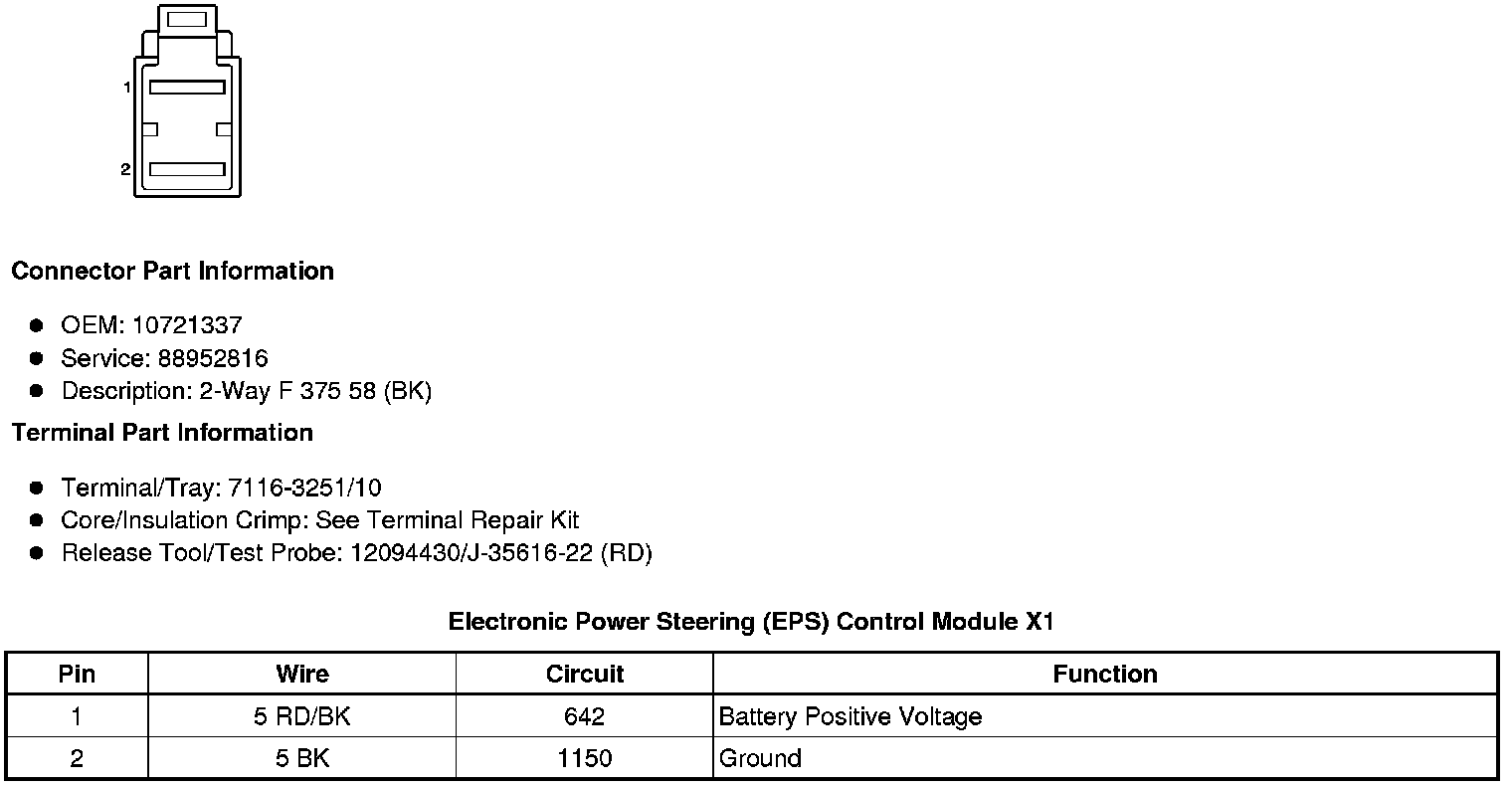

Electronic Power Steering (EPS) Control Module X1

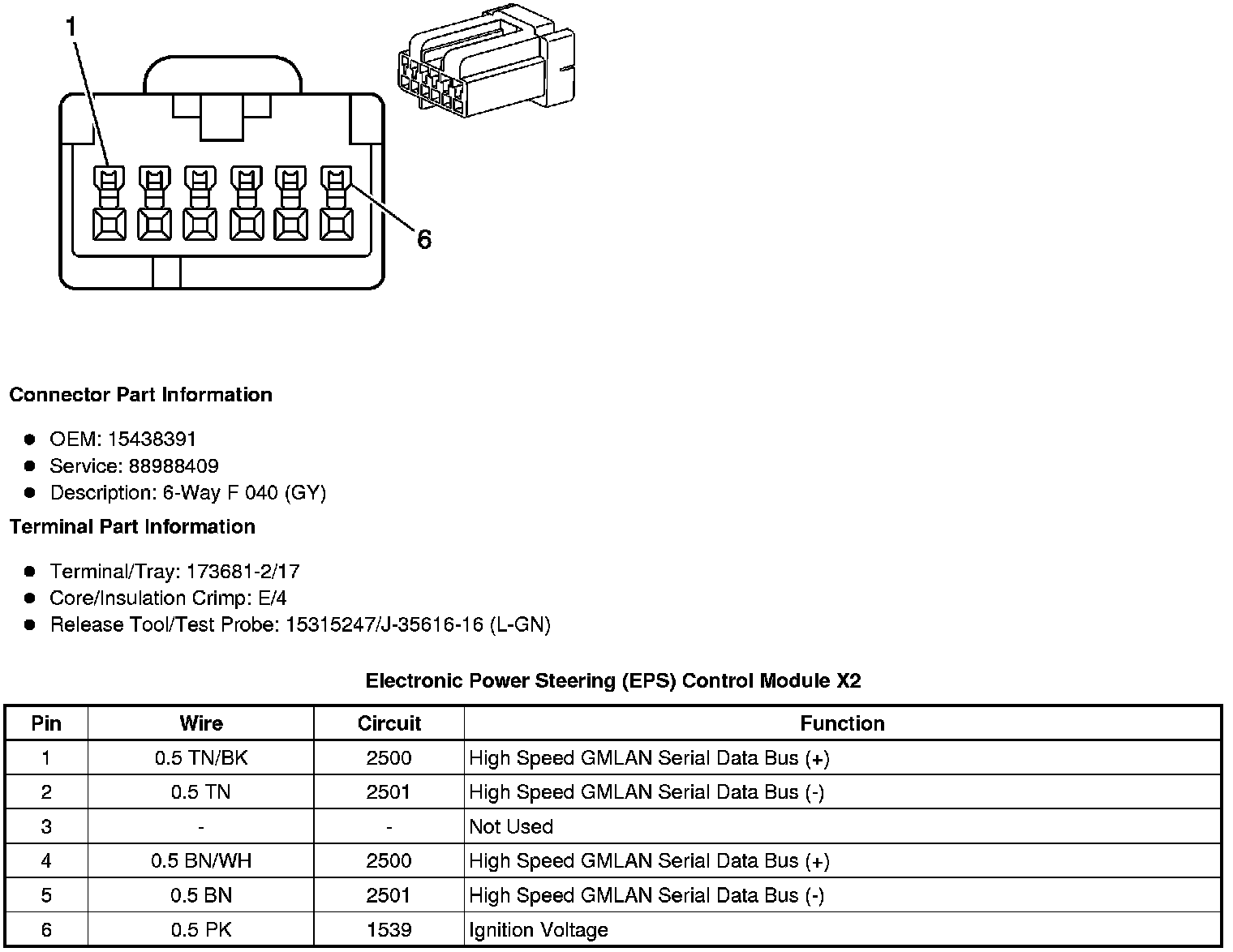

Electronic Power Steering (EPS) Control Module X2

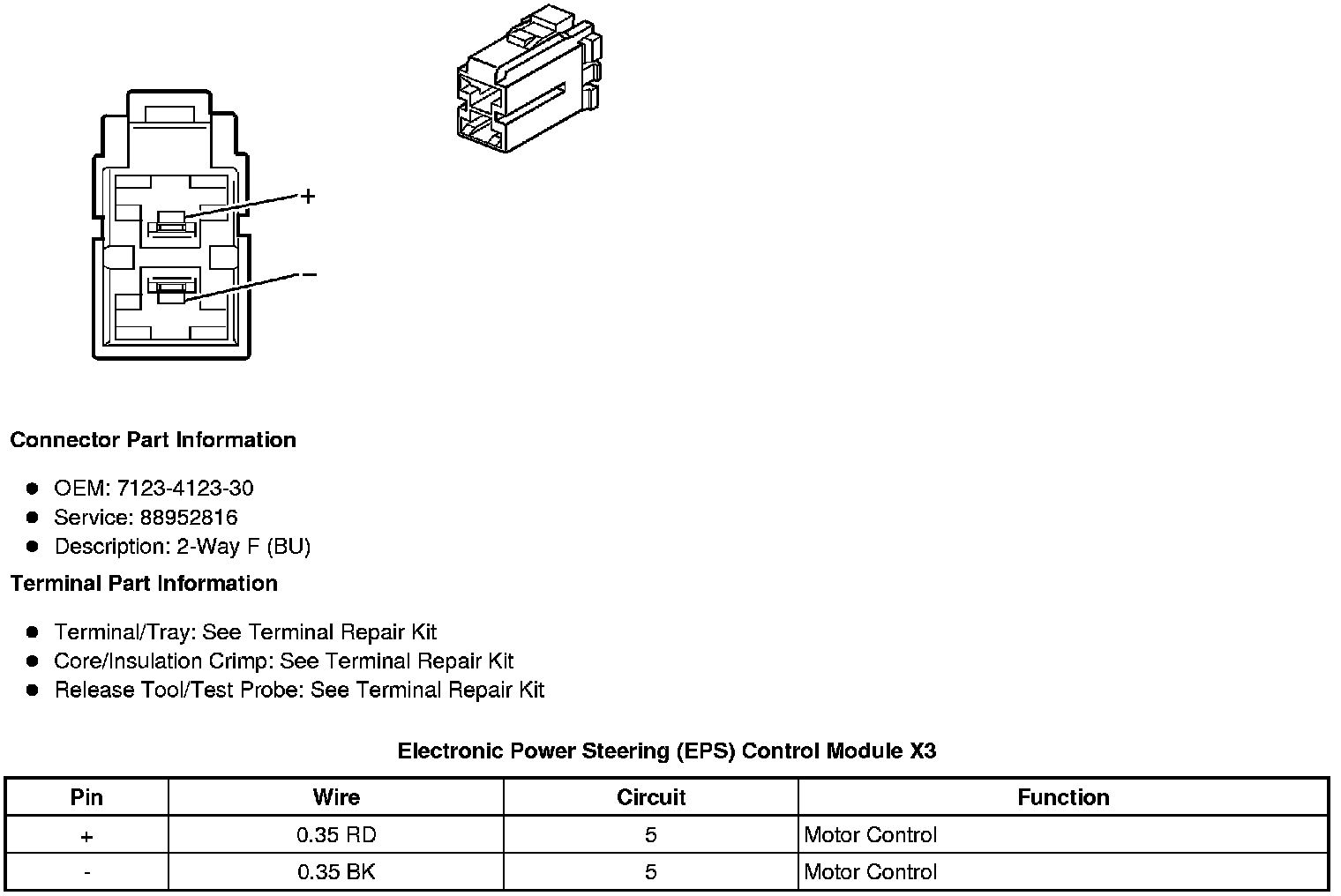

Electronic Power Steering (EPS) Control Module X3
