Steering Mounted Controls Transmitter




Component Connector End Views

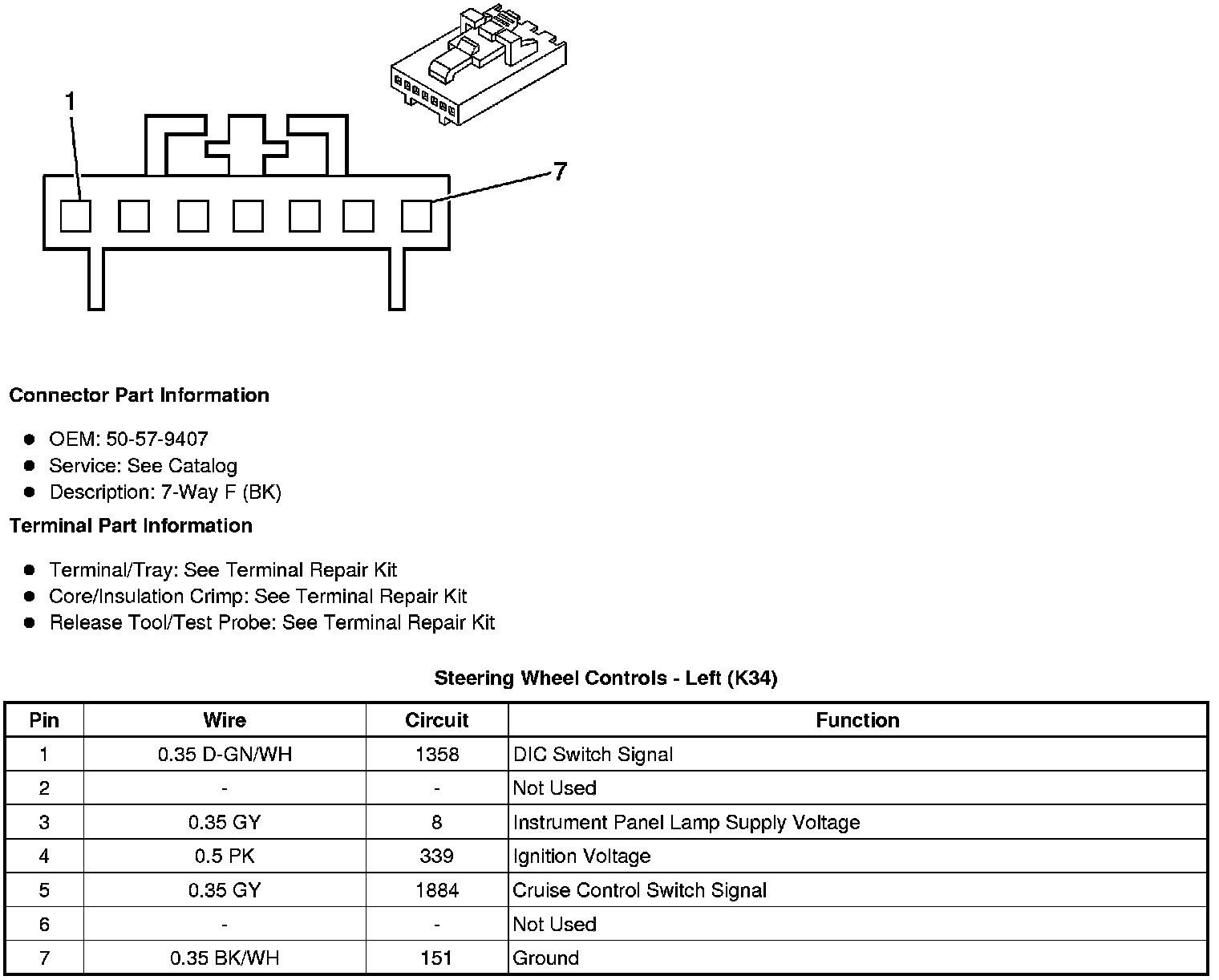

Steering Wheel Controls - Left (K34)

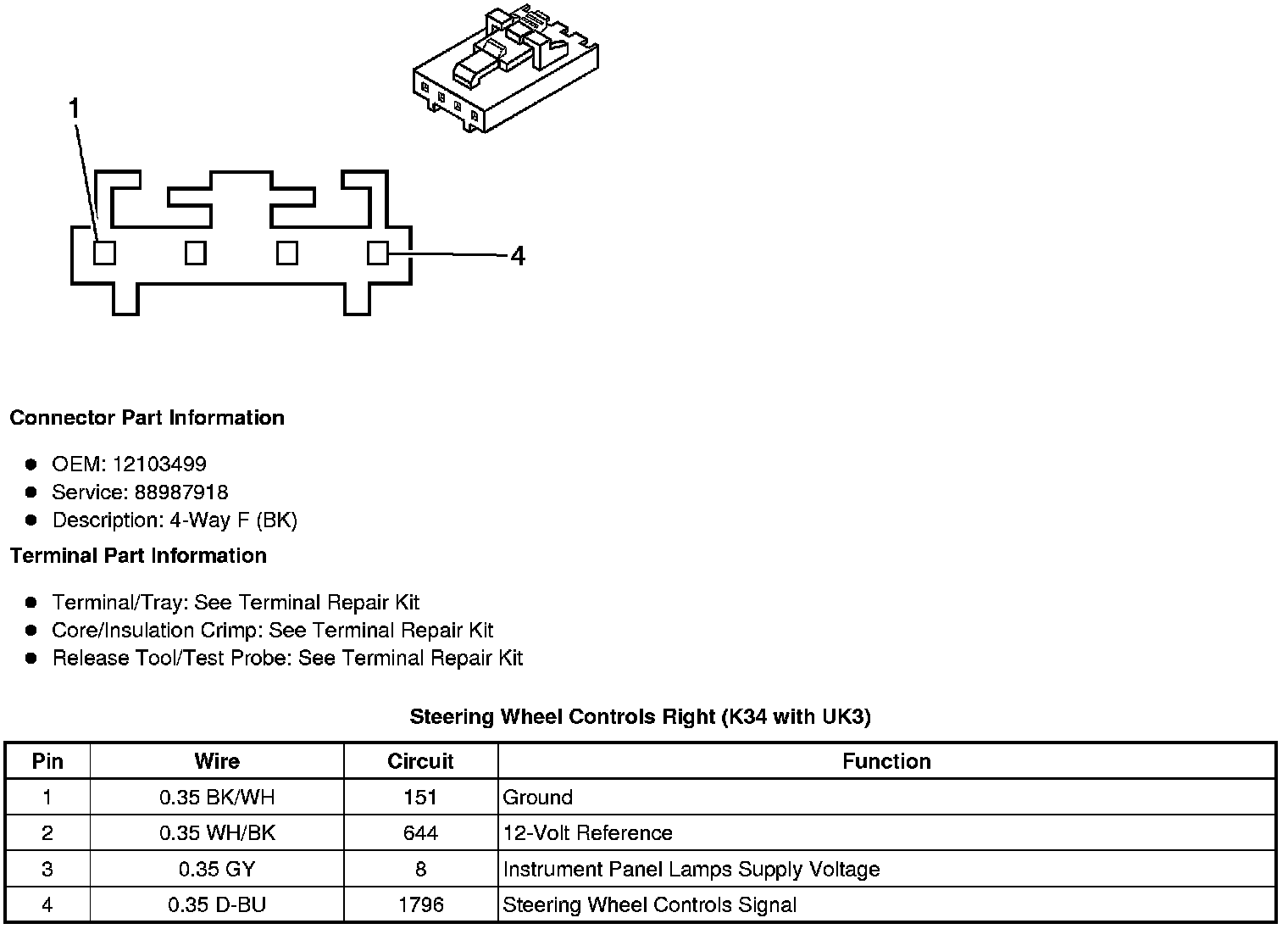

Steering Wheel Controls Right (K34 with UK3)
