Oxygen Sensor: Diagrams




Component Connector End Views

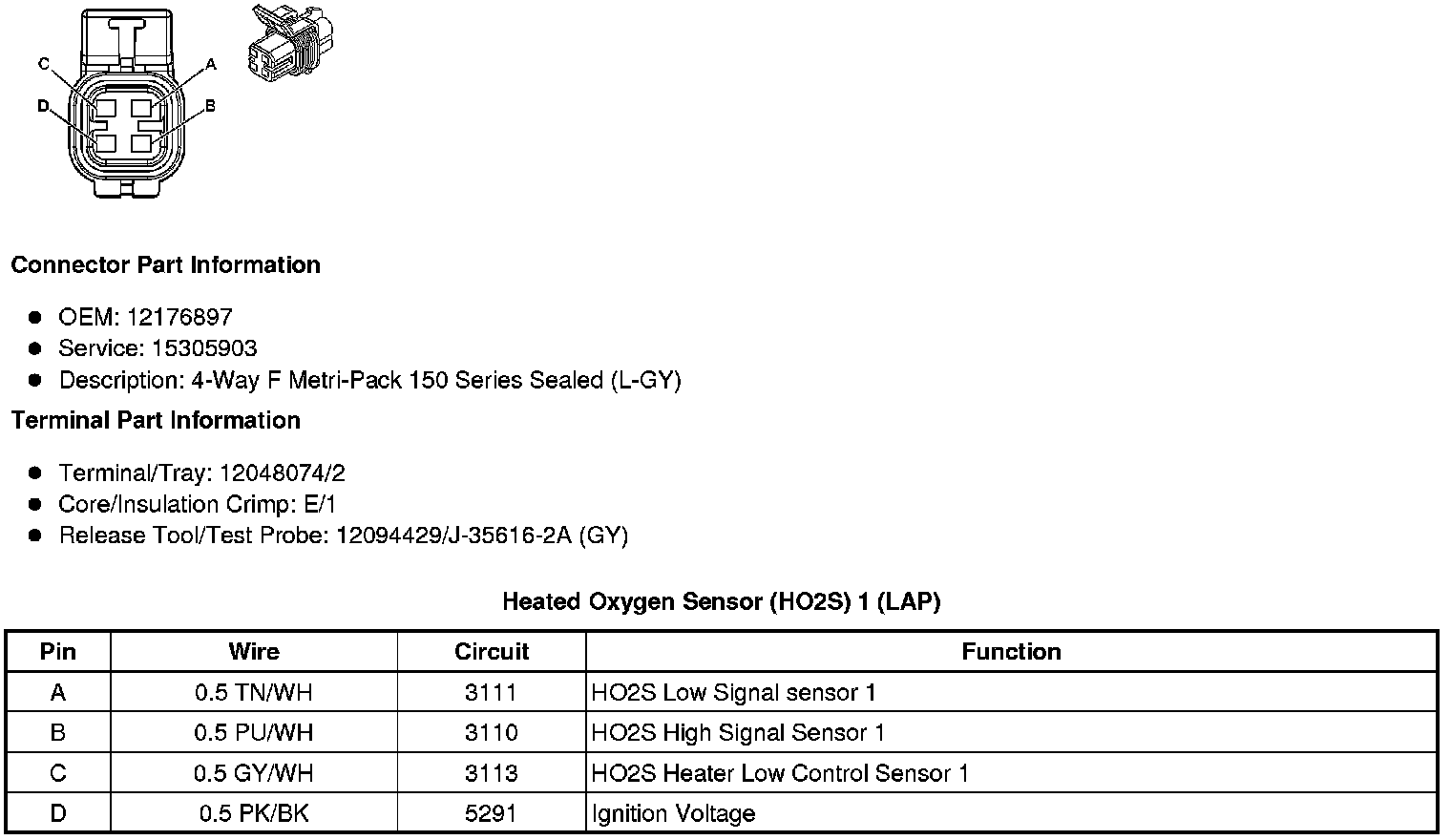

Heated Oxygen Sensor (HO2S) 1 (LAP)

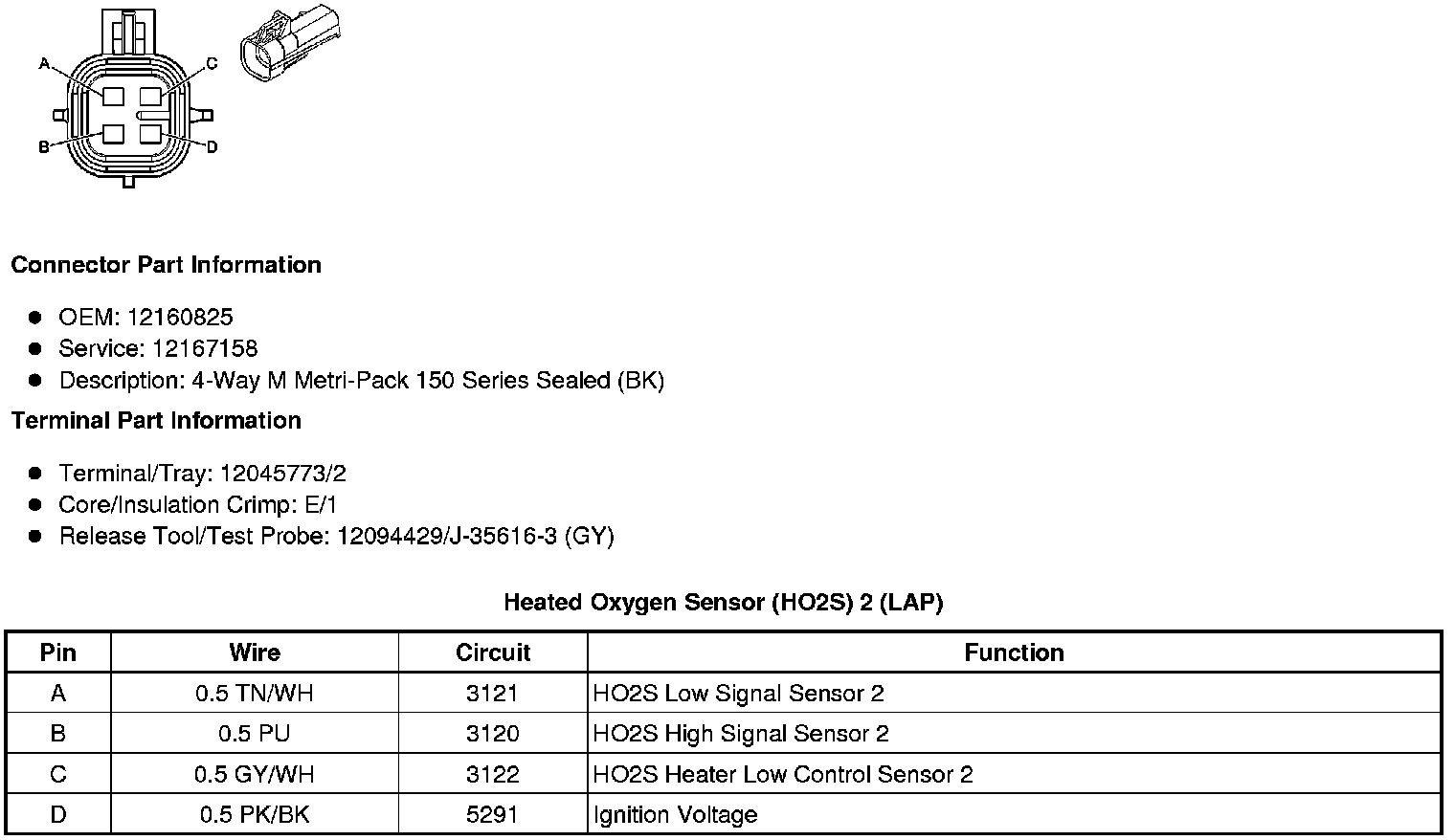

Heated Oxygen Sensor (HO2S) 2 (LAP)
