Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

Front and Rear Suspension Components




1 - Wheel Speed Sensor (WSS) - Right Front
2 - Wheel Speed Sensor (WSS) - Right Rear
3 - Wheel Speed Sensor (WSS) - Left Rear
4 - Wheel Speed Sensors (WSS) - Left Front

Left Side Frame and Underbody Components




1 - Evaporative Emission (EVAP) Canister
2 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3 - Fuel Tank Filler Neck

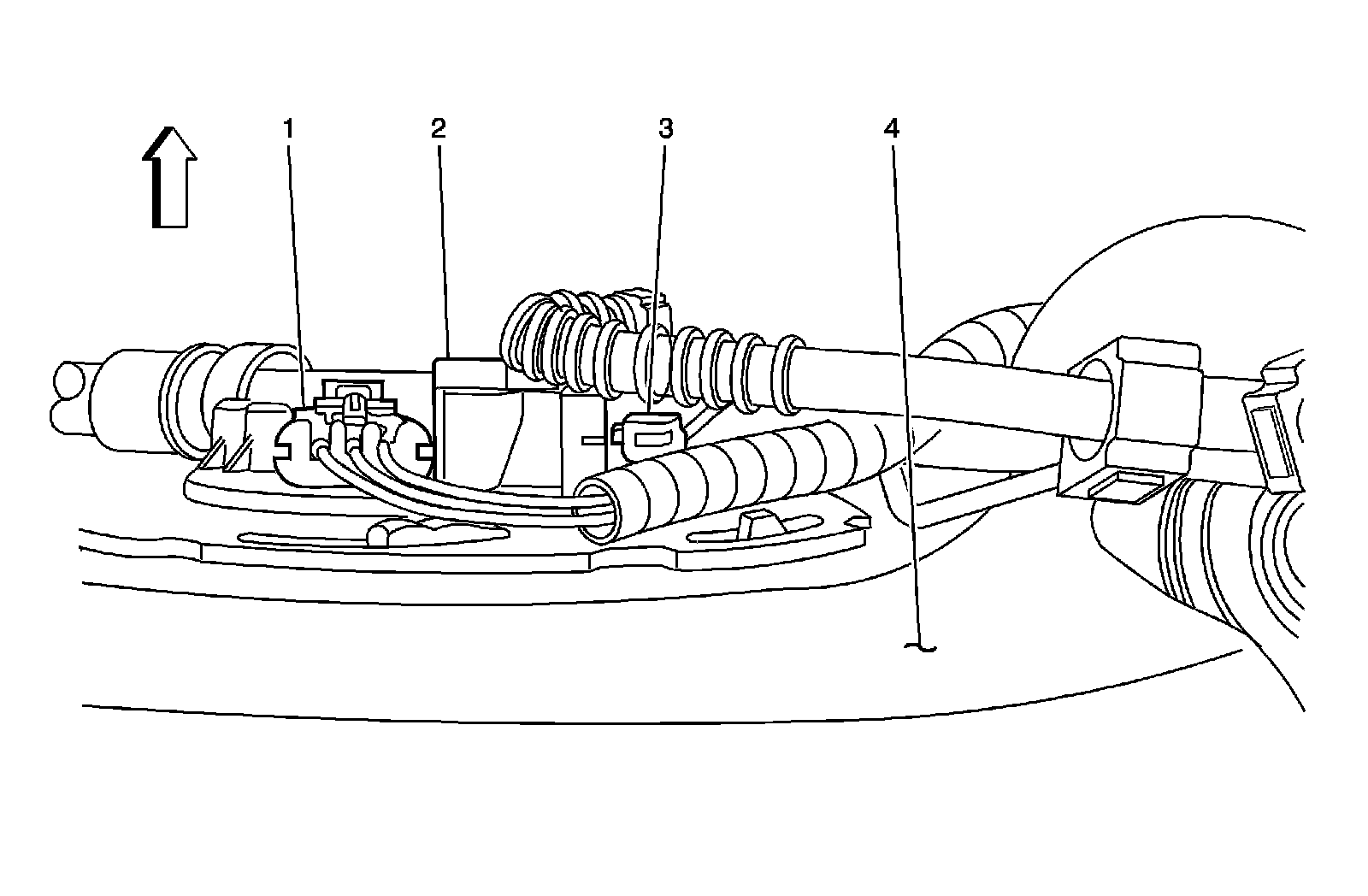

Fuel Tank Components




1 - Fuel Tank Pressure (FTP) Sensor Connector
2 - Fuel Pump and Sender Assembly
3 - Fuel Pump and Sender Assembly Connector
4 - Fuel Tank
