Backup Lamp




Component Connector End Views

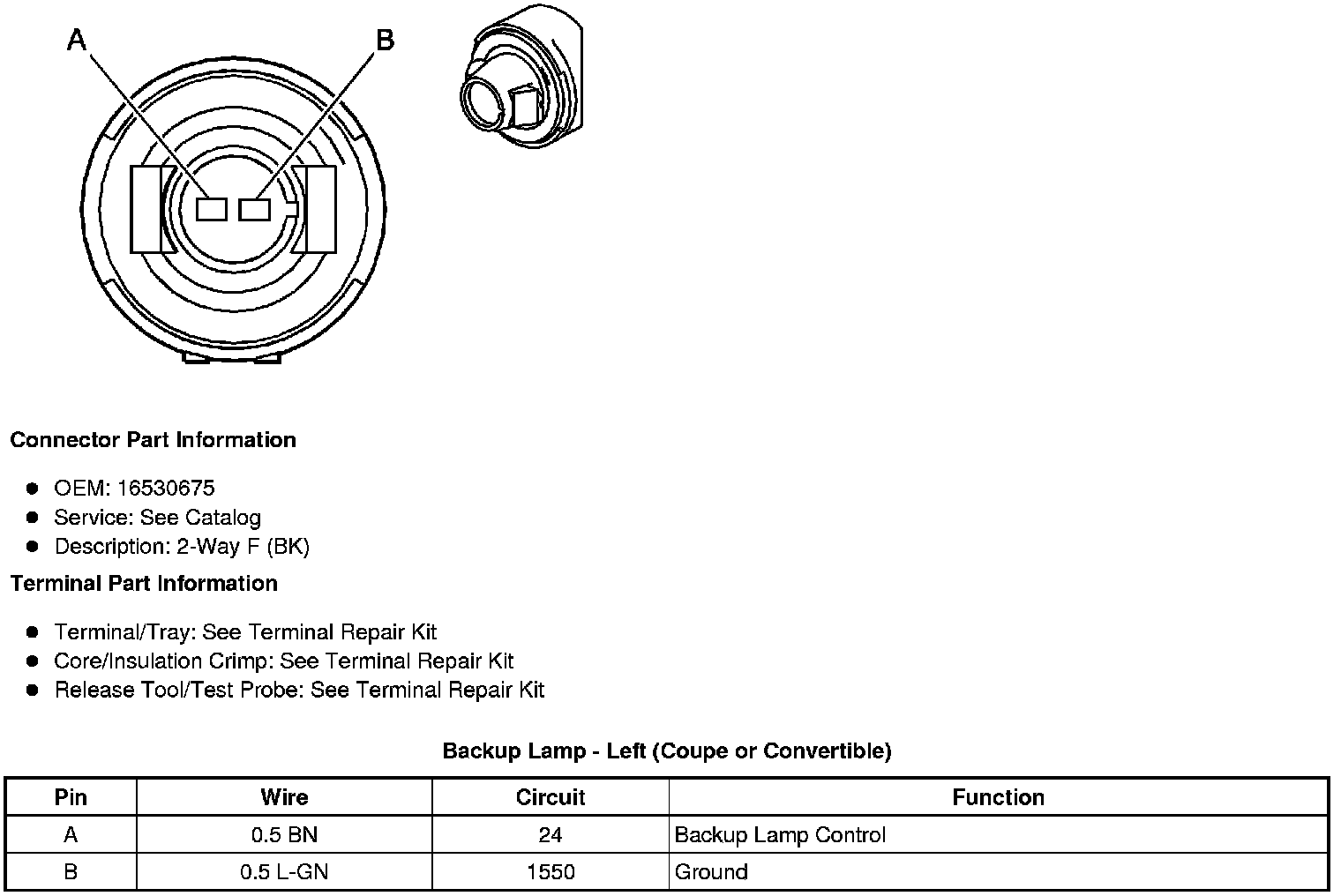

Backup Lamp - Left (Coupe or Convertible)






Backup Lamp - Left (Sedan)

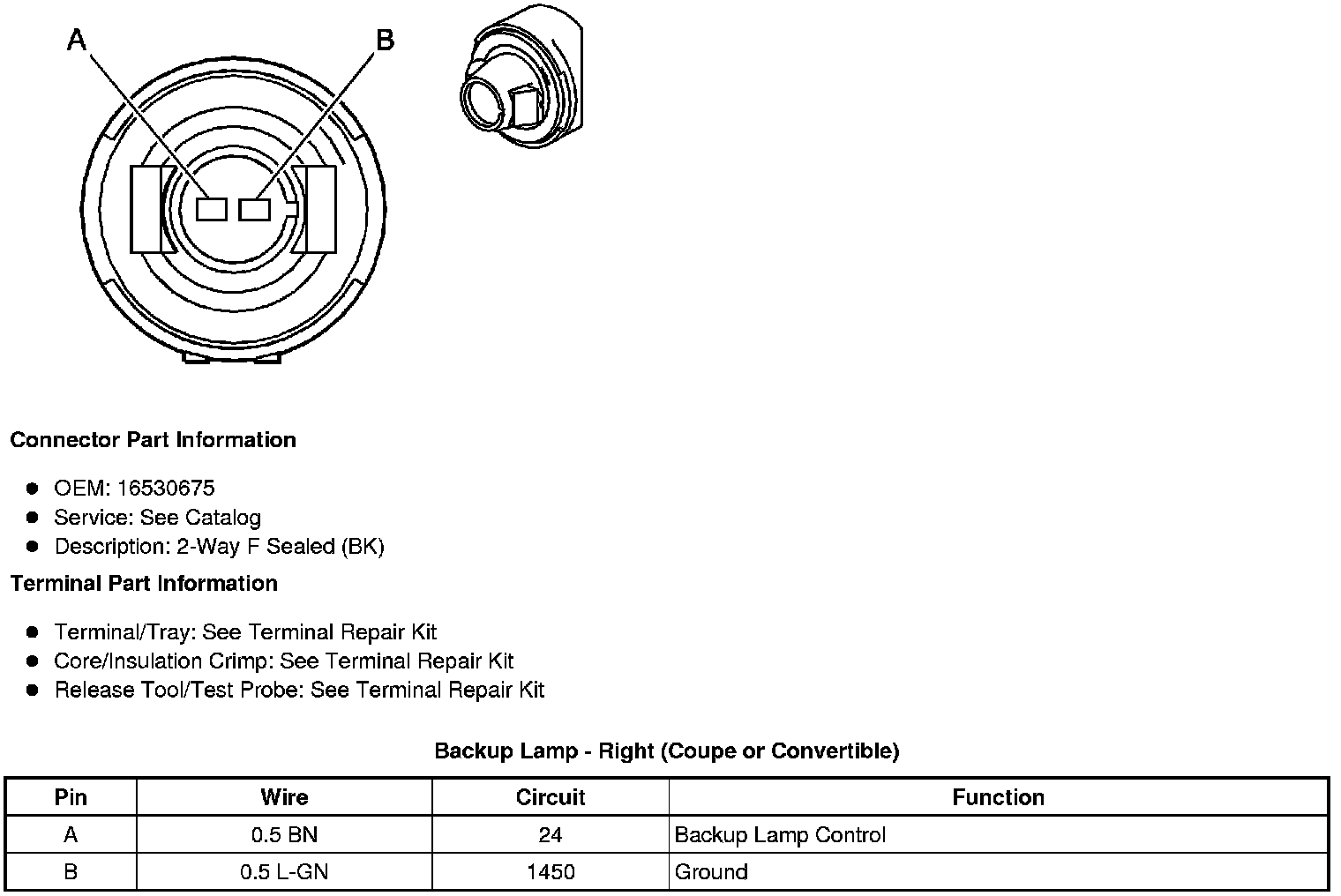

Backup Lamp - Right (Coupe or Convertible)

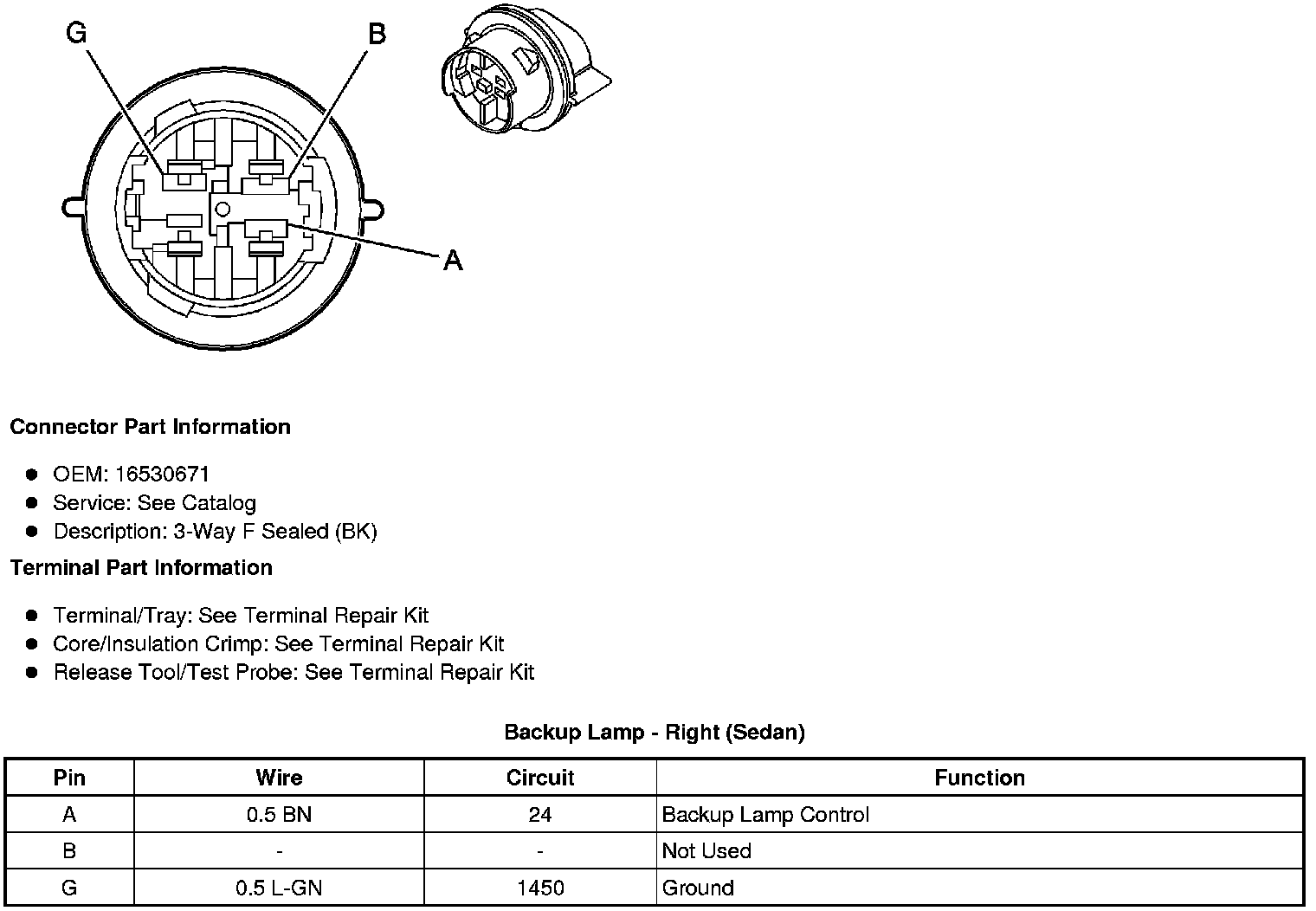

Backup Lamp - Right (Sedan)
