Brake Lamp
Component Connector End Views

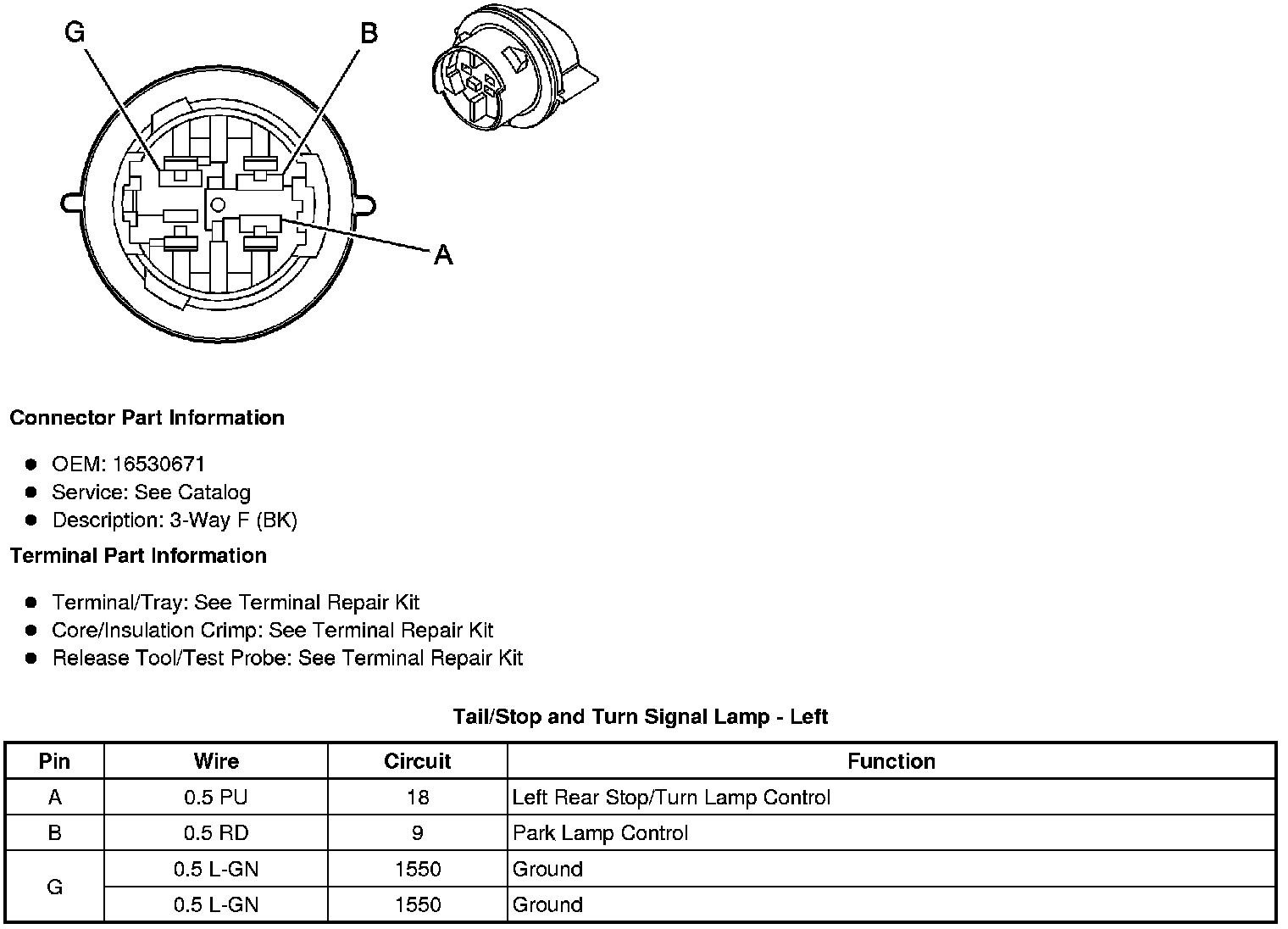

Tail/Stop and
Turn Signal Lamp
- Left

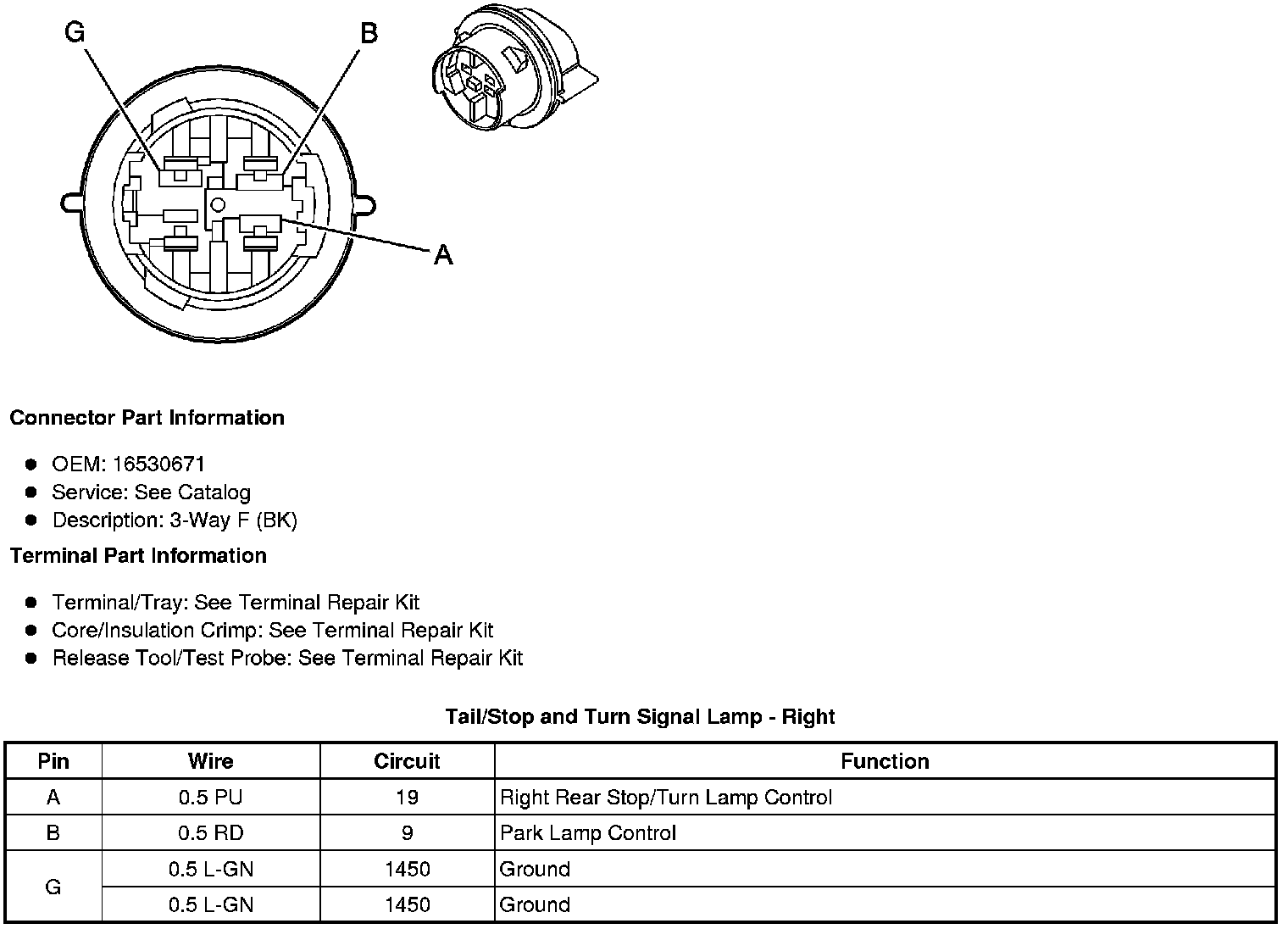

Tail/Stop and
Turn Signal Lamp
- Right
