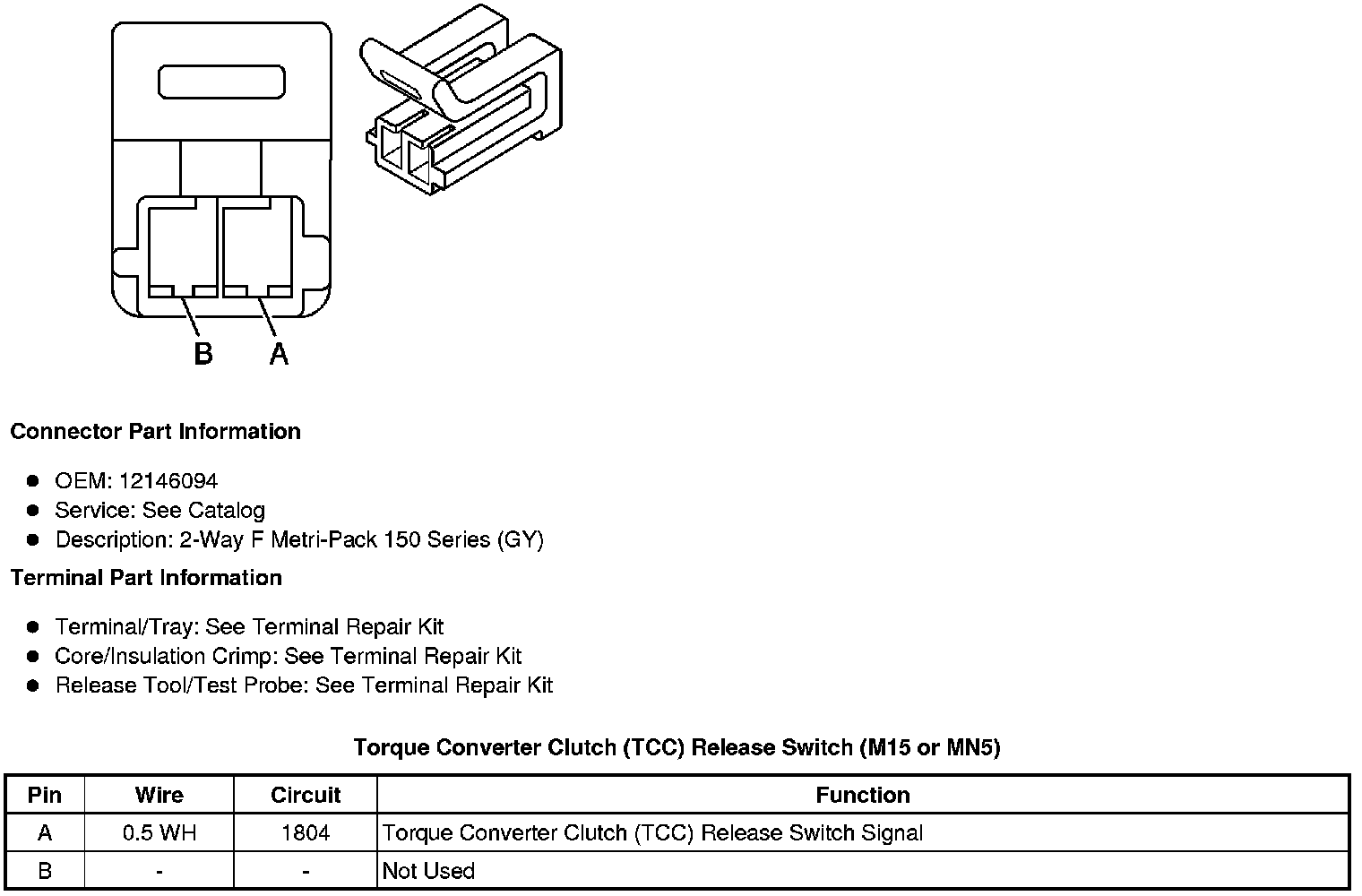

Downshift Switch, A/T




Component Connector End Views

Torque Converter Clutch (TCC) Release Switch (M15 or MN5)
