System Diagram




Component Connector End Views

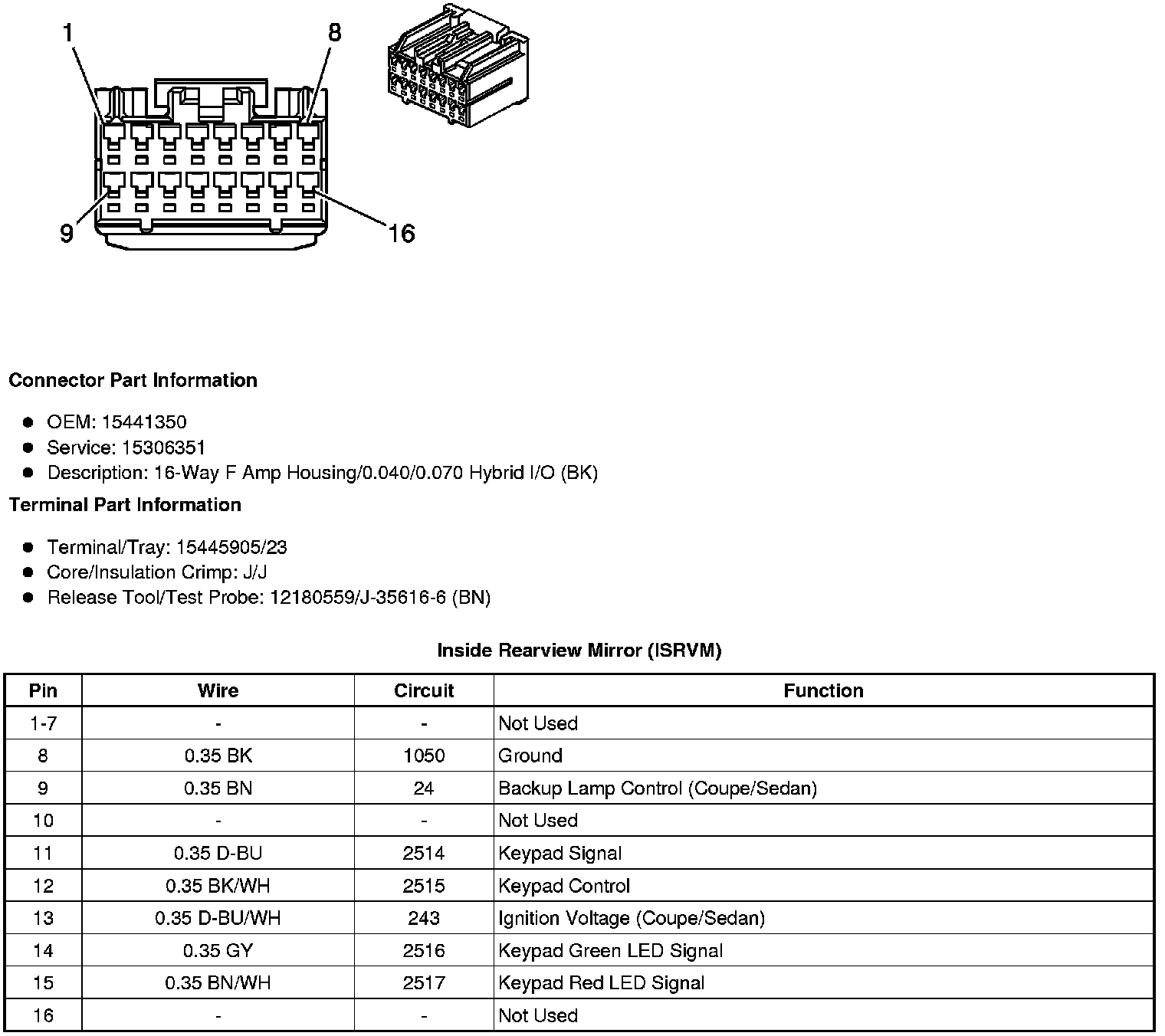

Inside Rearview Mirror (ISRVM)






Outside Rearview Mirror - Driver






Outside Rearview Mirror - Passenger
