Power Seat Switch




Component Connector End Views

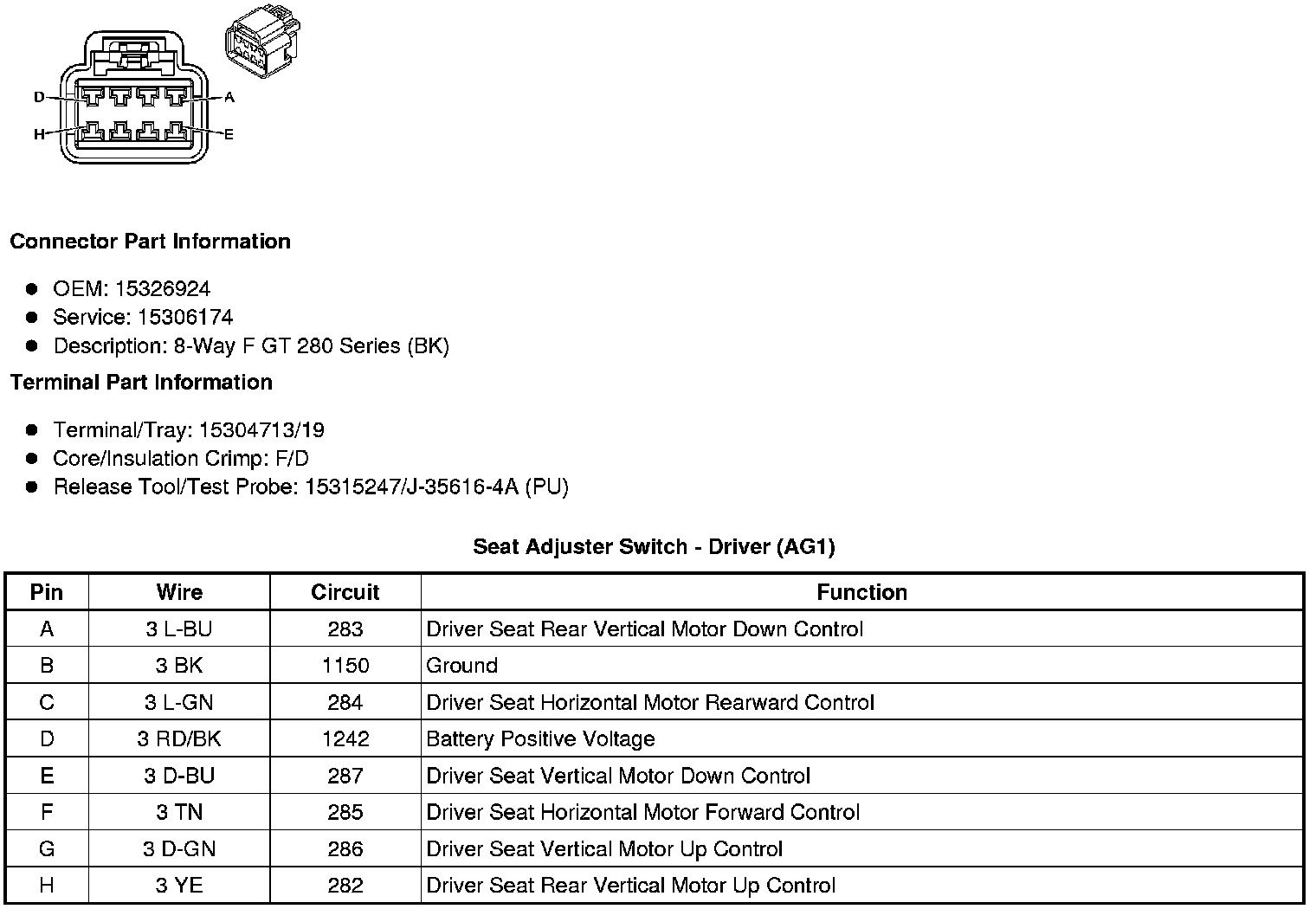

Seat Adjuster Switch - Driver (AG1)






Seat Adjuster Switch - Driver (with out AG1)
