Power Trunk / Liftgate Lock Switch
Component Connector End Views

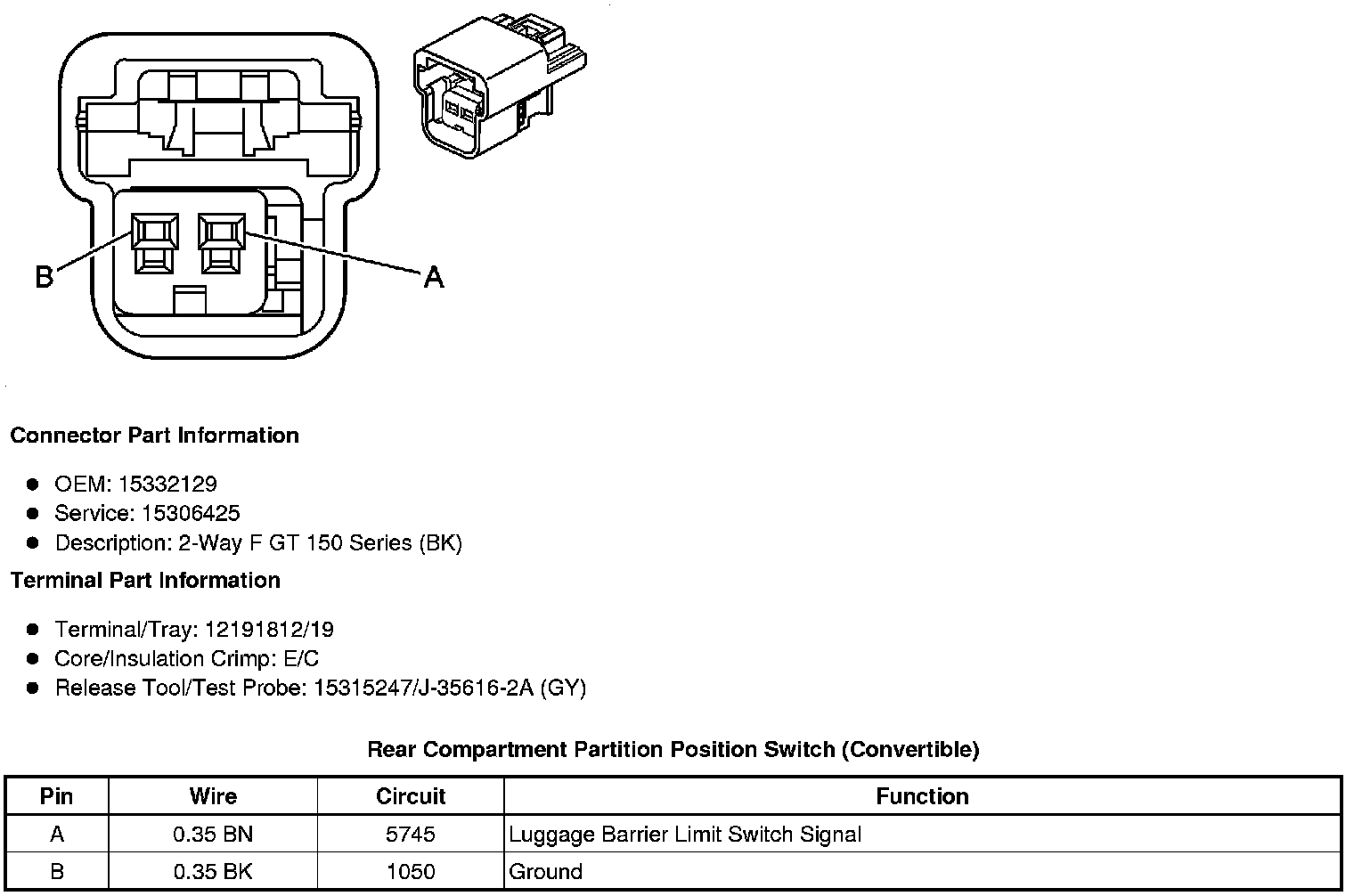

Rear Compartment Partition Position Switch (Convertible)
