Seat Temperature Control Module




Component Connector End Views

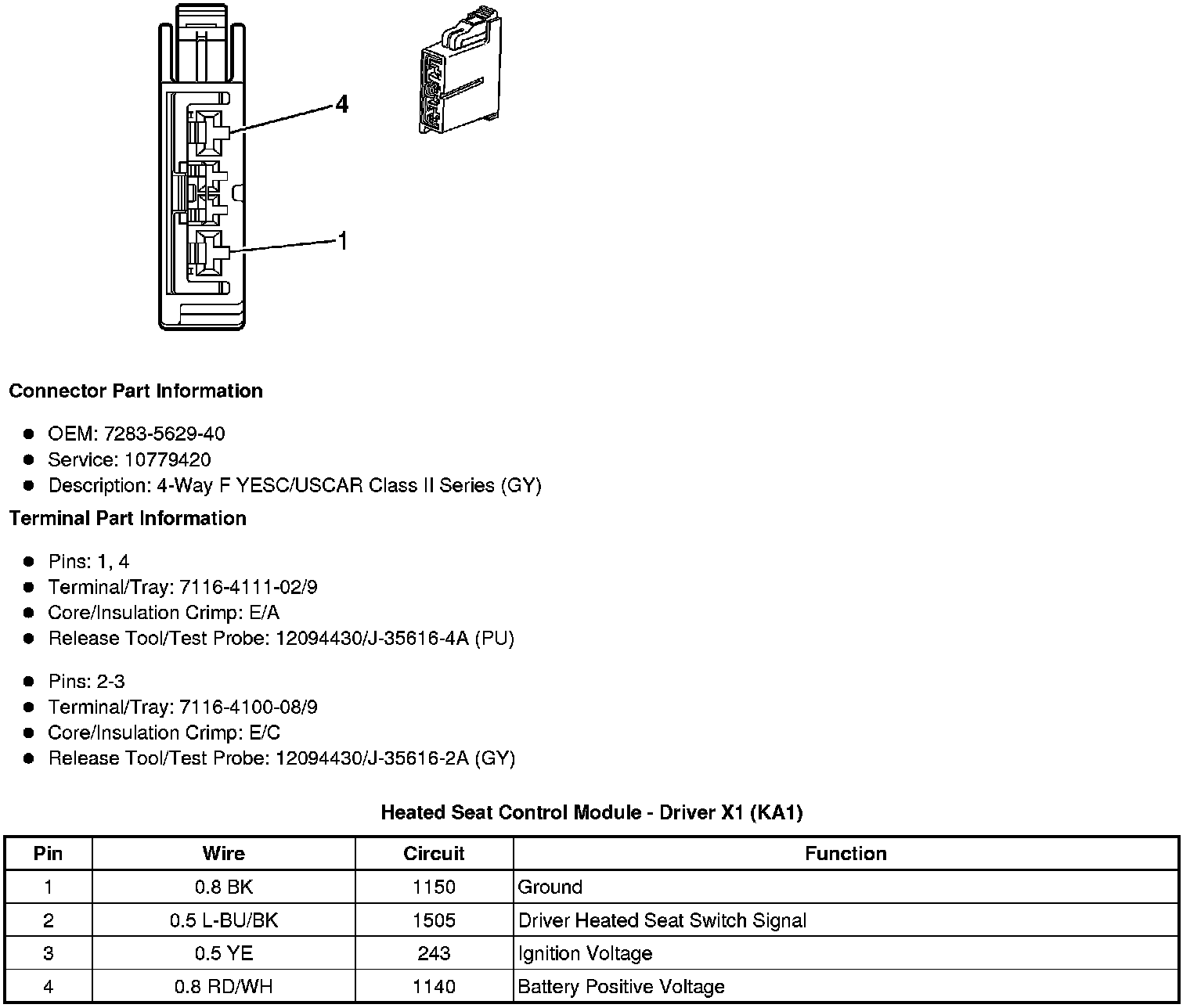

Heated Seat Control Module - Driver X1 (KA1)

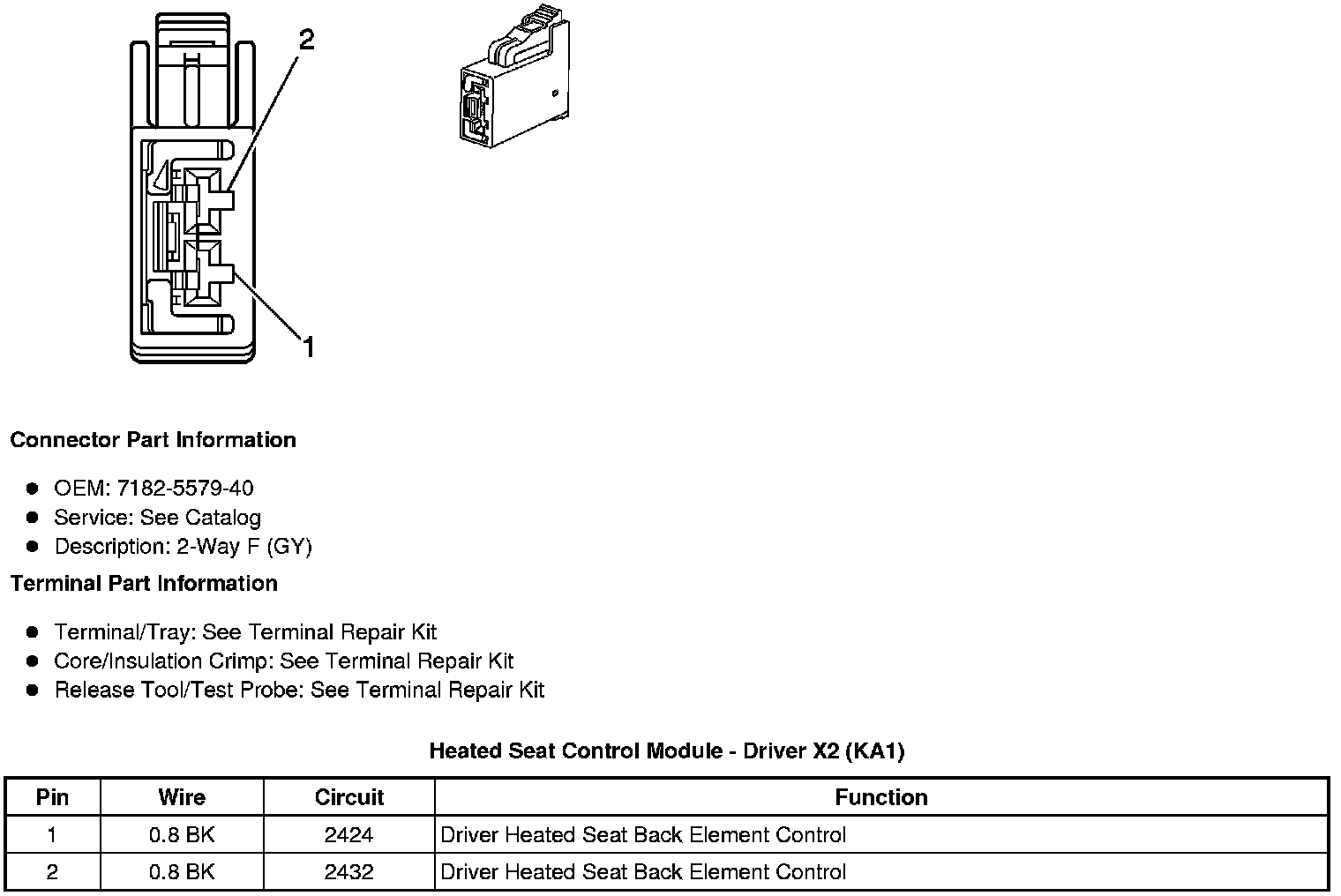

Heated Seat Control Module - Driver X2 (KA1)

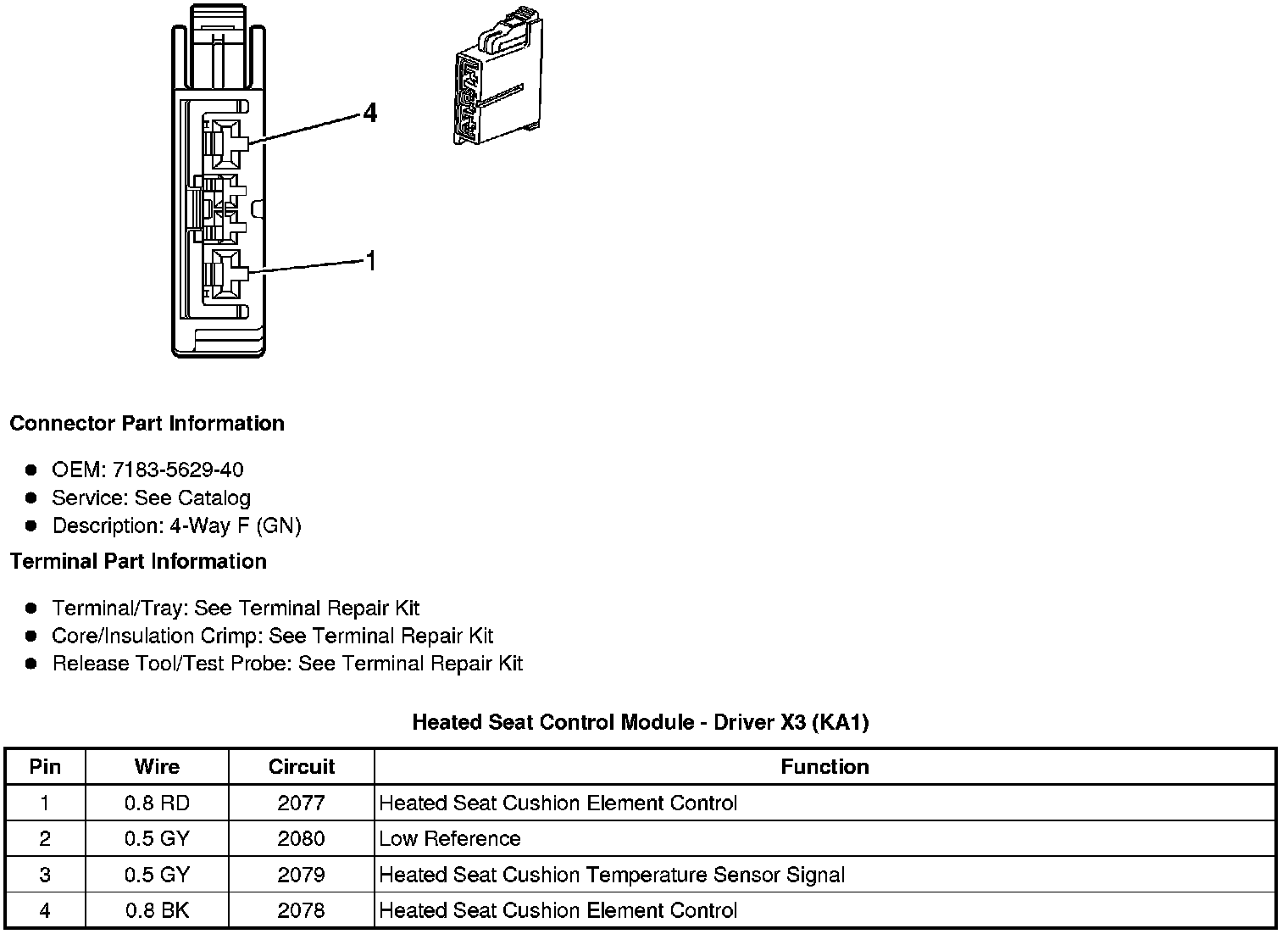

Heated Seat Control Module - Driver X3 (KA1)

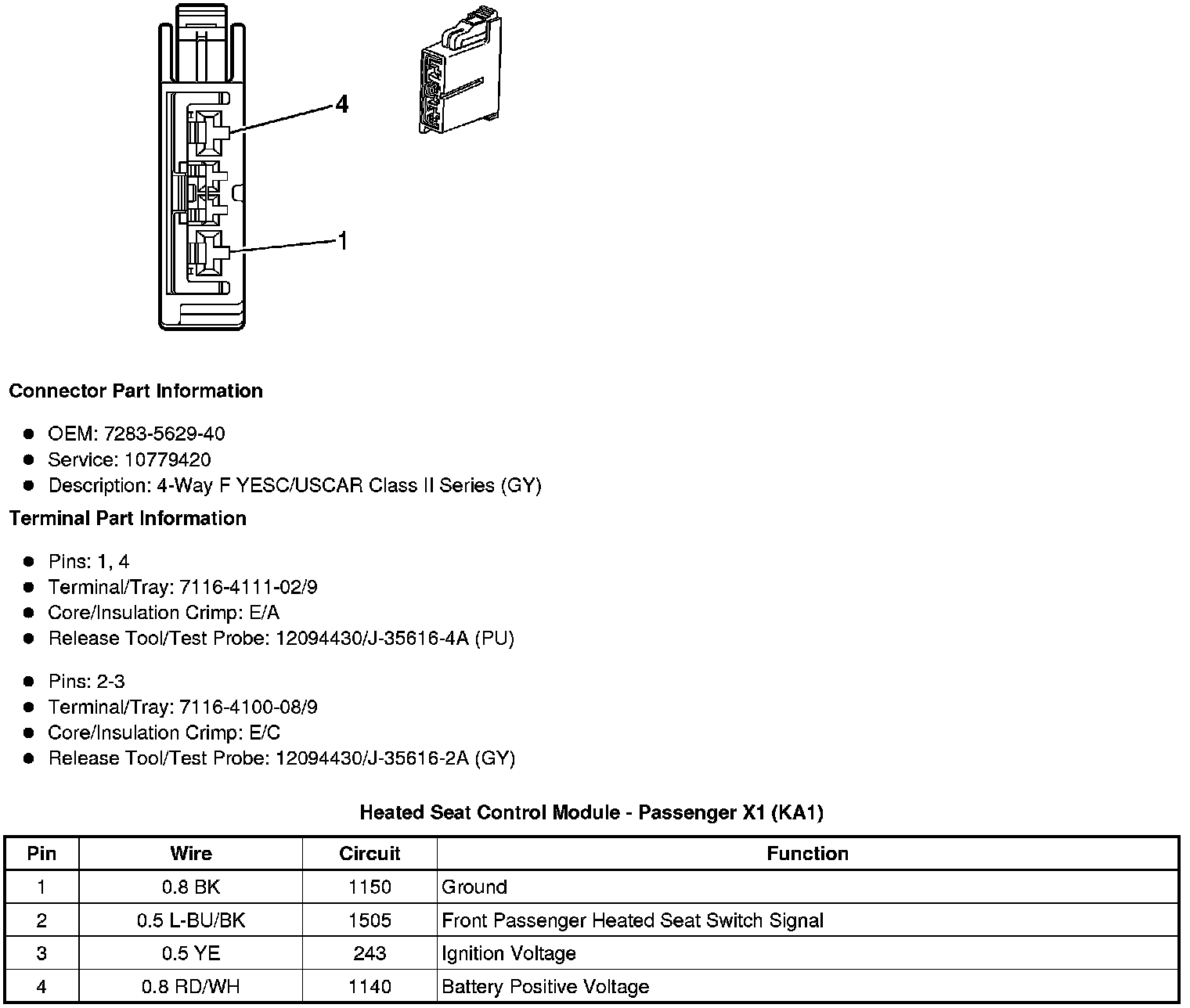

Heated Seat Control Module - Passenger X1 (KA1)






Heated Seat Control Module - Passenger X2 (KA1)

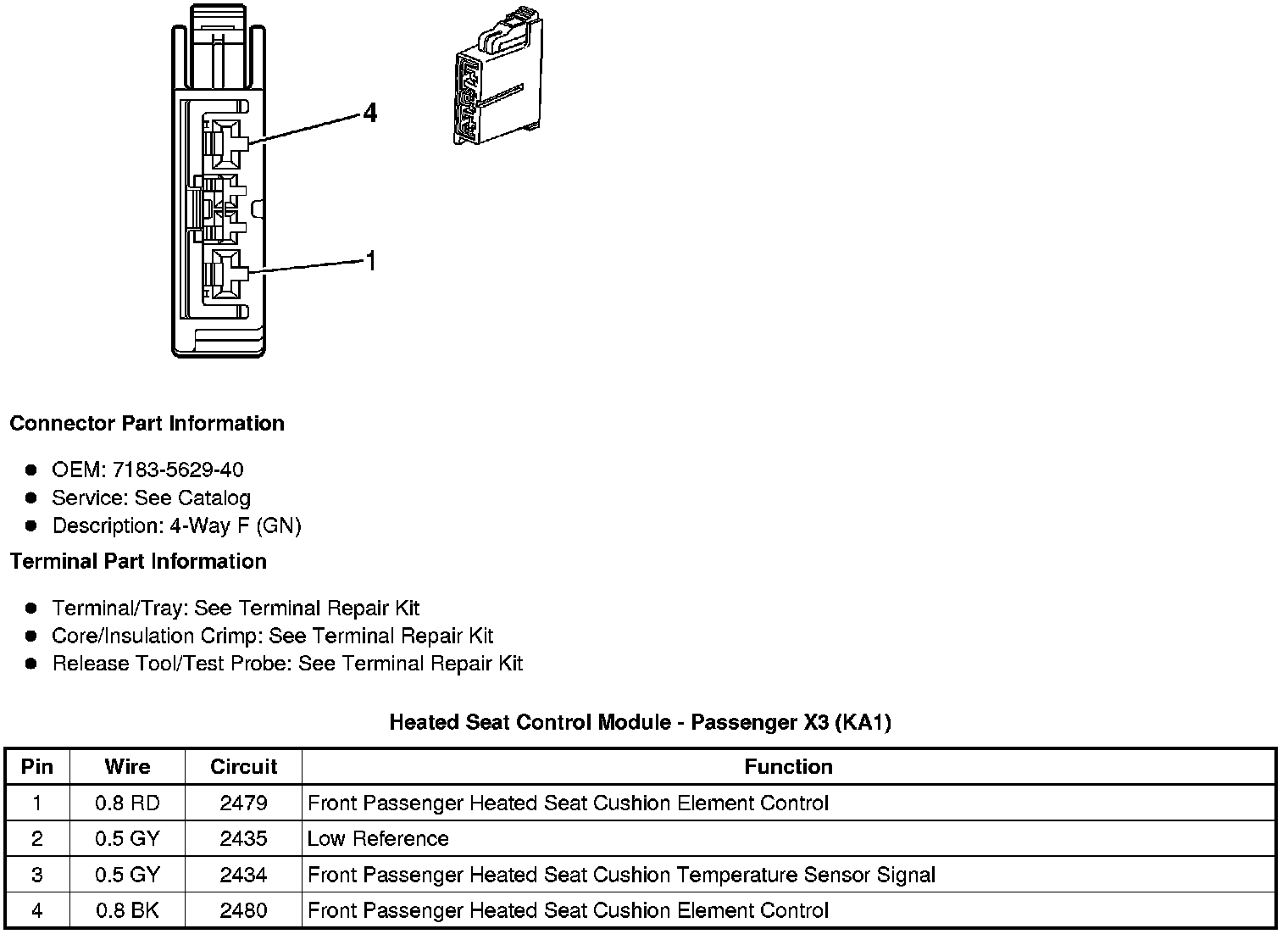

Heated Seat Control Module - Passenger X3 (KA1)
