Trunk / Liftgate Switch




Component Connector End Views

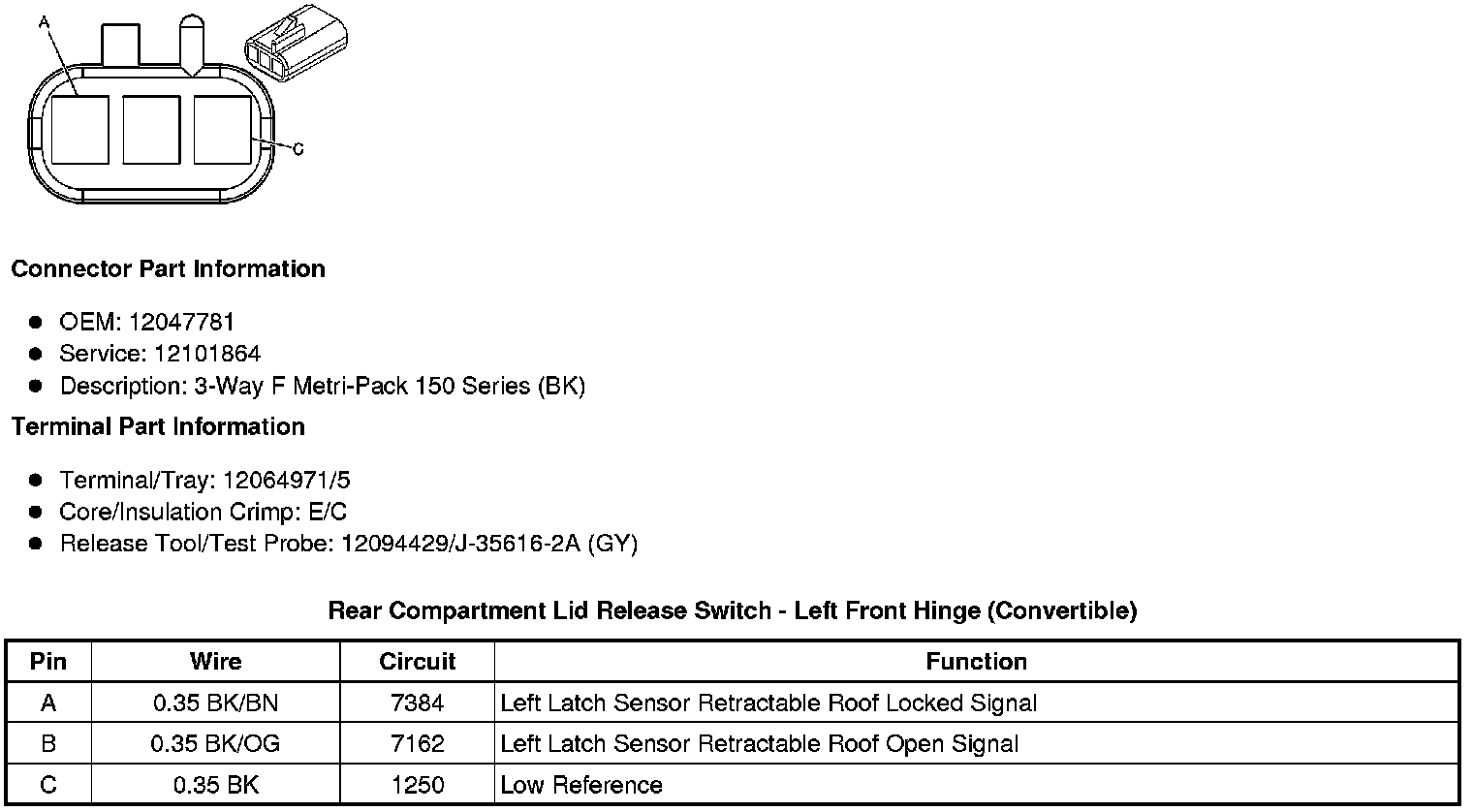

Rear Compartment Lid Release Switch - Left Front Hinge (Convertible)

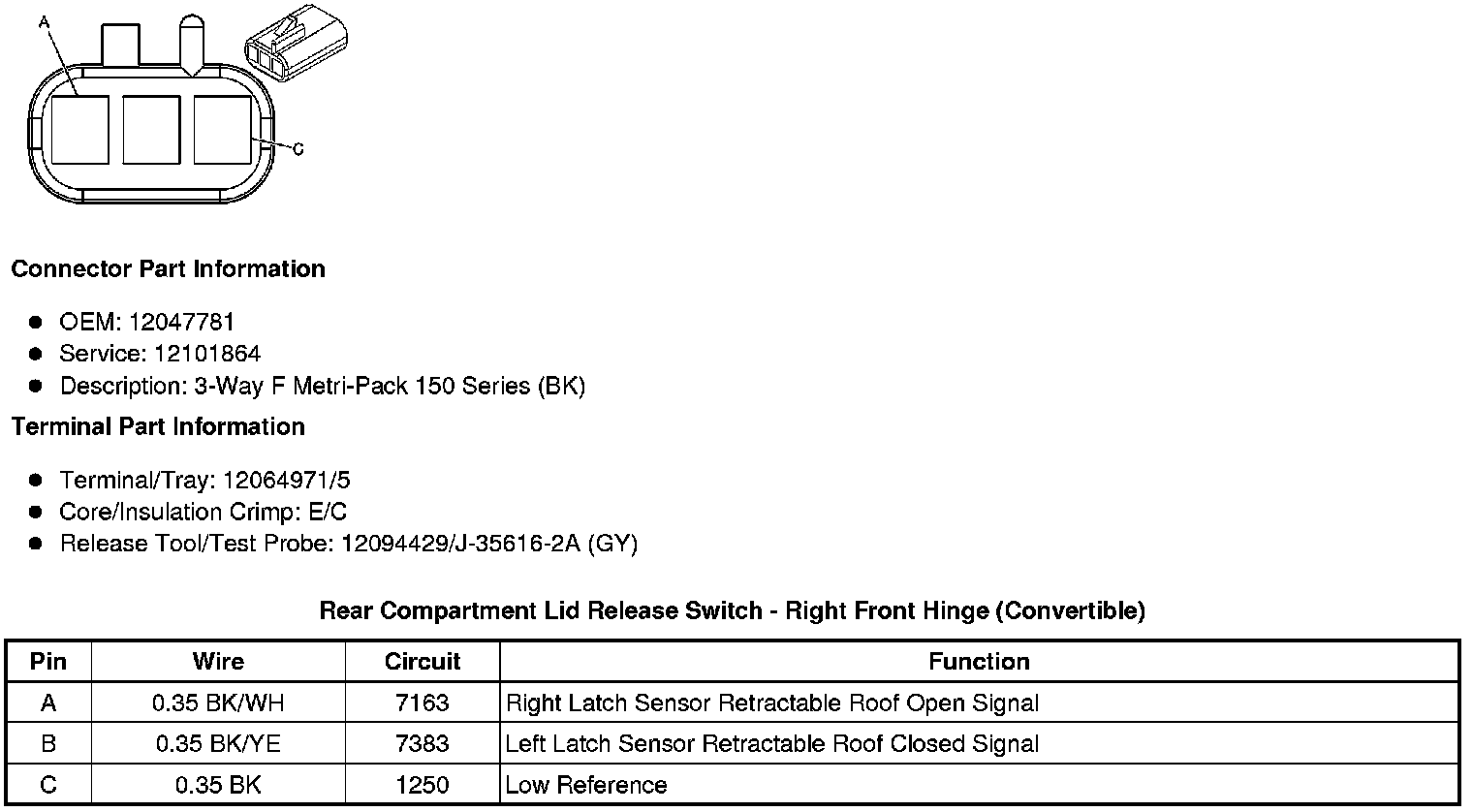

Rear Compartment Lid Release Switch - Right Front Hinge (Convertible)

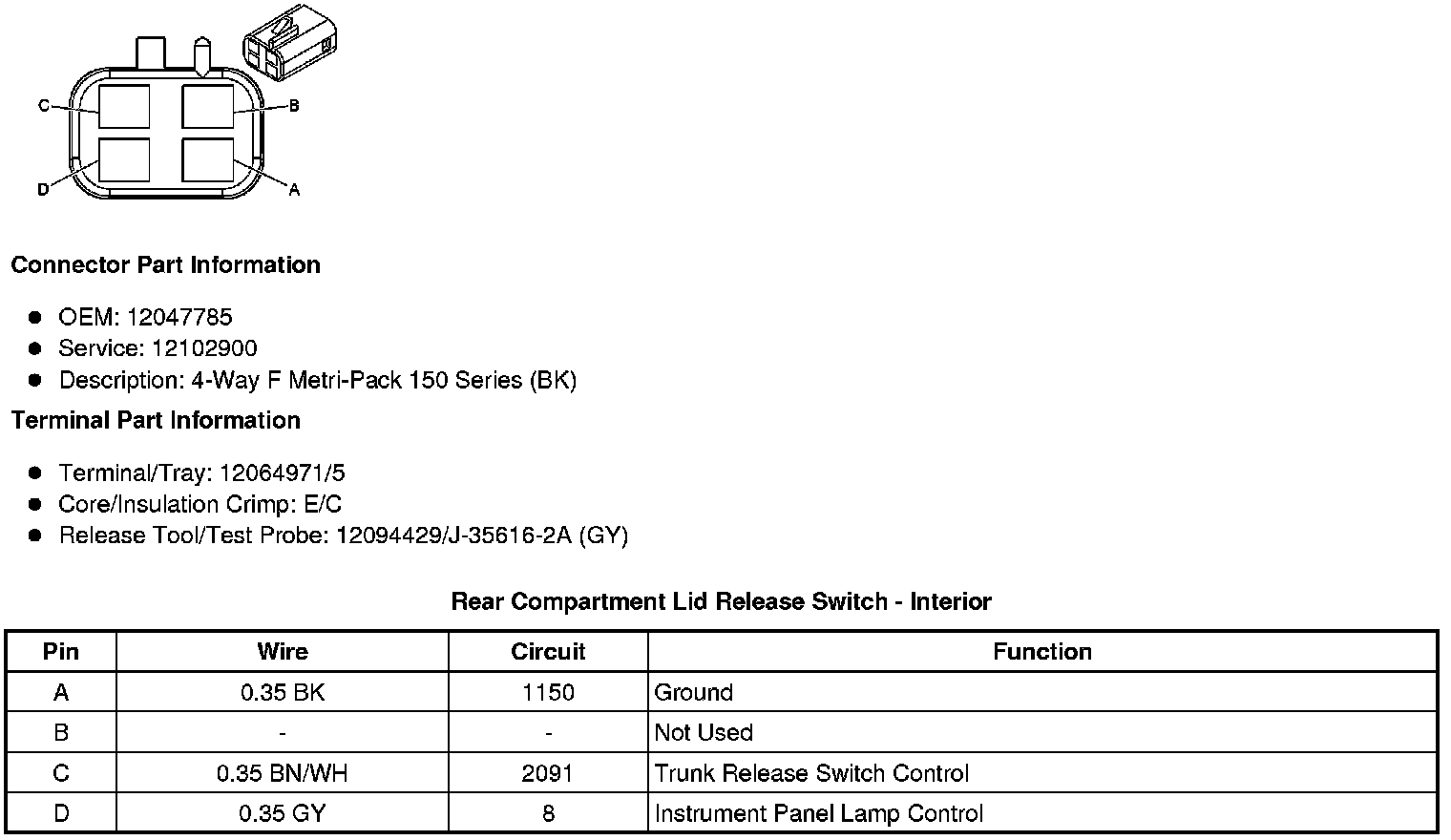

Rear Compartment Lid Release Switch - Interior

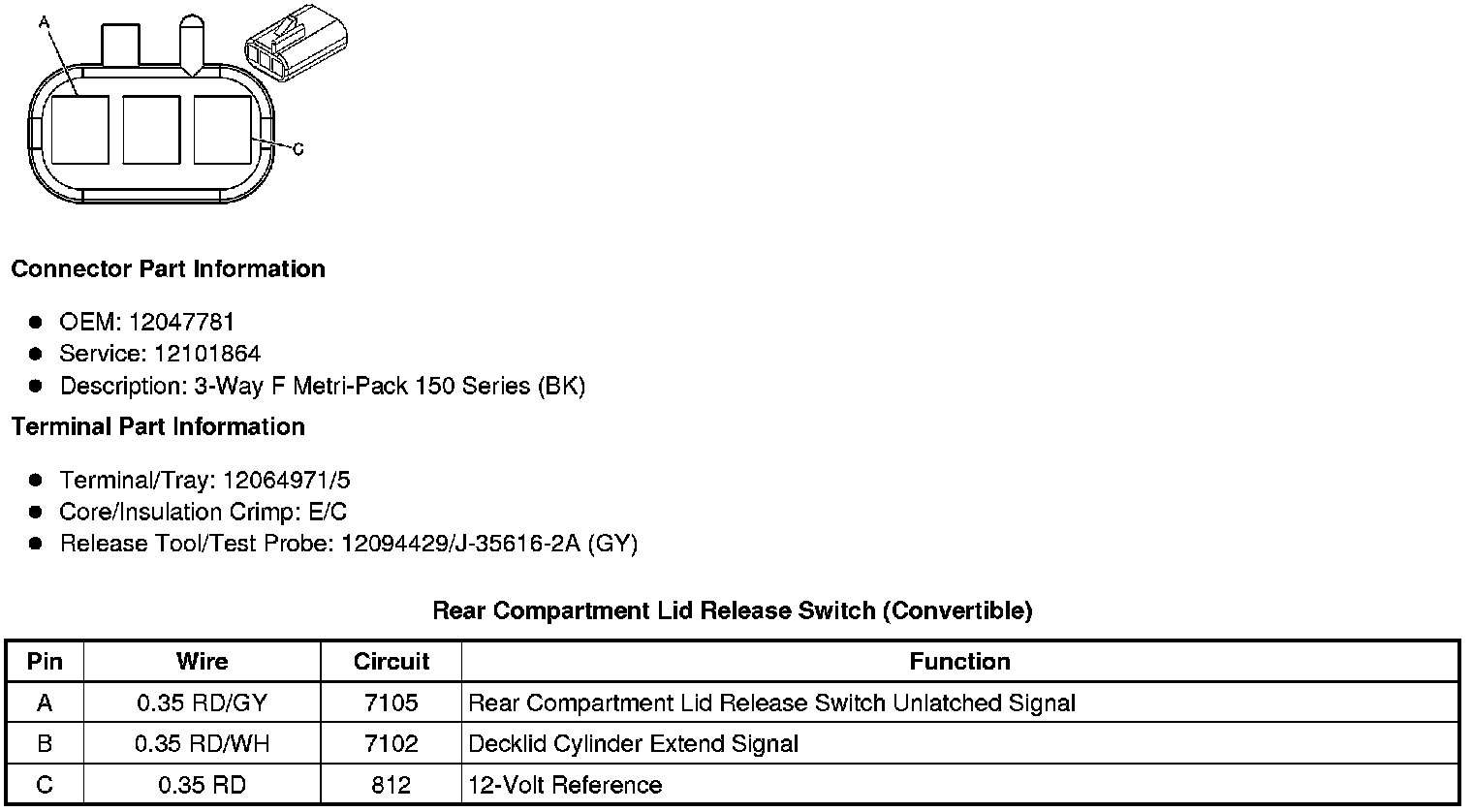

Rear Compartment Lid Release Switch (Convertible)

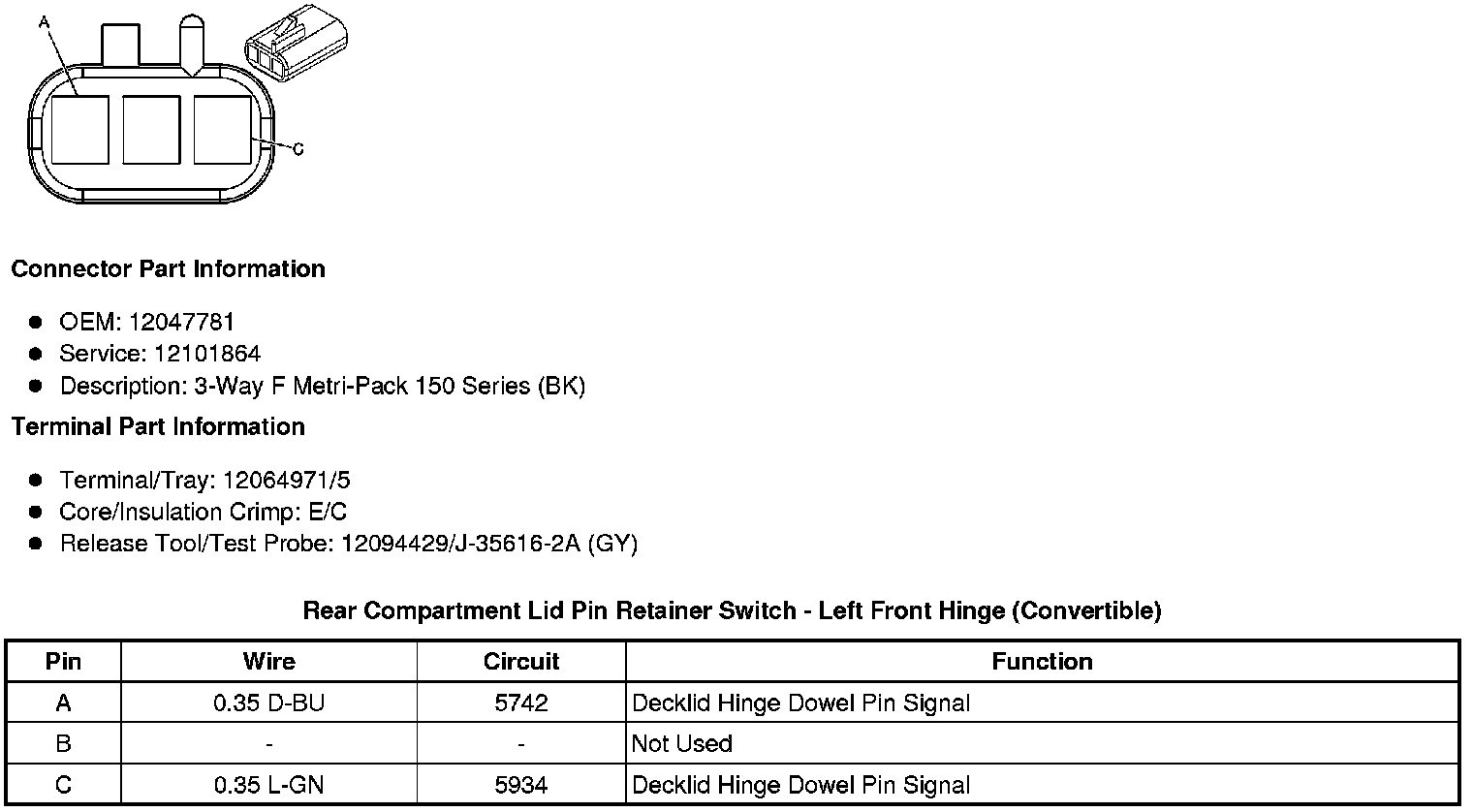

Rear Compartment Lid Pin Retainer Switch - Left Front Hinge (Convertible)

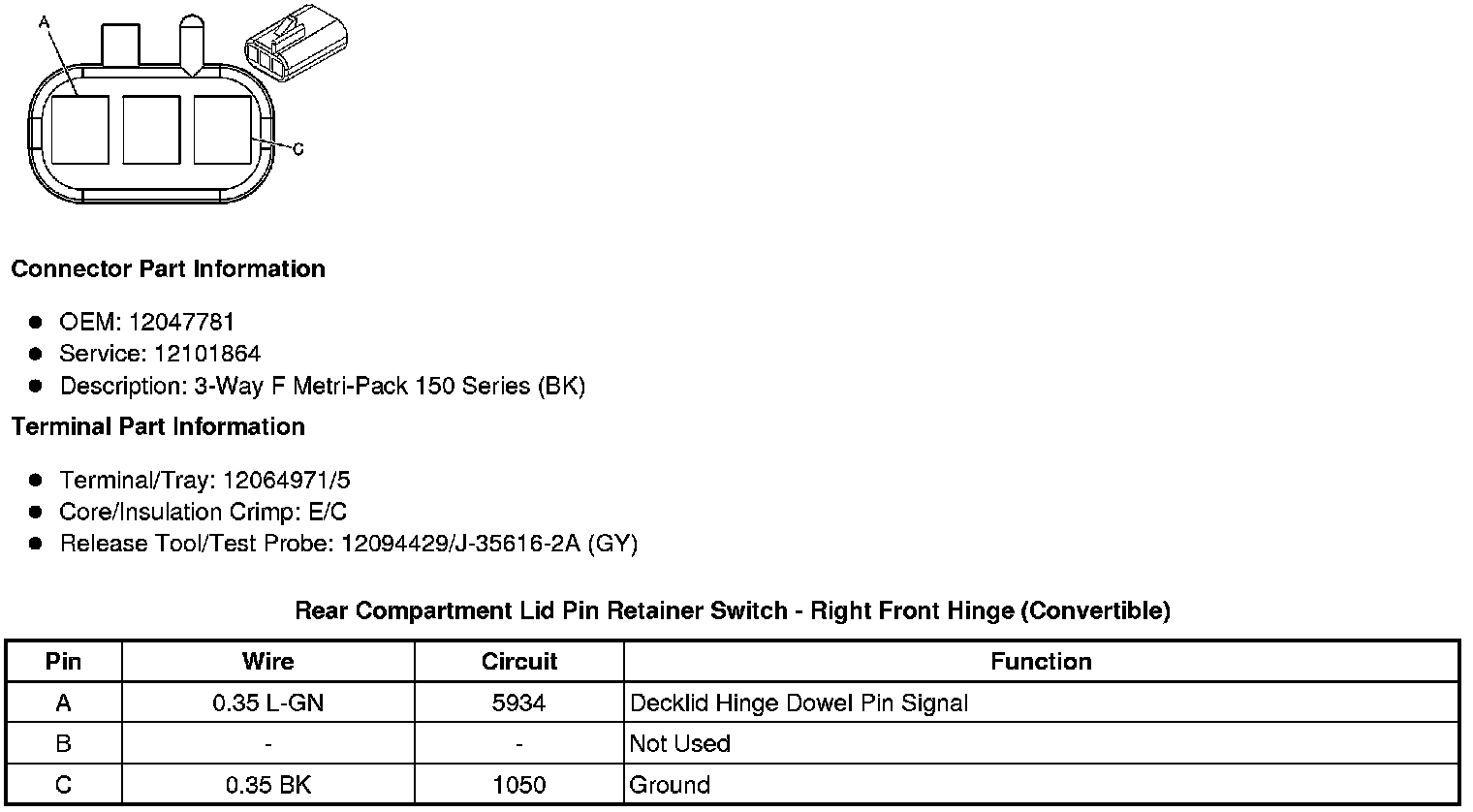

Rear Compartment Lid Pin Retainer Switch - Right Front Hinge (Convertible)
