Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal with Position Sensor Assembly Replacement

Removal Procedure

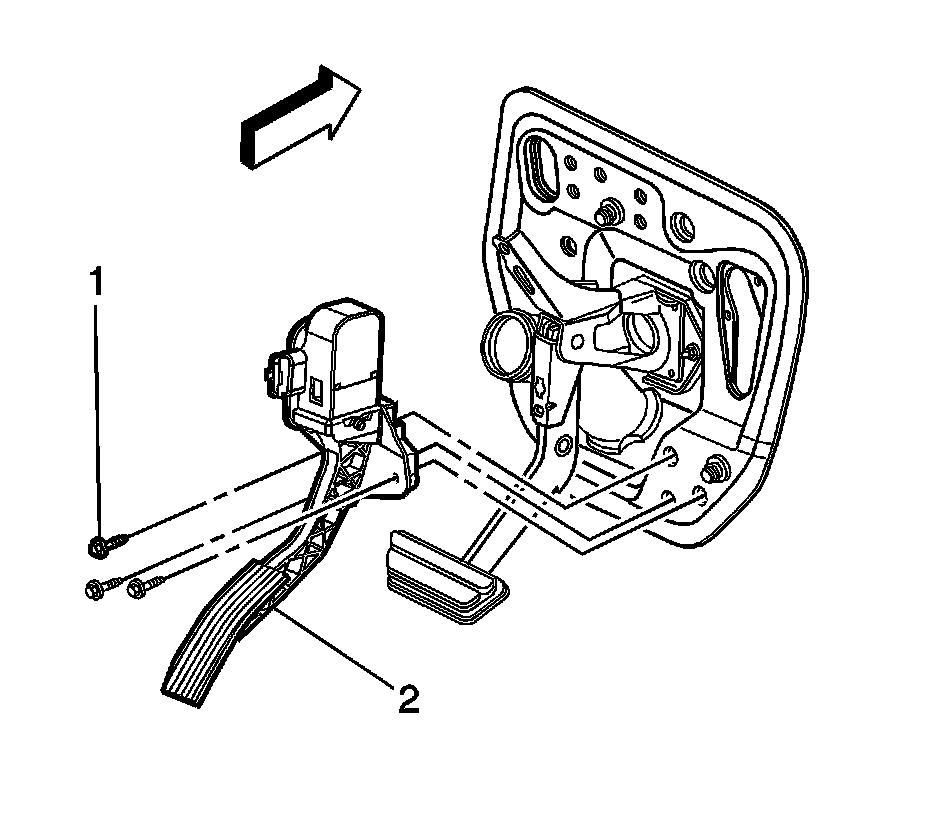

1. Disconnect the accelerator pedal position (APP) sensor electrical connector.
2. Remove the APP sensor bolts (1).
3. Remove the APP sensor (2).

Installation Procedure




1. Install the APP sensor (2).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the APP bolts (1) and tighten to 10 Nm(89 lb in)..
3. Connect the APP sensor electrical connector.
4. Confirm that the APP sensor connector locking clip is fully secured.
