Battery Current Sensor: Service and Repair

Battery Current Sensor Replacement

Removal Procedure




1. Remove the negative battery cable. Refer to Battery Negative Cable Replacement (With LY7) (Service and Repair)Battery Negative Cable Replacement (With LE5) (Service and Repair)Battery Negative Cable Replacement (LZ9) (Service and Repair)Battery Negative Cable Replacement (LZ4) (Service and Repair).
2. Ensure that the location measurement of the battery current sensor was recorded for reference during installation.

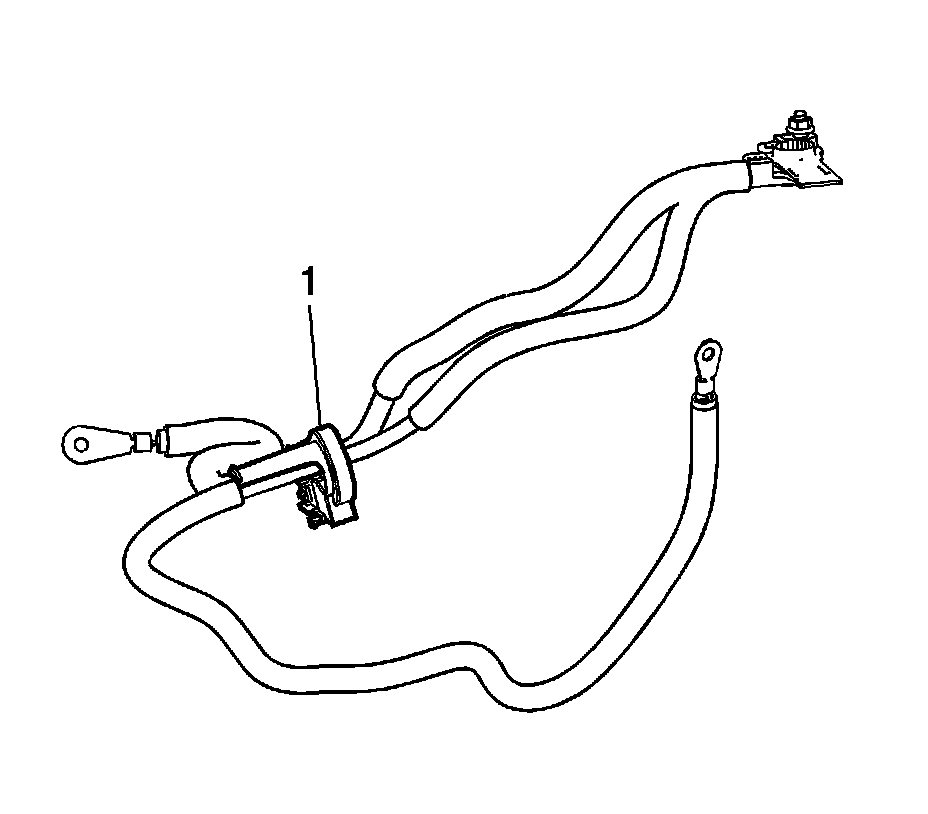

3. Squeeze the ground ends of the negative battery cable together and remove the sensor (1) from the cable.

Installation Procedure





Important: Ensure the battery current sensor is installed in the correct direction and location on the negative battery cable.


1. Install the battery current sensor (1) by passing the ground ends of the negative battery cable through the sensor.
2. Measure from the same end as earlier, and slide the current sensor to that measurement on the negative battery cable.
3. Install the battery negative cable. Refer to Battery Negative Cable Replacement (With LY7) (Service and Repair)Battery Negative Cable Replacement (With LE5) (Service and Repair)Battery Negative Cable Replacement (LZ9) (Service and Repair)Battery Negative Cable Replacement (LZ4) (Service and Repair).
