Front of Vehicle/Engine Compartment Component Views




Front of Vehicle/Engine Compartment Component Views

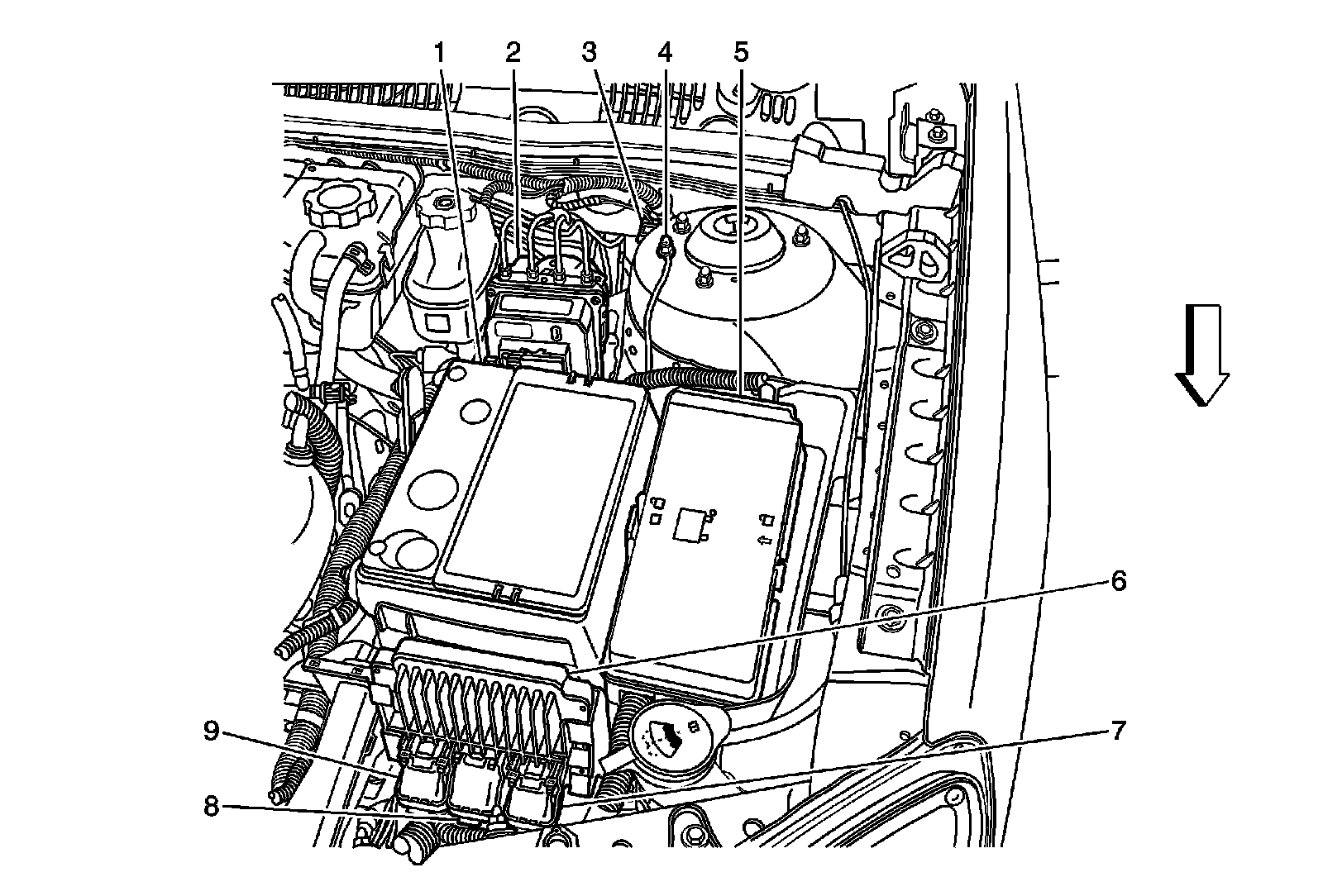

Left Rear of Engine Compartment Components




1 - Battery
2 - Electronic Brake Control Module (EBCM)
3 - X101
4 - G103
5 - Fuse Block - Underhood
6 - Engine Control Module (ECM)
7 - Engine Control Module (ECM) X3
8 - Engine Control Module (ECM) X2
9 - Engine Control Module (ECM) X1
