Battery Replacement

Battery Replacement

Removal Procedure




1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).

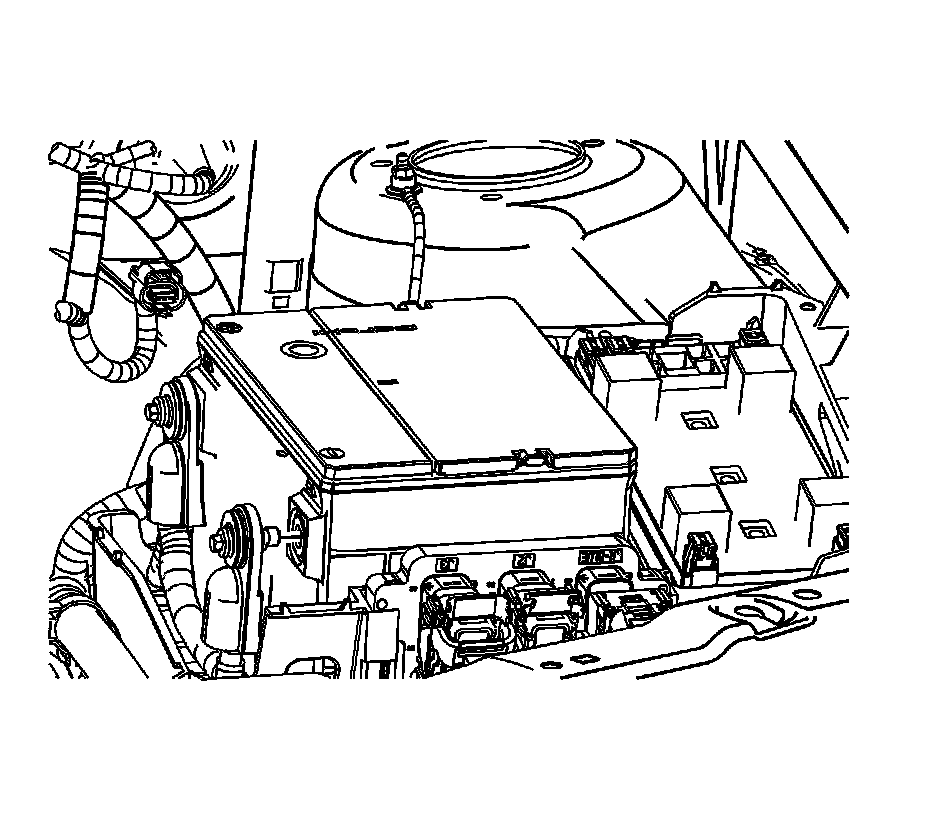

2. Disconnect the positive battery cable from the battery.

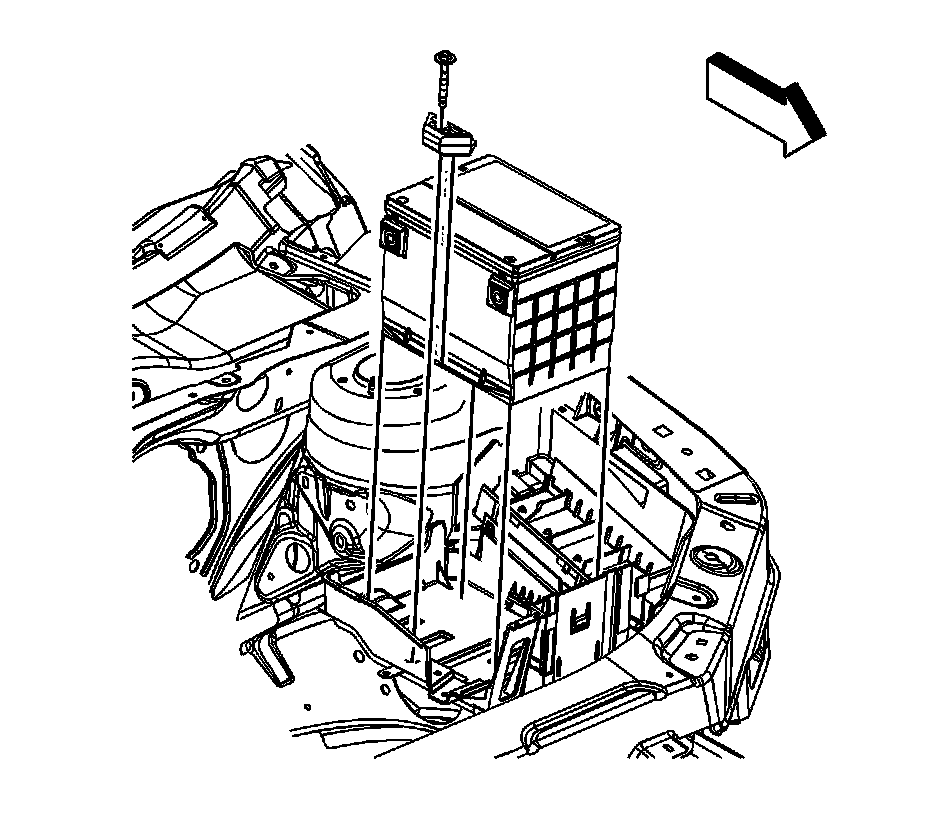

3. Remove the battery hold down retainer bolt and retainer.

Note: Do not tip the battery more than 40 degrees during removal.

4. Remove the battery.

Installation Procedure





Note: Do not tip the battery more than 40 degrees during battery installation.

1. Install the battery.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the battery hold down retainer and bolt.

Tighten the bolt to 25 Nm (18 lb ft).




3. Connect the positive battery cable to the battery.

Tighten the bolt to 17 Nm (13 lb ft).

4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).
