Installation Procedure

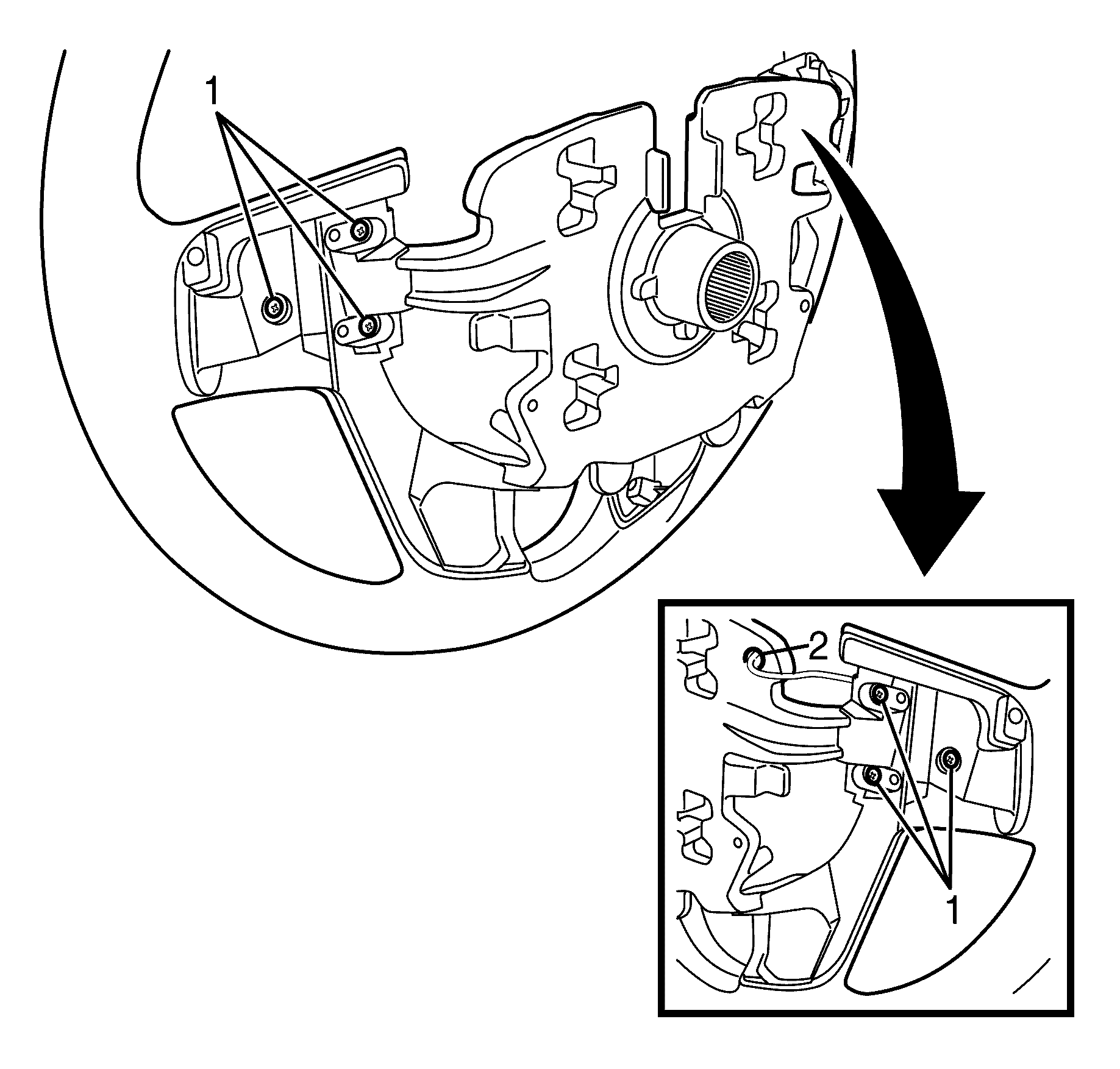

    Fig 1: Identifying Steering Wheel Hub To Steering Wheel Audio Control Switch Assembly Retaining Screws
    GM1957911Courtesy of GENERAL MOTORS CORP.
  1. Install the steering wheel audio control switches from the steering wheel hub assembly.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the steering wheel audio control switch assembly harness grounding screw (2) and tighten to 1 N.m (9 lb in).
  3. Install the steering wheel hub to steering wheel audio control switch assembly retaining screws (1) and tighten to 1 N.m (9 lb in).

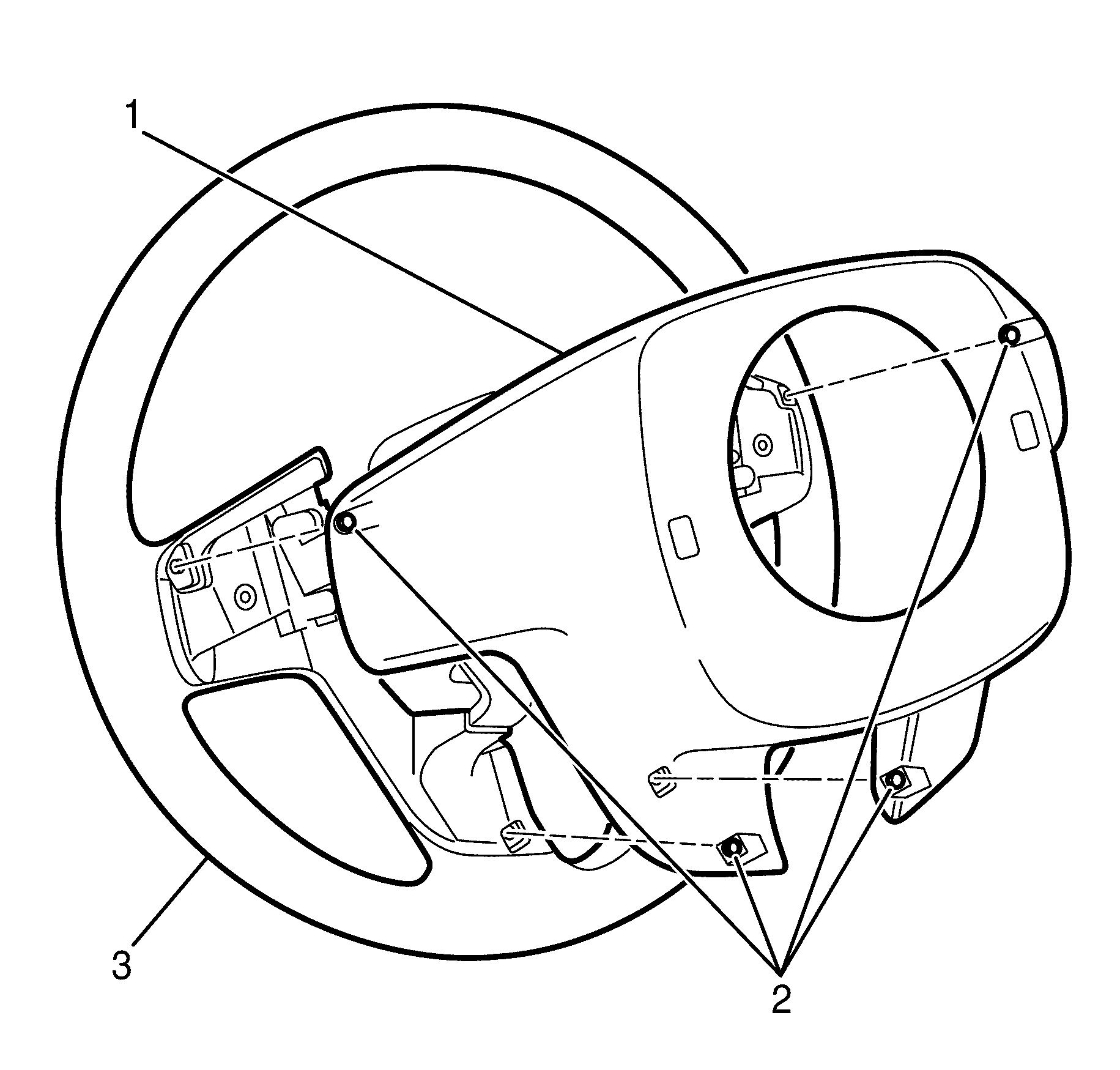

    4. Fig 2: View Of Rear Cover, Retaining Lugs & Steering Wheel Hub
    GM1957909Courtesy of GENERAL MOTORS CORP.
    NOTE: Make sure that all the retainers (2) engage.
  4. Install the rear cover (1) to the steering wheel hub (3).

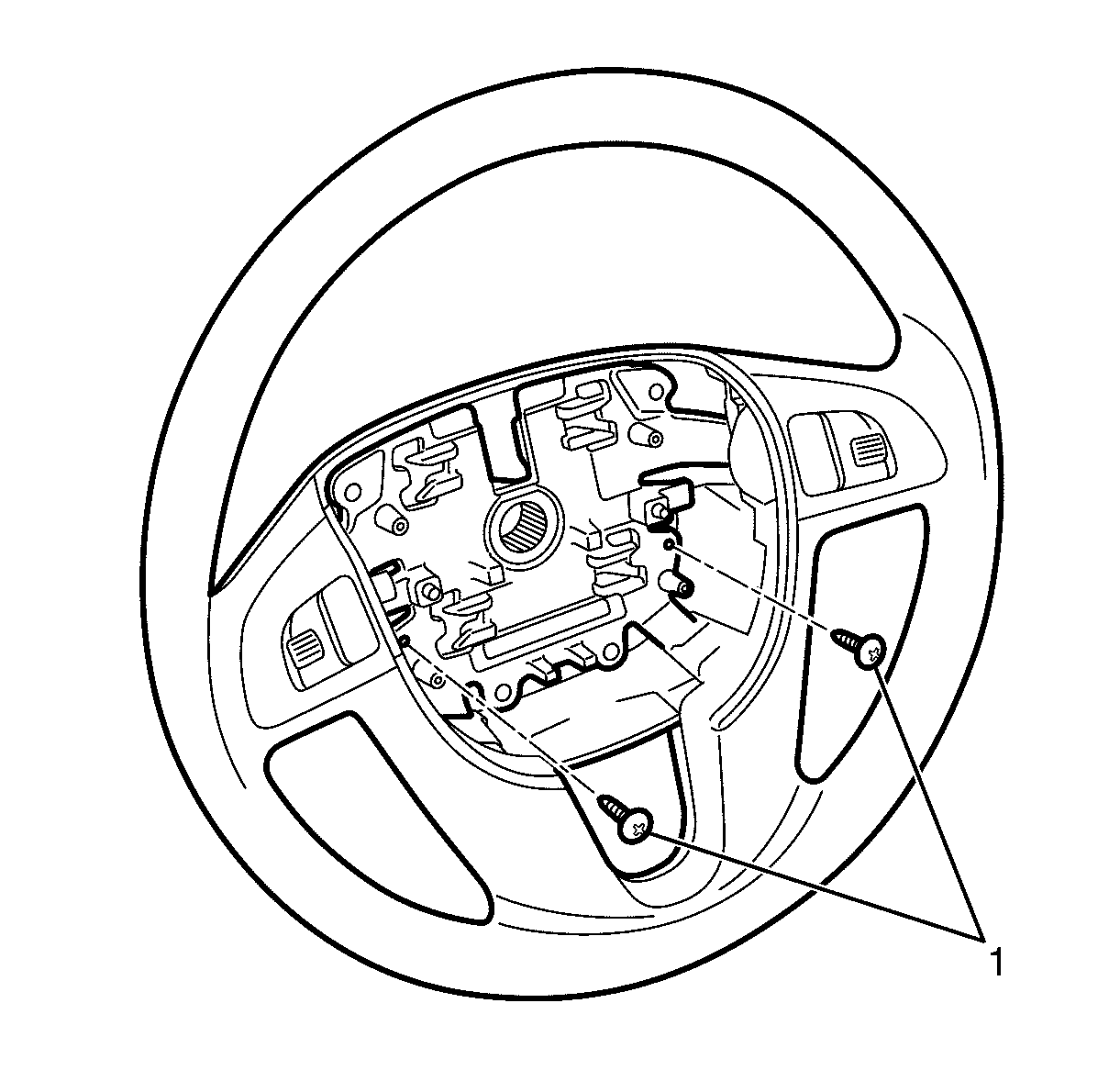

    5. Fig 3: Identifying Steering Wheel Hub To Rear Cover Retaining Screws
    GM1957906Courtesy of GENERAL MOTORS CORP.
  5. Install the steering wheel hub to rear cover retaining screws (1) and tighten to 1 N.m (9 lb in).
  6. Install the steering wheel. Refer to Steering Wheel Replacement .
  7. Install the steering wheel inflatable restraint. Refer to Steering Wheel Inflatable Restraint Module Replacement .
  8. Enable the occupant protection system. Refer to SIR Disabling and Enabling .
