Removal Procedure

    Fig 1: Identifying Steering Wheel Hub To Rear Cover Retaining Screws
    GM1957906Courtesy of GENERAL MOTORS CORP.
  1. Disable the occupant protection system. Refer to SIR Disabling and Enabling .
  2. Remove the steering wheel inflatable restraint. Refer to Steering Wheel Inflatable Restraint Module Replacement .
  3. Remove the steering wheel. Refer to Steering Wheel Replacement .
  4. Remove the steering wheel hub to rear cover screws (1).
    5. Fig 2: View Of Rear Cover, Retaining Lugs & Steering Wheel Hub
    GM1957909Courtesy of GENERAL MOTORS CORP.
    NOTE: Disengage the retaining lugs (2).
  5. Remove the rear cover (1) from the steering wheel hub (3).
    6. Fig 3: Identifying Steering Wheel Hub To Steering Wheel Audio Control Switch Assembly Retaining Screws
    GM1957911Courtesy of GENERAL MOTORS CORP.
  6. Remove the steering wheel hub to steering wheel audio control switch assembly screws (1).
  7. Remove the steering wheel audio control switch assembly harness grounding screw (2).

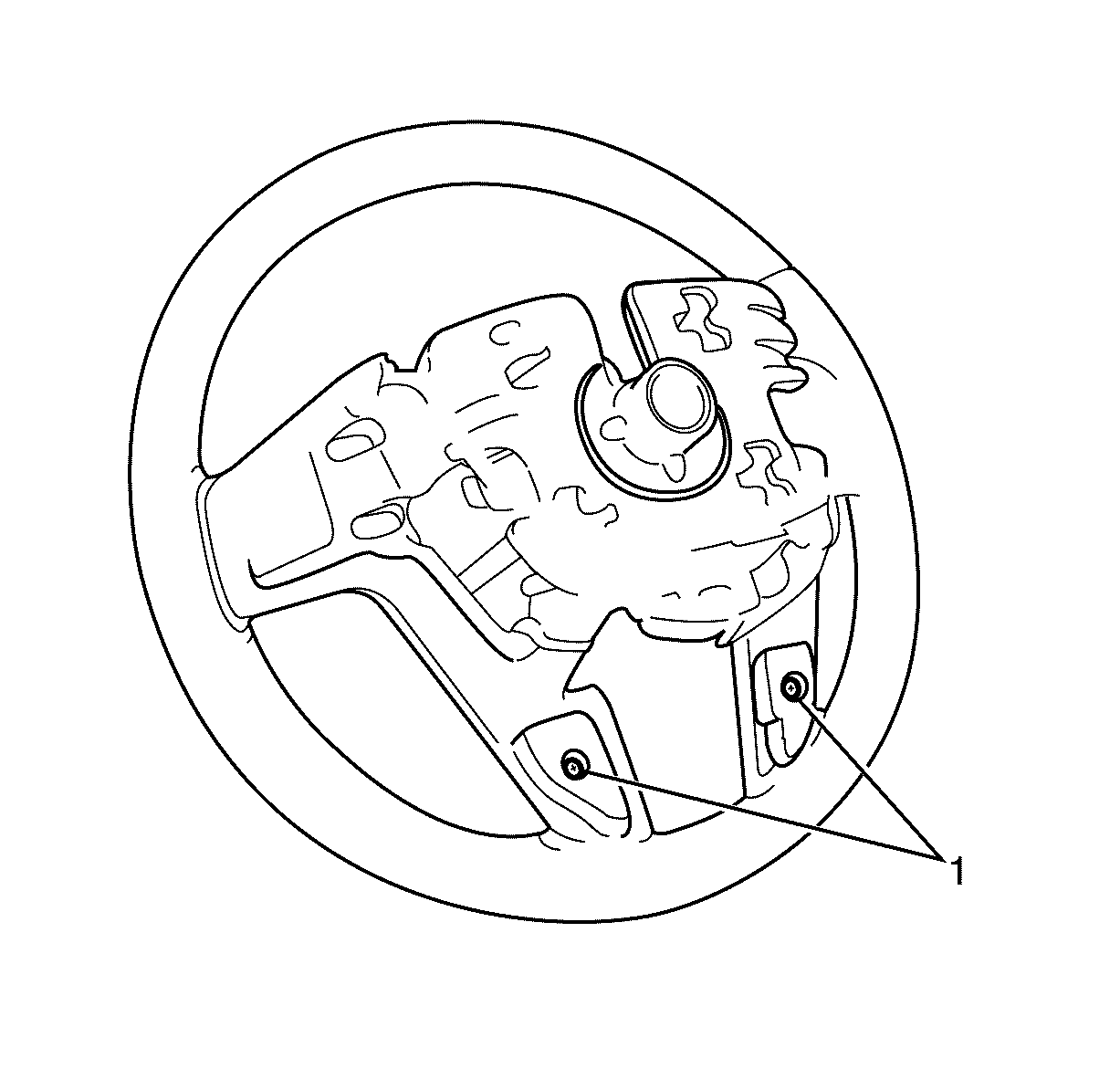

    8. Fig 4: Identifying Steering Wheel Hub To Steering Wheel Spoke Trim Retaining Screws
    GM1957922Courtesy of GENERAL MOTORS CORP.
  8. Remove the steering wheel hub to steering wheel spoke trim retaining screws (1).
  9. Remove the steering wheel audio control switches from the steering wheel hub assembly.
