Remote Function Schematics

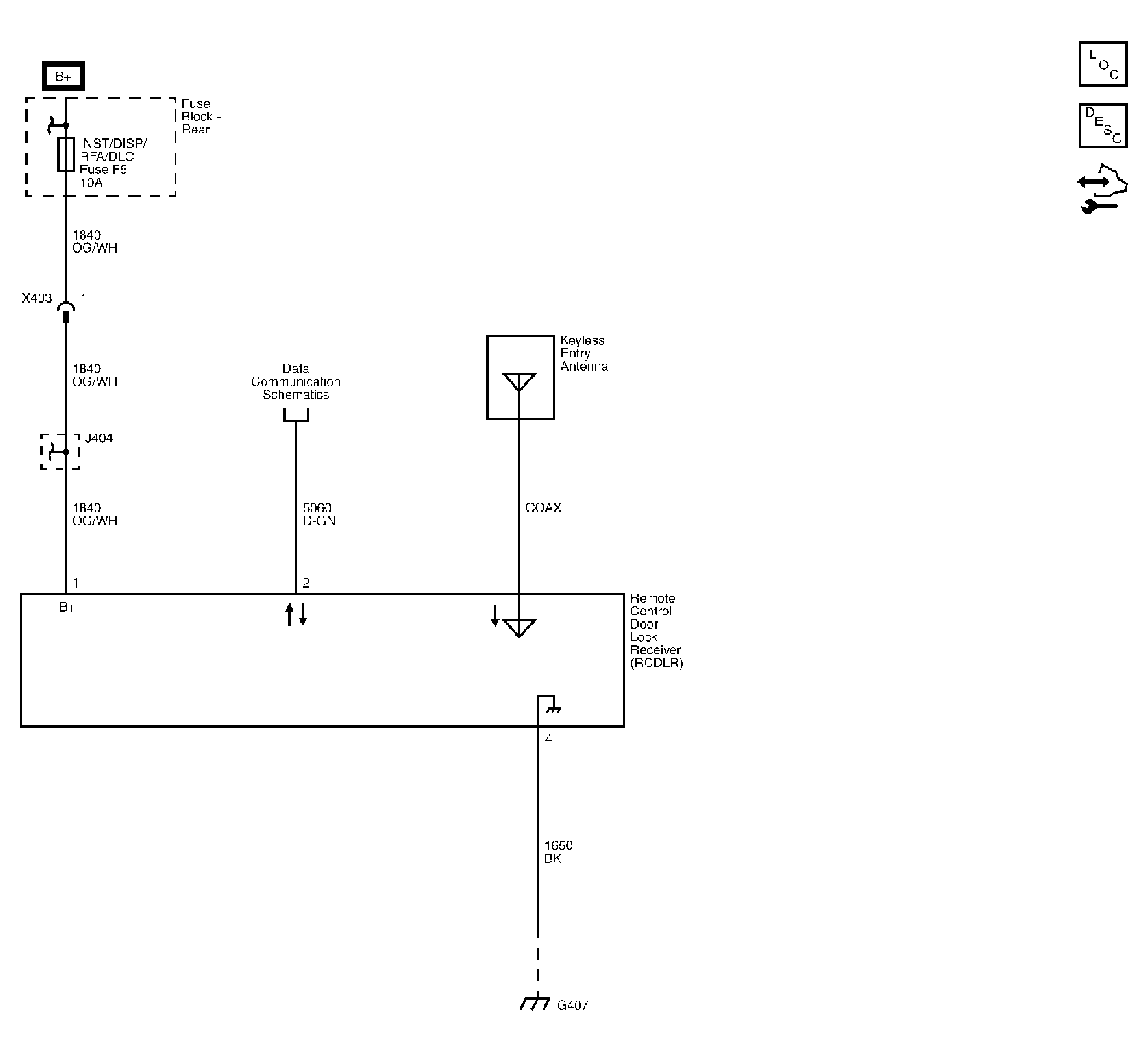

Fig 1: Keyless Entry
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
