Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Engine Compartment (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Engine Compartment (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Engine Compartment (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Compartment (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

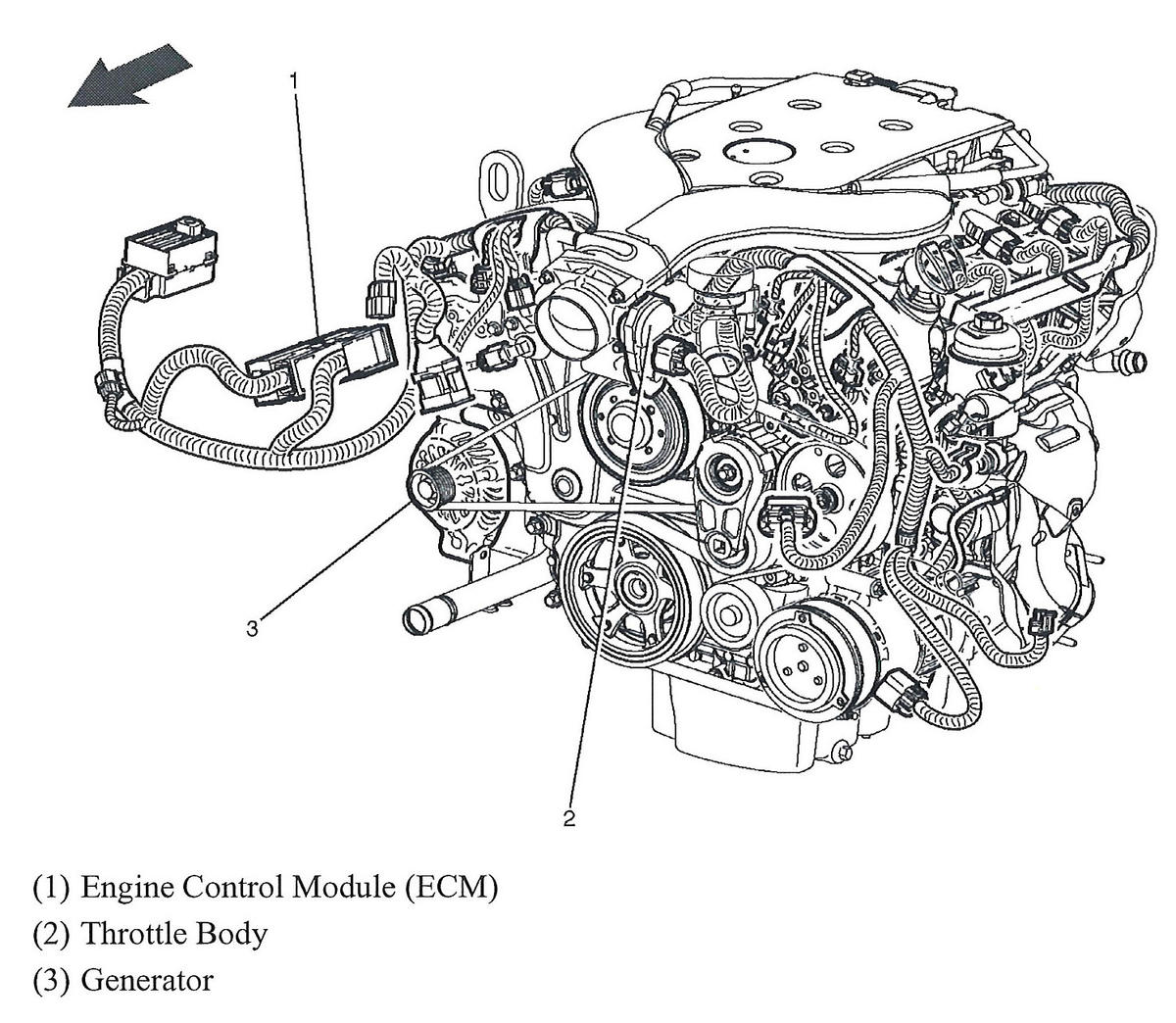

Fig 7: Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Engine (V6)
Courtesy of GENERAL MOTORS CORP.

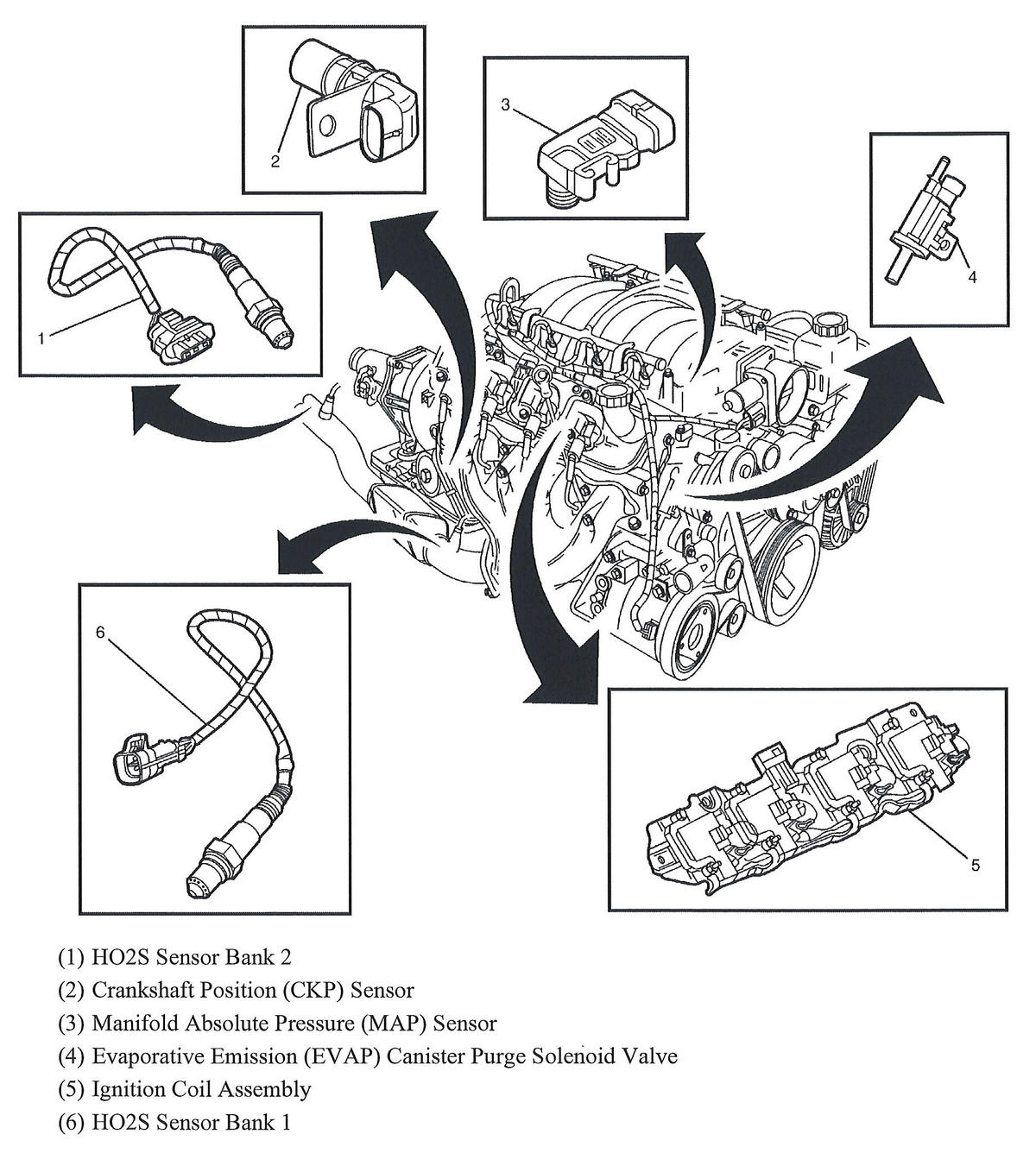

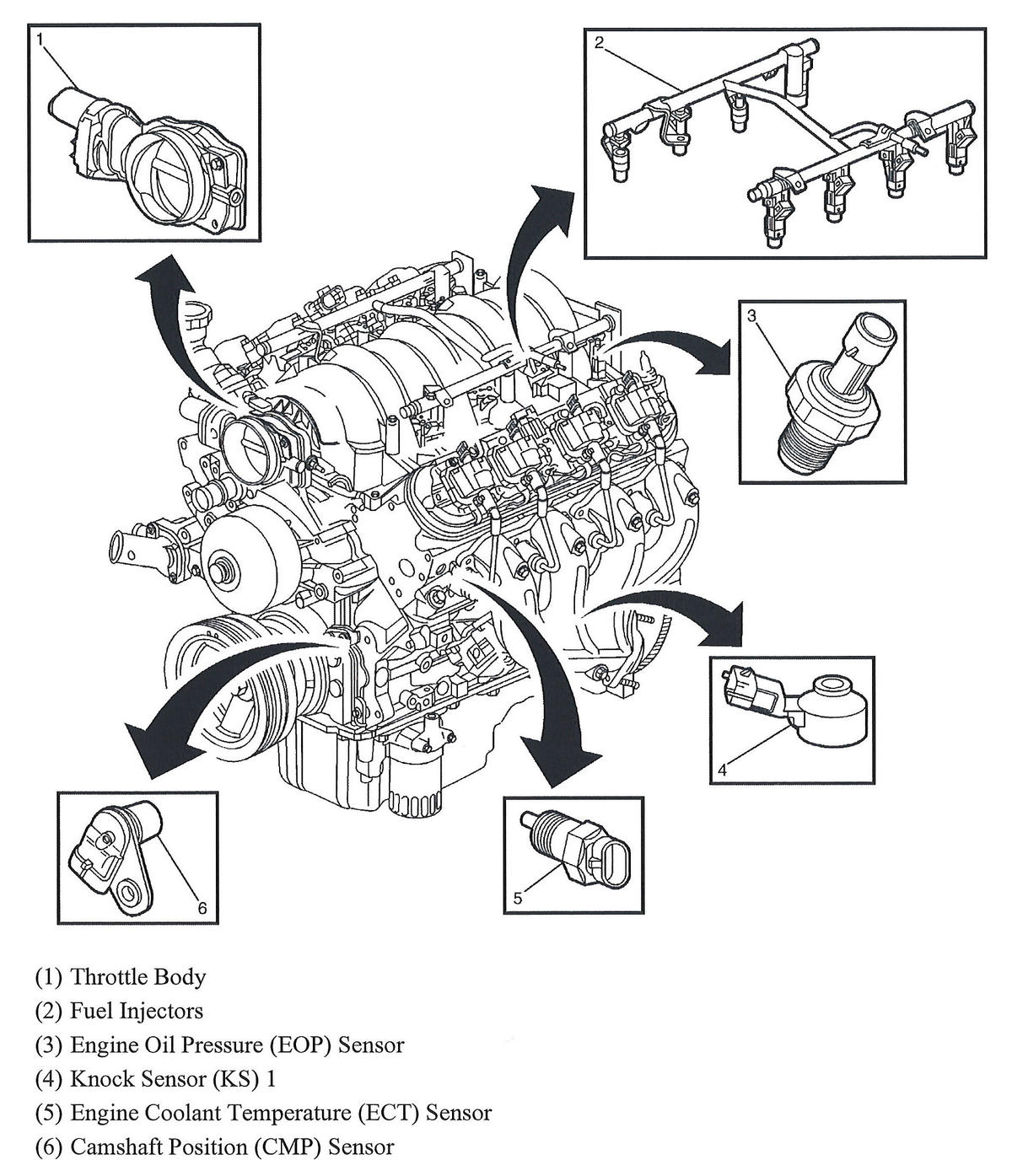

Fig 15: Engine (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Engine (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Engine (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Engine (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Engine (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Engine (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

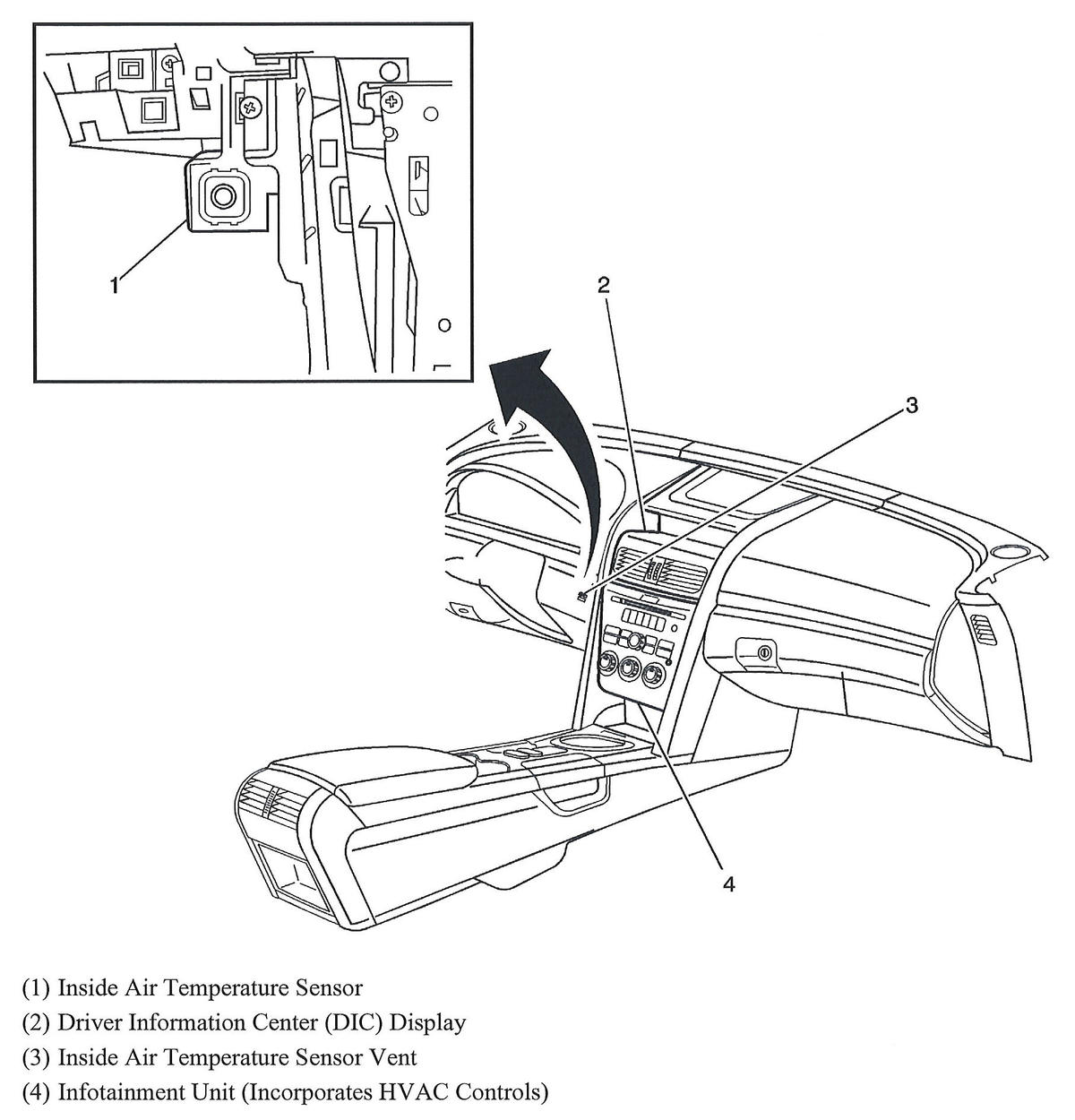

Fig 22: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 23: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 24: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 25: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 27: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 28: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 30: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 31: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 33: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 34: Roof
Courtesy of GENERAL MOTORS CORP.

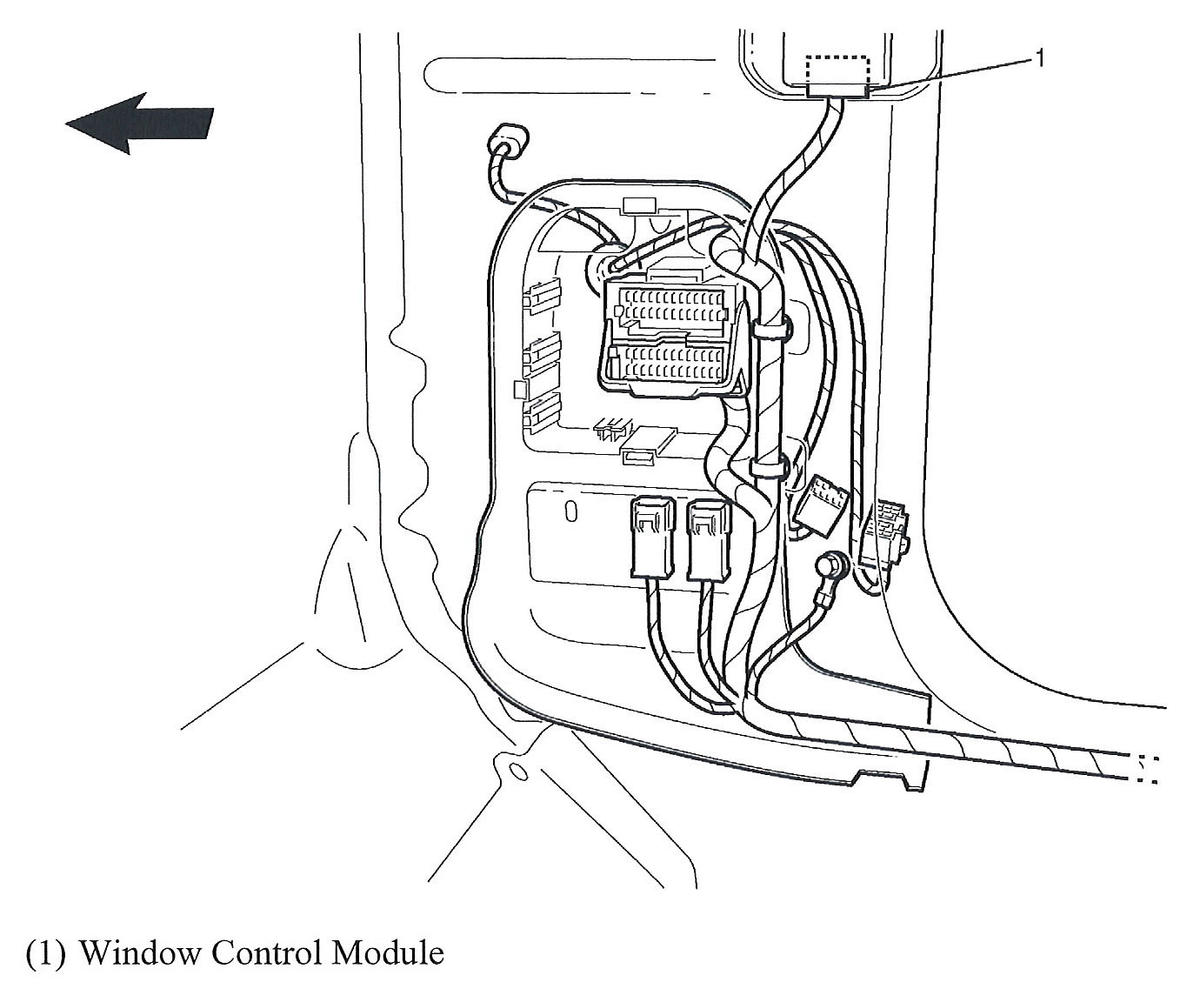

Fig 35: Driver's Door (Front Passenger's Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Left Rear Door (Right Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Under Rear Seats
Courtesy of GENERAL MOTORS CORP.
Fig 38: Rear Axle
Courtesy of GENERAL MOTORS CORP.
Fig 39: Rear Parcel Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 40: Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 41: Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 42: Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 43: Right Side Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Top Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Exhaust System
Courtesy of GENERAL MOTORS CORP.
Fig 46: HVAC Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 47: HVAC Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 48: Front Seats
Courtesy of GENERAL MOTORS CORP.
Fig 49: Vehicle Overview (SRS System)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

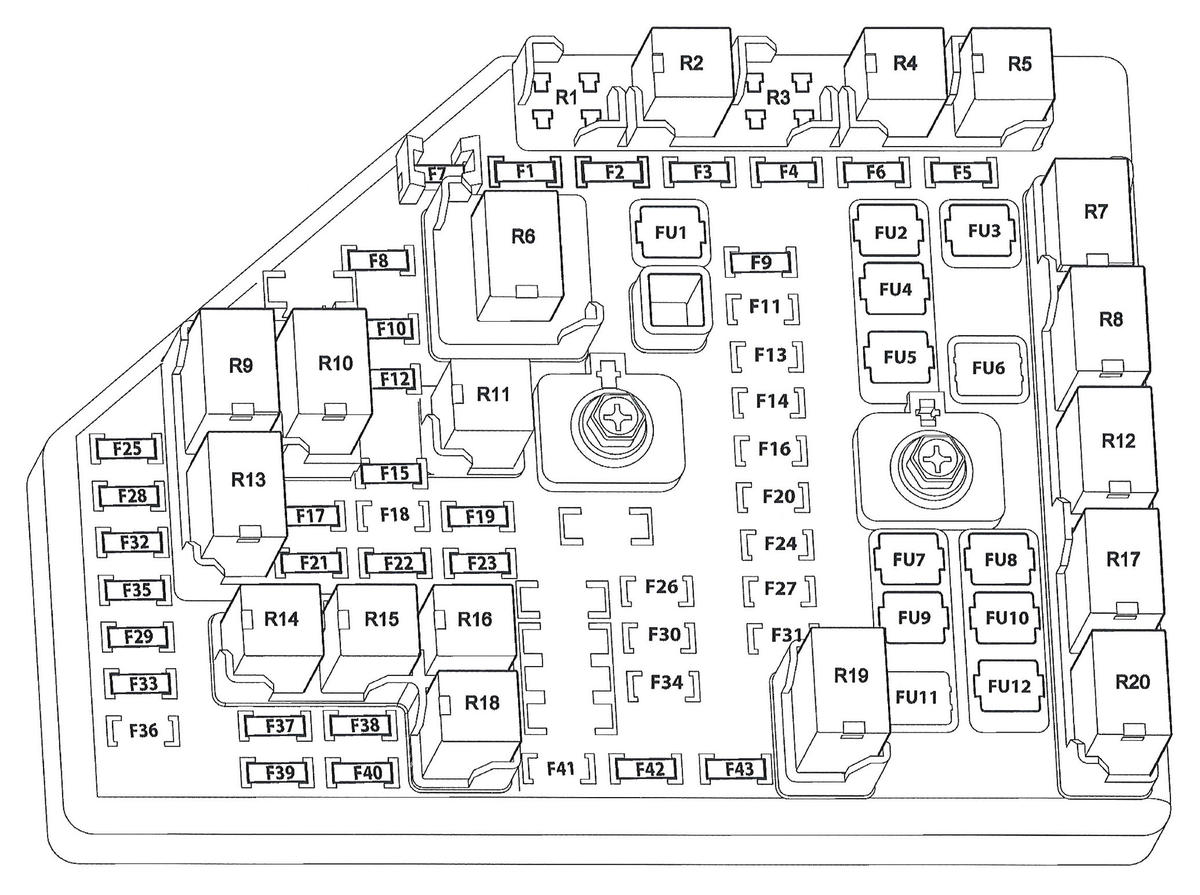

Fig 51: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

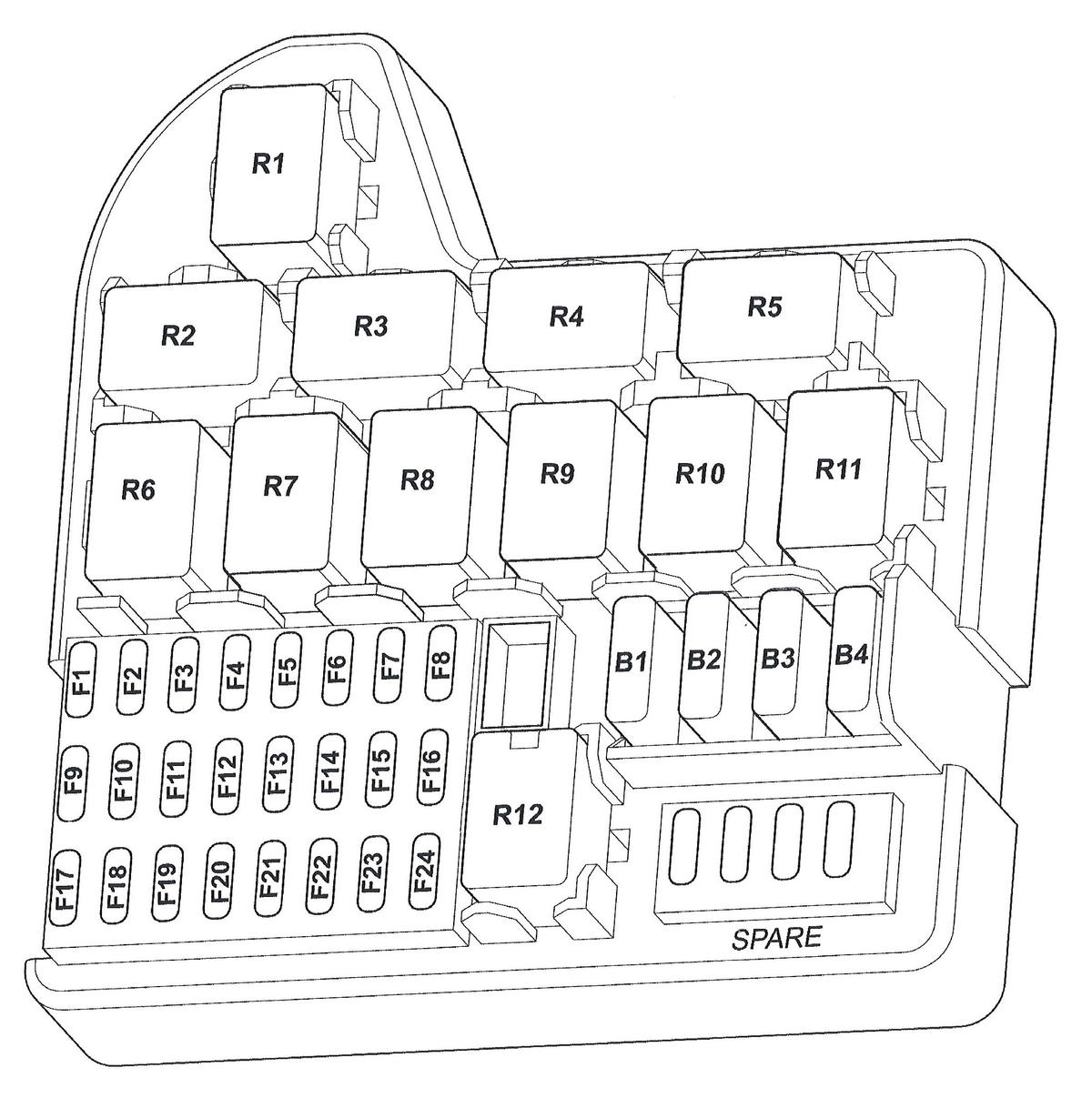

Fig 52: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 53: Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Engine (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 56: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 57: Engine (V8)
Courtesy of GENERAL MOTORS CORP.
