Removal Procedure

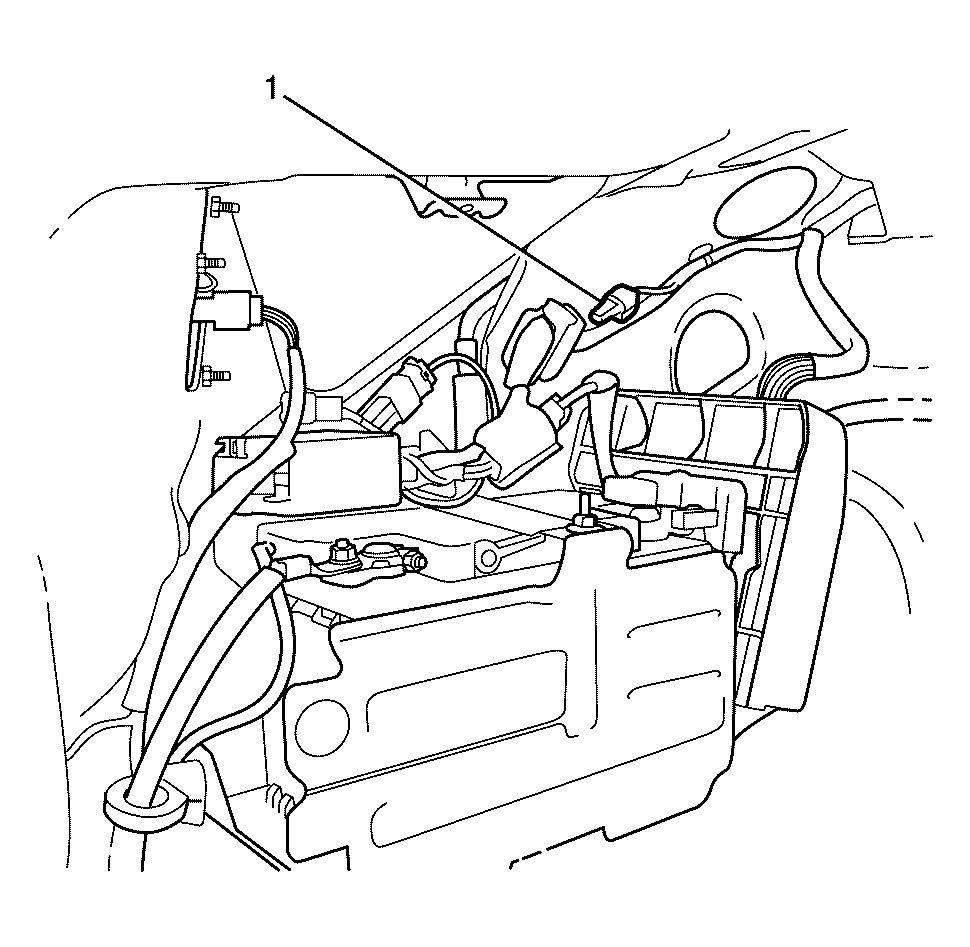

    Fig 1: Locating Data Link Resistor
    GM2094933Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
  2. Remove the tape from the data link resistor (1).
  3. Disconnect the data link resistor (1) from the rear body harness.
