Data Communication Wiring Schematics

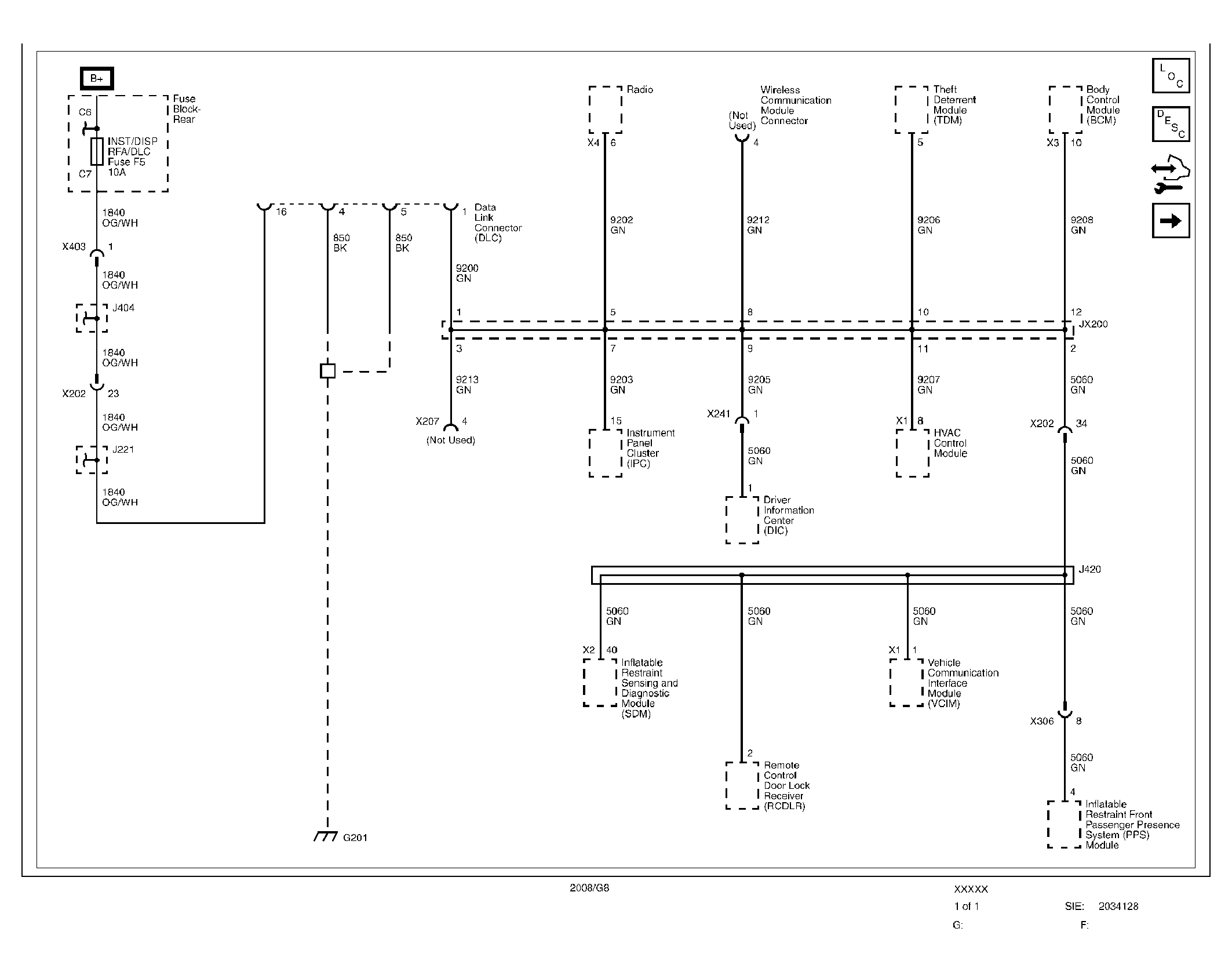

Fig 1: Low Speed Bus Wiring Schematic
GM2034128Courtesy of GENERAL MOTORS CORP.

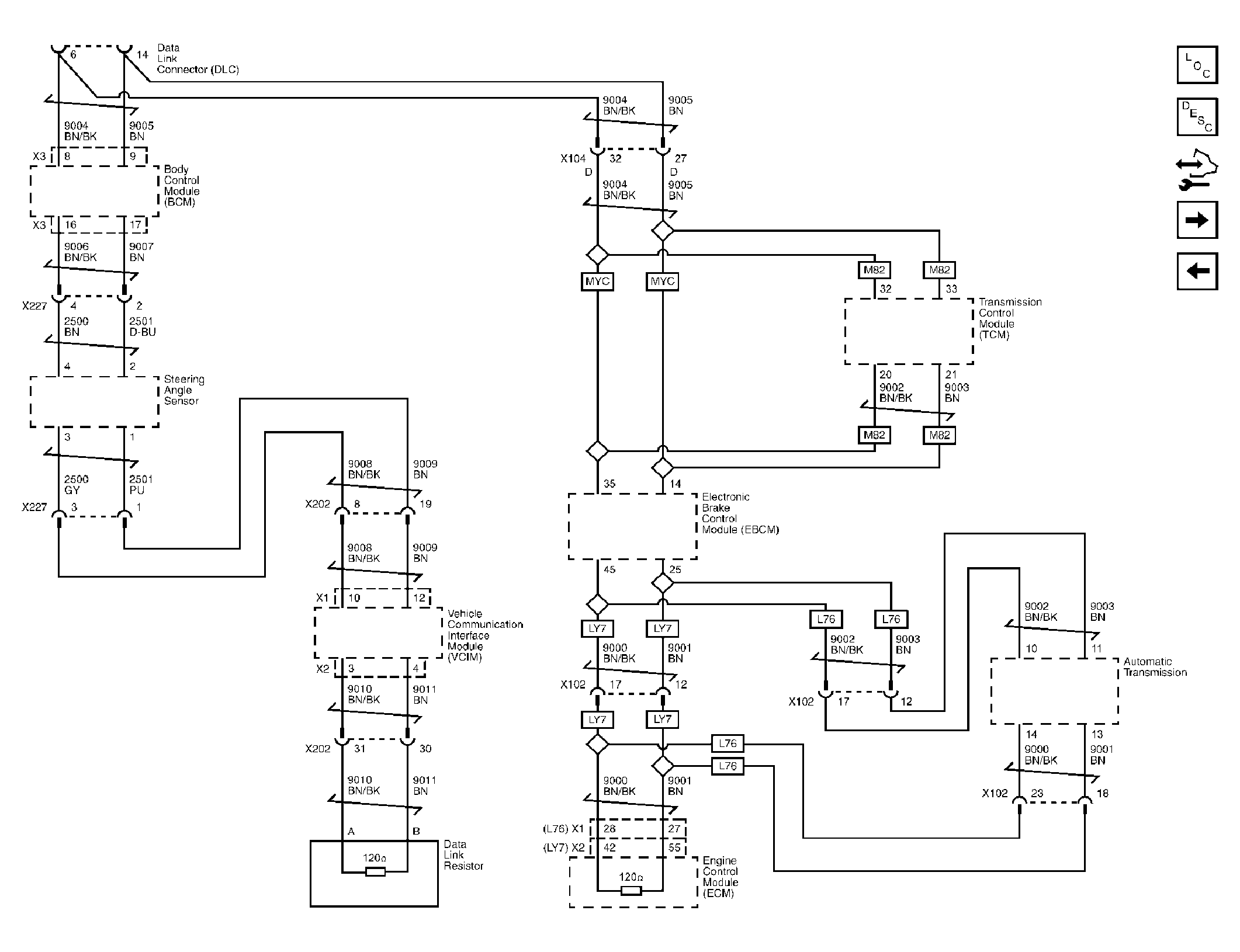

Fig 2: High Speed Bus Wiring Schematic
GM2034127Courtesy of GENERAL MOTORS CORP.

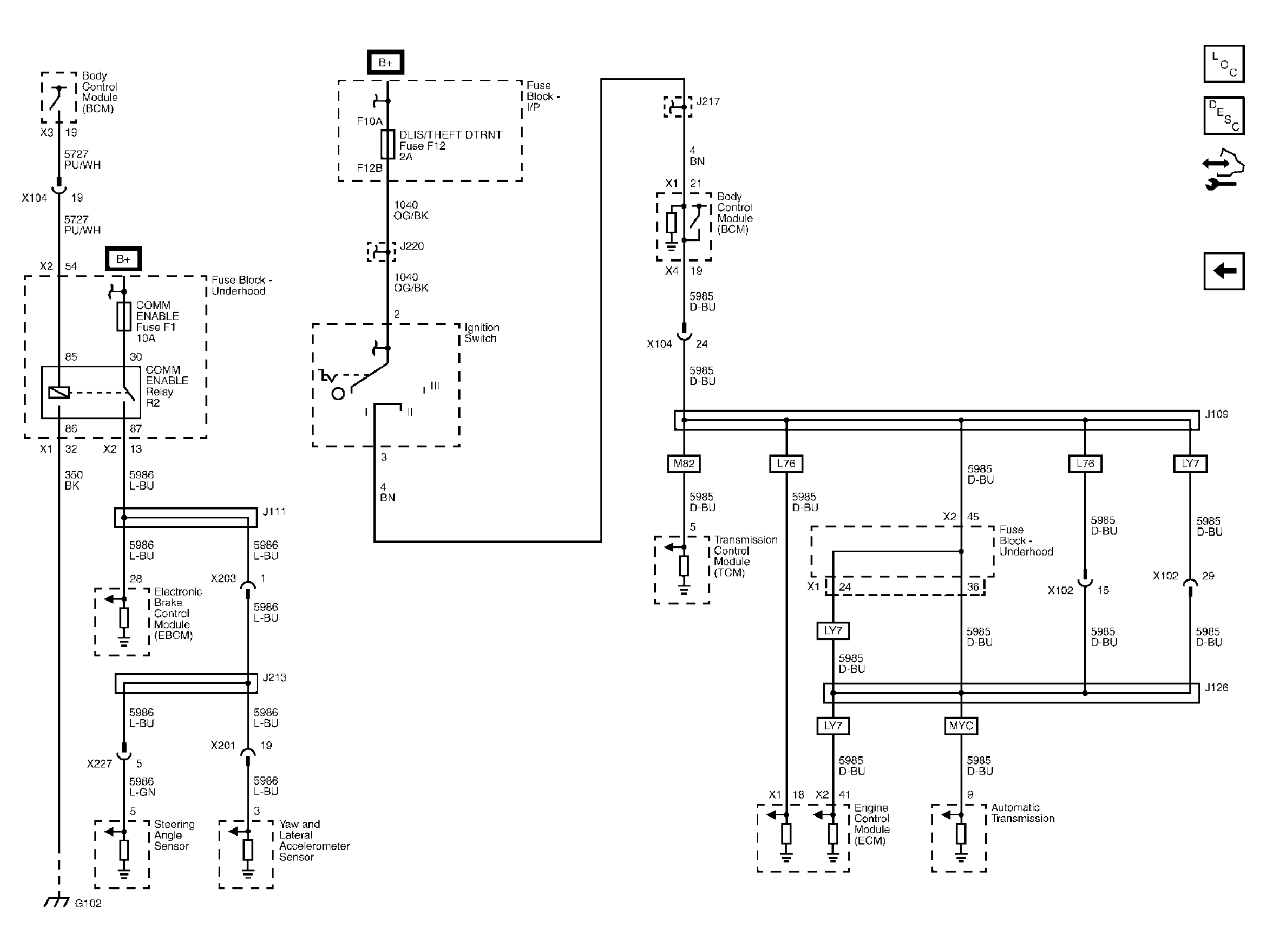

Fig 3: Accessory Wakeup Serial Data Wiring Schematic
GM2074948Courtesy of GENERAL MOTORS CORP.
