Removal Procedure

  1. Remove the closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .

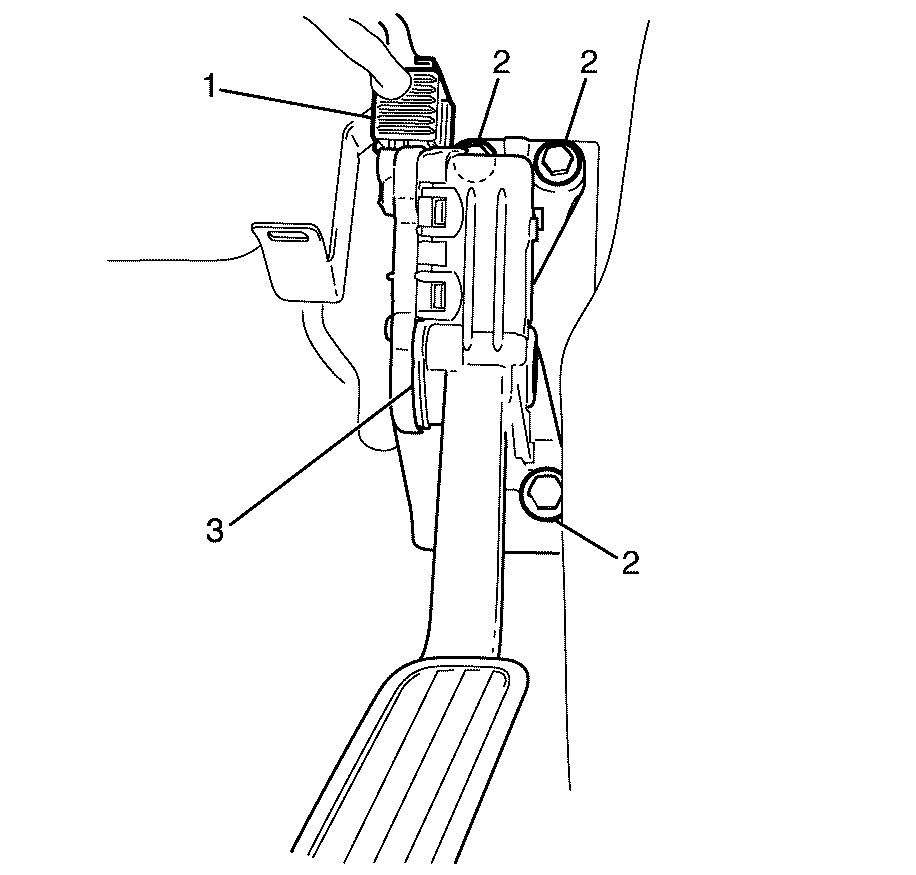

    2. Fig 1: Pedal Switches and Sensors
    GM2045396Courtesy of GENERAL MOTORS CORP.
    CAUTION: Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.
  2. Disconnect the accelerator pedal position (APP) sensor electrical connector (1).
  3. Remove the APP sensor to vehicle retaining screws (2).
  4. Remove the APP sensor (3) from the vehicle.
