Installation Procedure

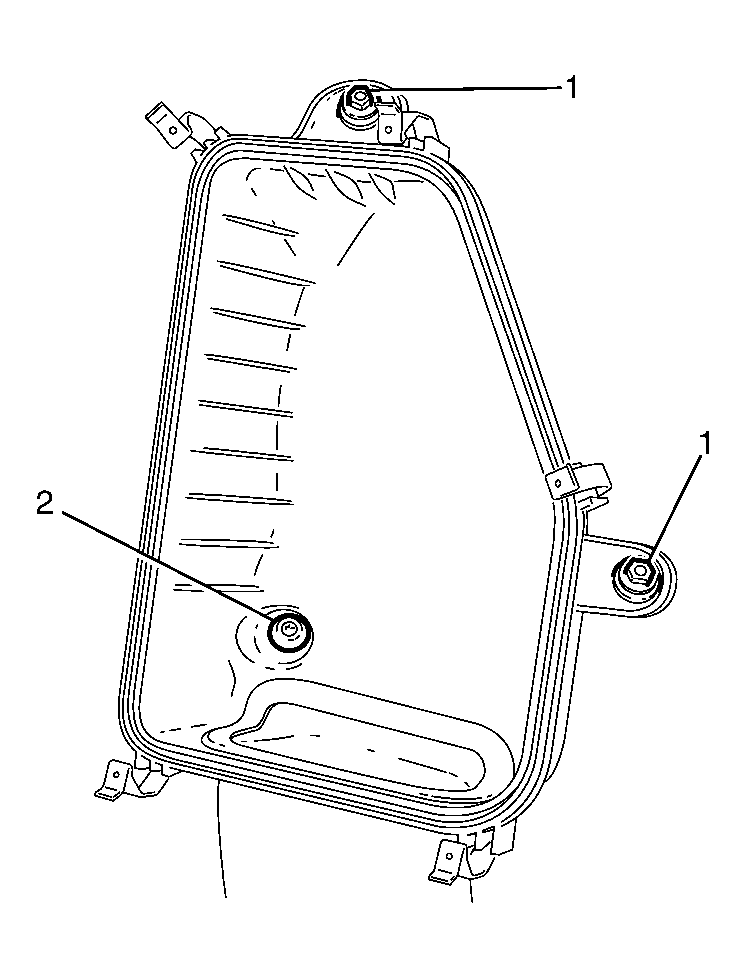

    Fig 1: Identifying Lower Air Cleaner Body To Front Inner Wheelhouse Retaining Nuts
    GM1949740Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner to the vehicle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the air cleaner to chassis retaining bolts (1) and tighten to 9 N.m (78 lb in).
  3. Install the air cleaner element. Refer to Air Cleaner Element Replacement .
  4. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .
