Installation Procedure

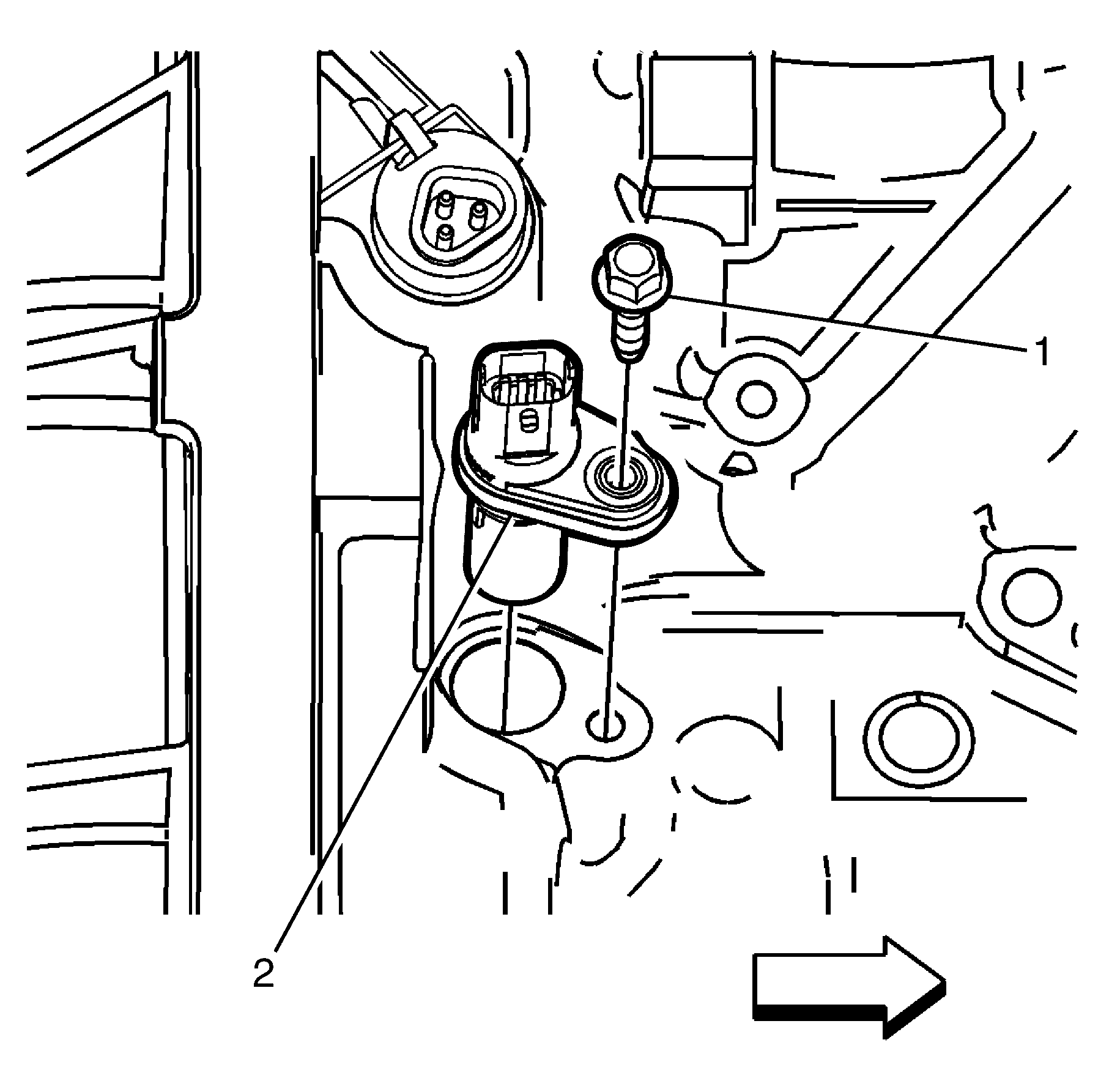

    Fig 1: Identifying CKP Sensor To Engine Block Retaining Bolt
    GM1949785Courtesy of GENERAL MOTORS CORP.
  1. Install the CKP sensor (2) to the engine block.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the CKP sensor to engine block retaining bolt (1) and tighten to 10 N.m (89 lb in).

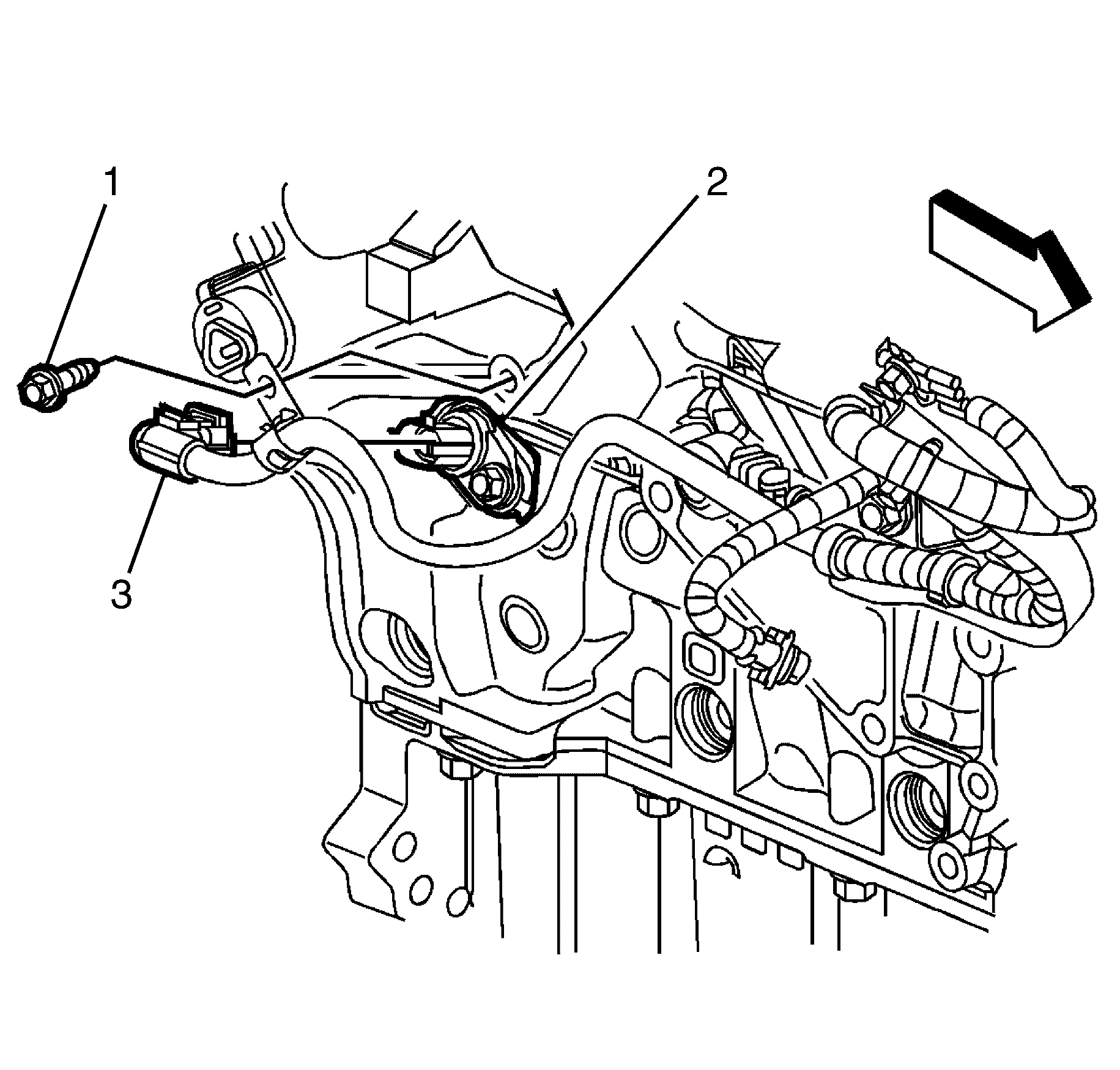

    3. Fig 2: Identifying CKP Electrical Connector
    GM1949783Courtesy of GENERAL MOTORS CORP.
  3. Connect the CKP electrical connector (3) to the CKP sensor.
  4. Lower the vehicle.
