Removal Procedure

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

NOTE: The fuel system hose/pipes are serviceable individually or as a complete fuel/brake bundle assembly. The following procedure is servicing the fuel hose/pipes individually.

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Before you service any fuel system connection, relieve the fuel system pressure. Refer to the Fuel Pressure Relief .
Remove the exhaust and exhaust heat shields. Refer to Exhaust System Replacement (V6 - For Access) or Exhaust System Replacement (V6 - Complete) .
Remove the engine. Refer to Engine Replacement .
Disconnect the fuel and evaporative emission (EVAP) lines at the fuel tank. Refer to Fuel Tank Replacement .
Disconnect the fuel and EVAP lines at the engine compartment.

Fig 1: Identifying Retaining Nuts & Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the retaining bolts (1) and the retaining nuts (1) securing the rear stone guard.

Fig 2: Locating Fuel Line Bracket Pop Rivets

Courtesy of GENERAL MOTORS CORP.

Remove all the fuel line bracket pop rivets securing the fuel and EVAP pipes to the vehicle body.

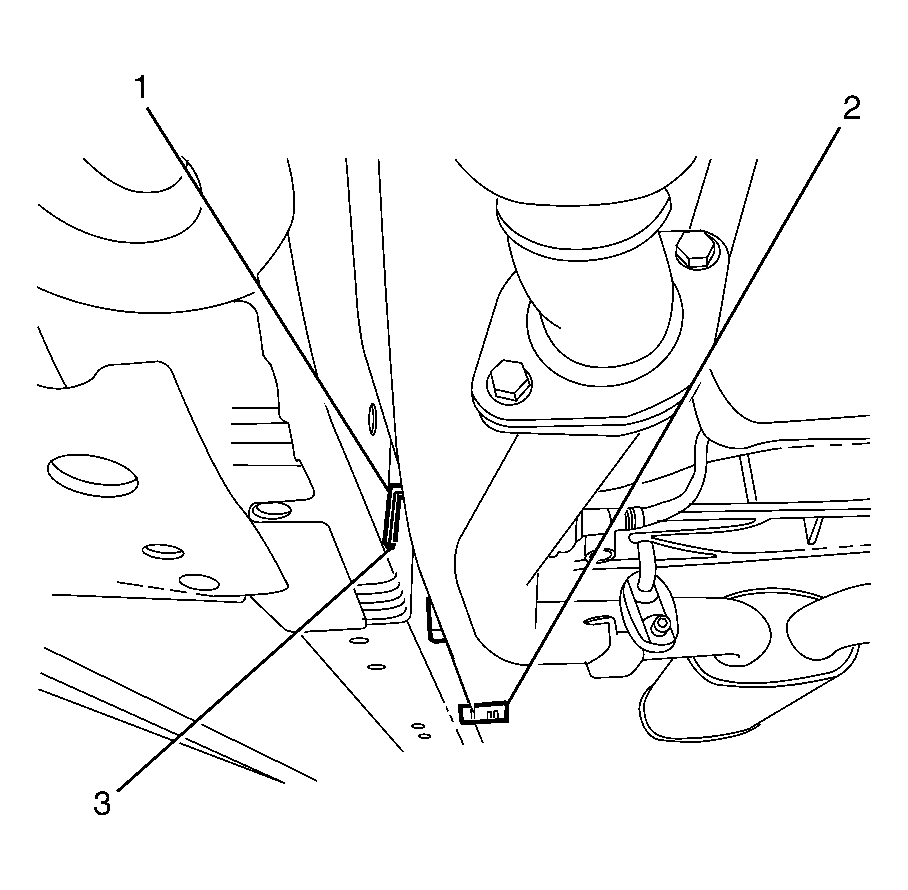

Fig 3: Identifying Fuel Line Bracket Pop Rivets

Courtesy of GENERAL MOTORS CORP.

Remove all the fuel line bracket pop rivets (1, 2, 3) securing the fuel and EVAP pipes to the body tunnel.
Remove the fuel and EVAP lines from the vehicle.
