Fuel Level Sensor Replacement: Installation
Courtesy of GENERAL MOTORS CORP.

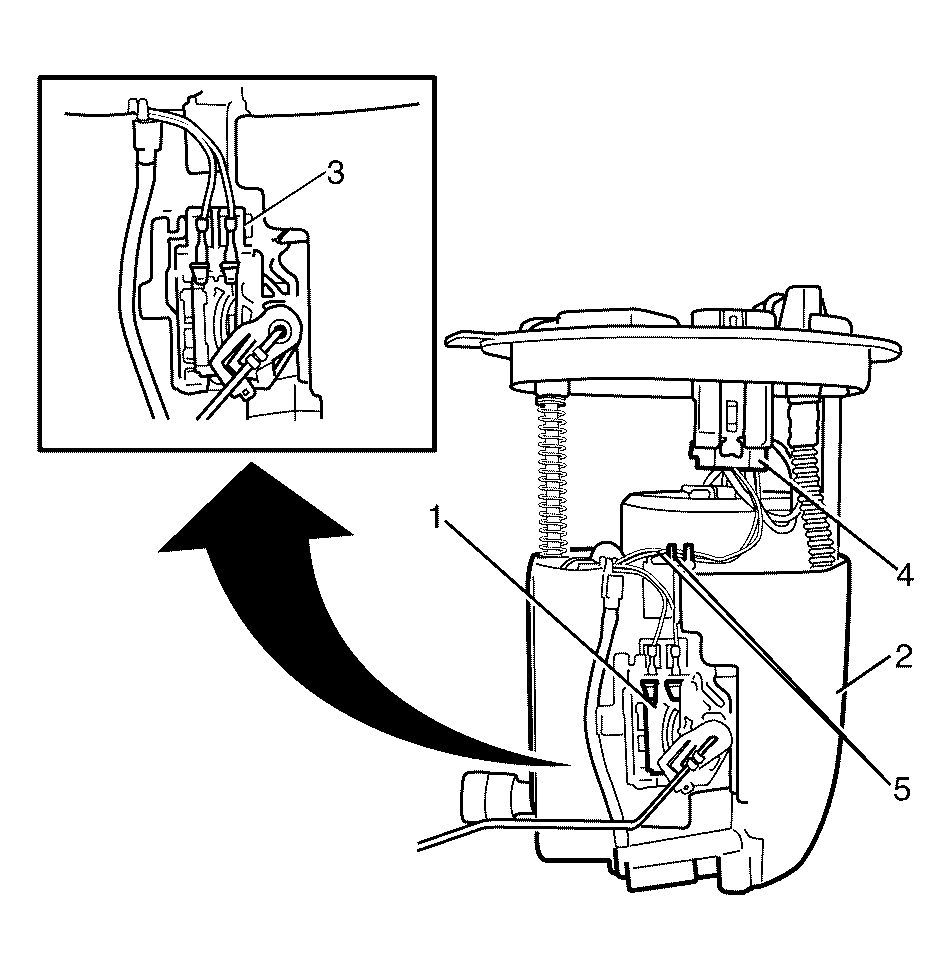

- Locate and install the fuel tank level sensor (1) to the primary fuel tank module assembly (2). Make sure that the locking clip (3) engages.
- Connect the fuel level sensor connector (4) and route the wiring through the harness securing clips (5).
- Install the fuel level sensor to the primary fuel tank module assembly.
- Install the primary fuel tank module assembly to the fuel tank. Refer to Primary Fuel Tank Module Replacement .
- Install the fuel tank. Refer to Fuel Tank Replacement .
