Installation Procedure

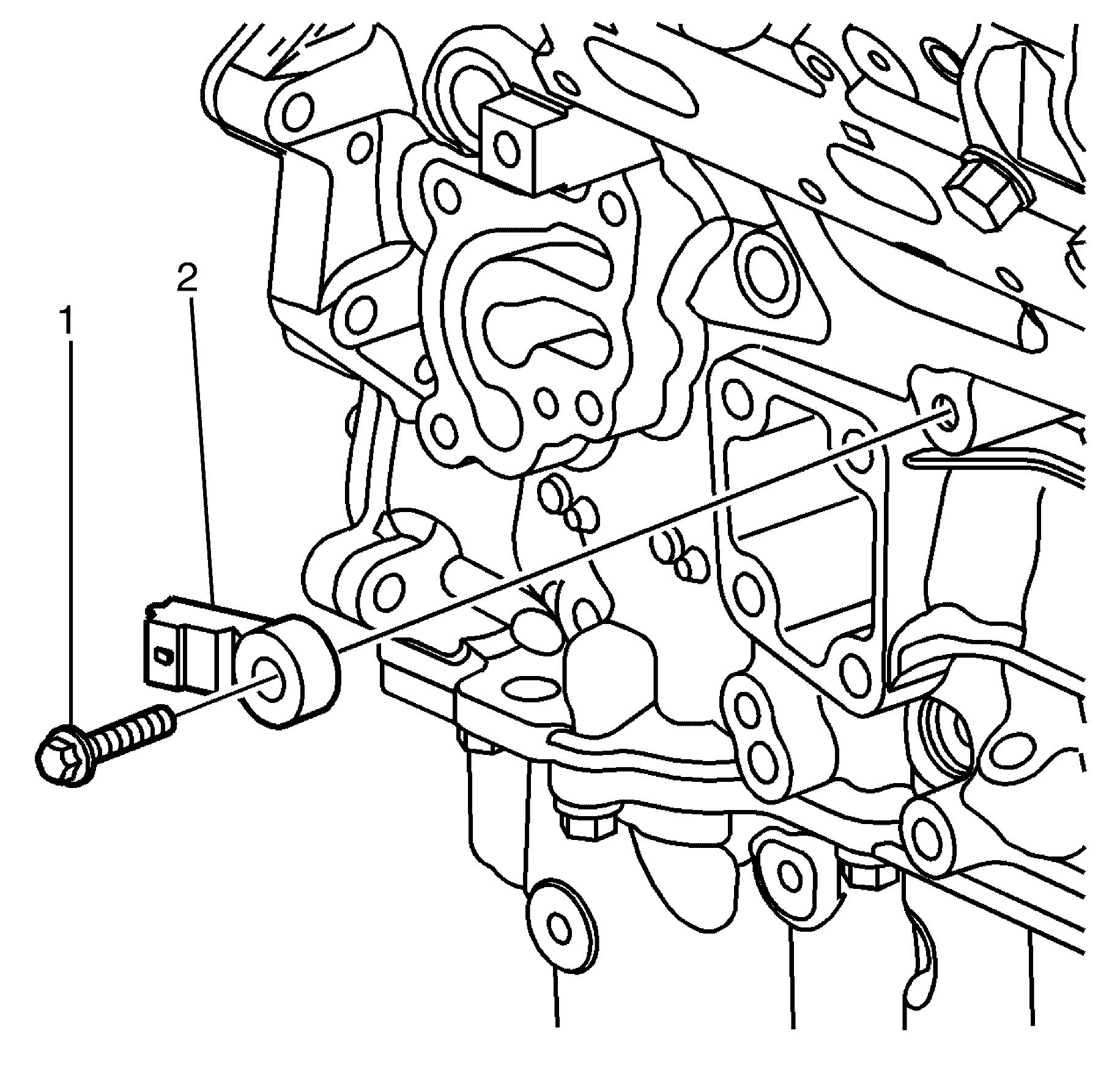

    Fig 1: Identifying KS To Engine Block Retaining Bolt
    GM1949901Courtesy of GENERAL MOTORS CORP.
  1. Install the KS (2) to the engine.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the KS to engine block retaining bolt (1) and tighten to 23 N.m (17 lb ft).

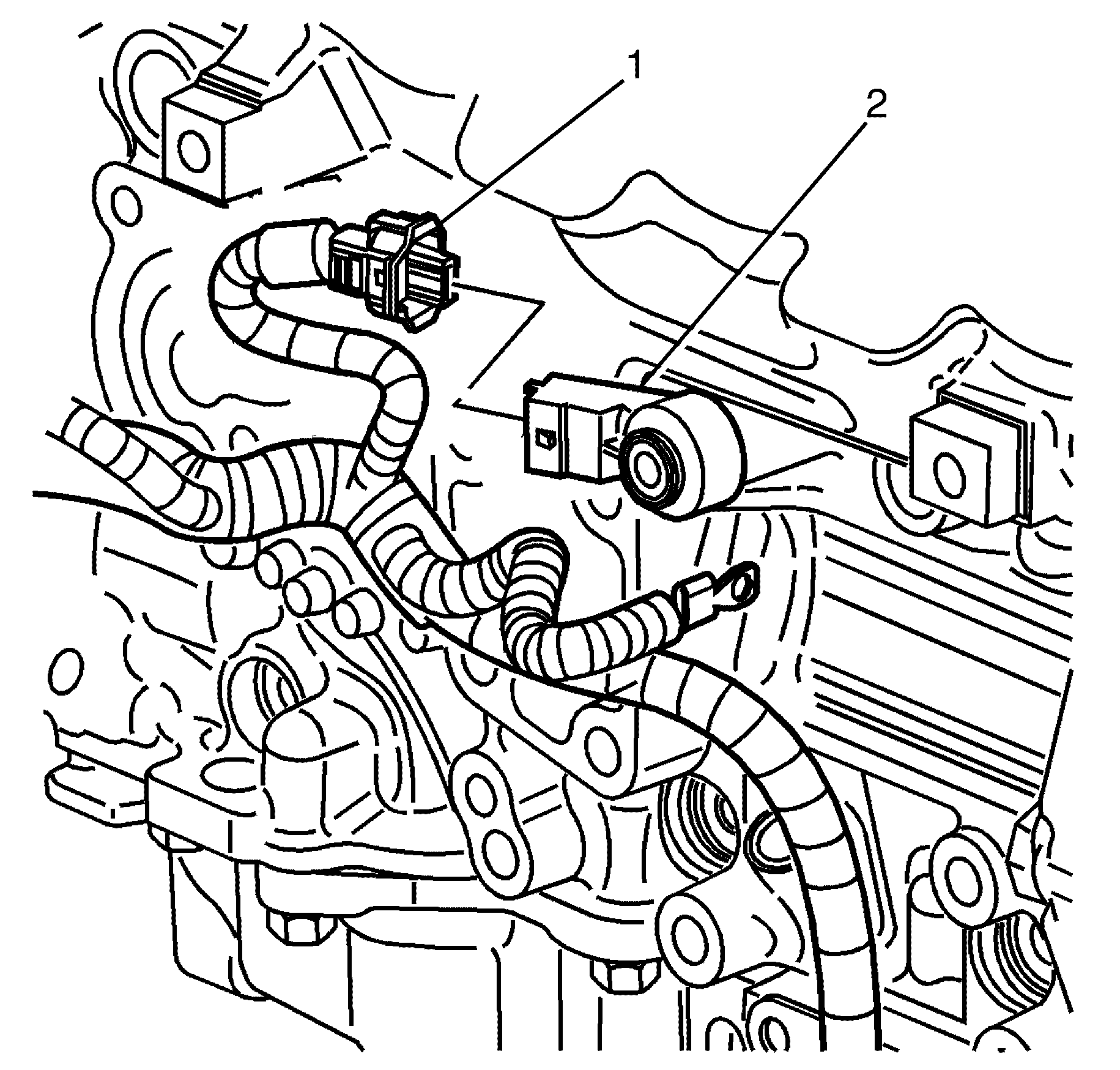

    3. Fig 2: Identifying KS Electrical Connector & K Sensor
    GM1949900Courtesy of GENERAL MOTORS CORP.
  3. Install the KS electrical connector (1) to the KS (2).
  4. Lower the vehicle.
