Installation Procedure

WARNING: In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

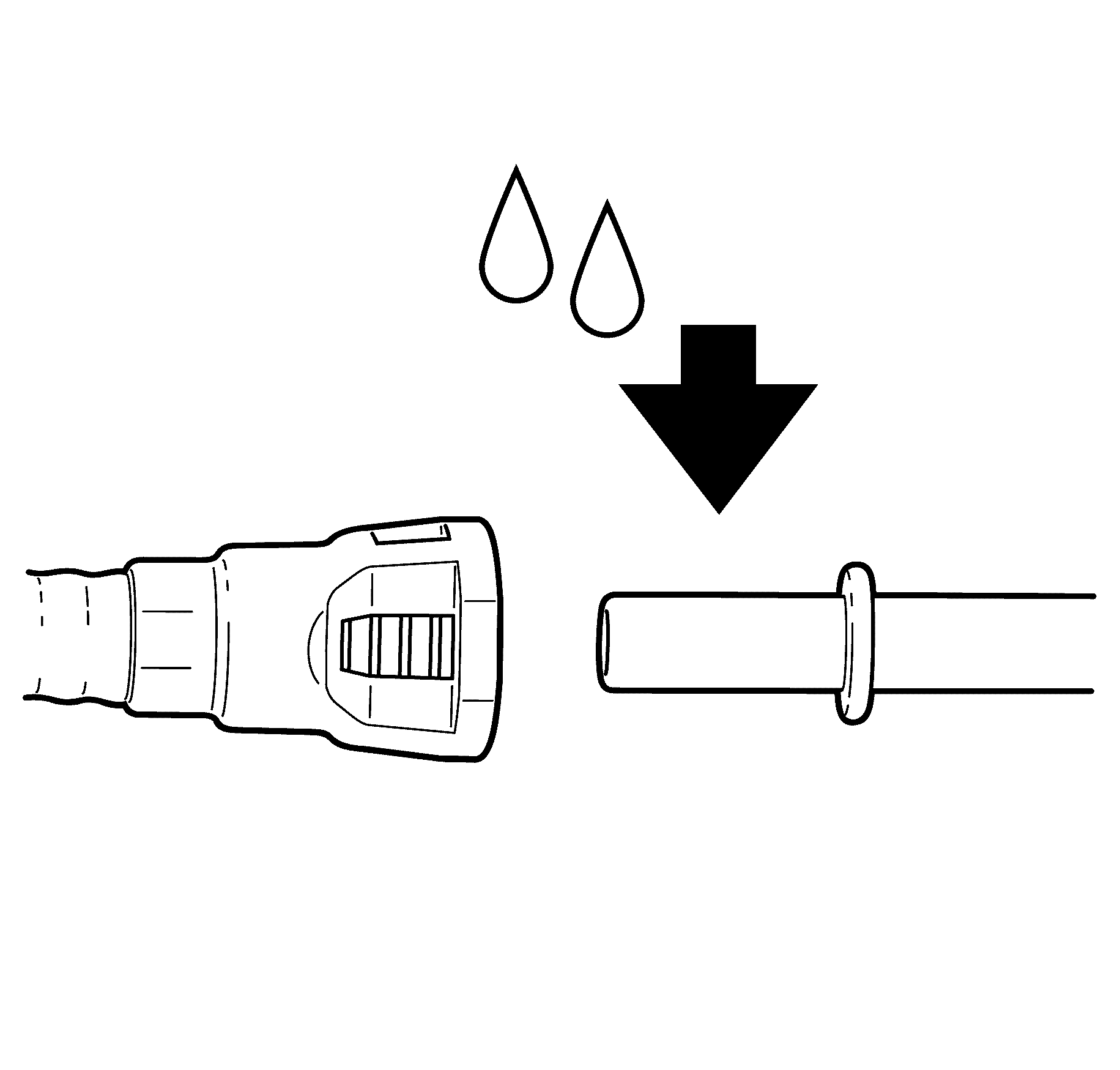

Fig 1: Locating Male Pipe End

Courtesy of GENERAL MOTORS CORP.

Apply a few drops of clean engine oil to the male pipe end.

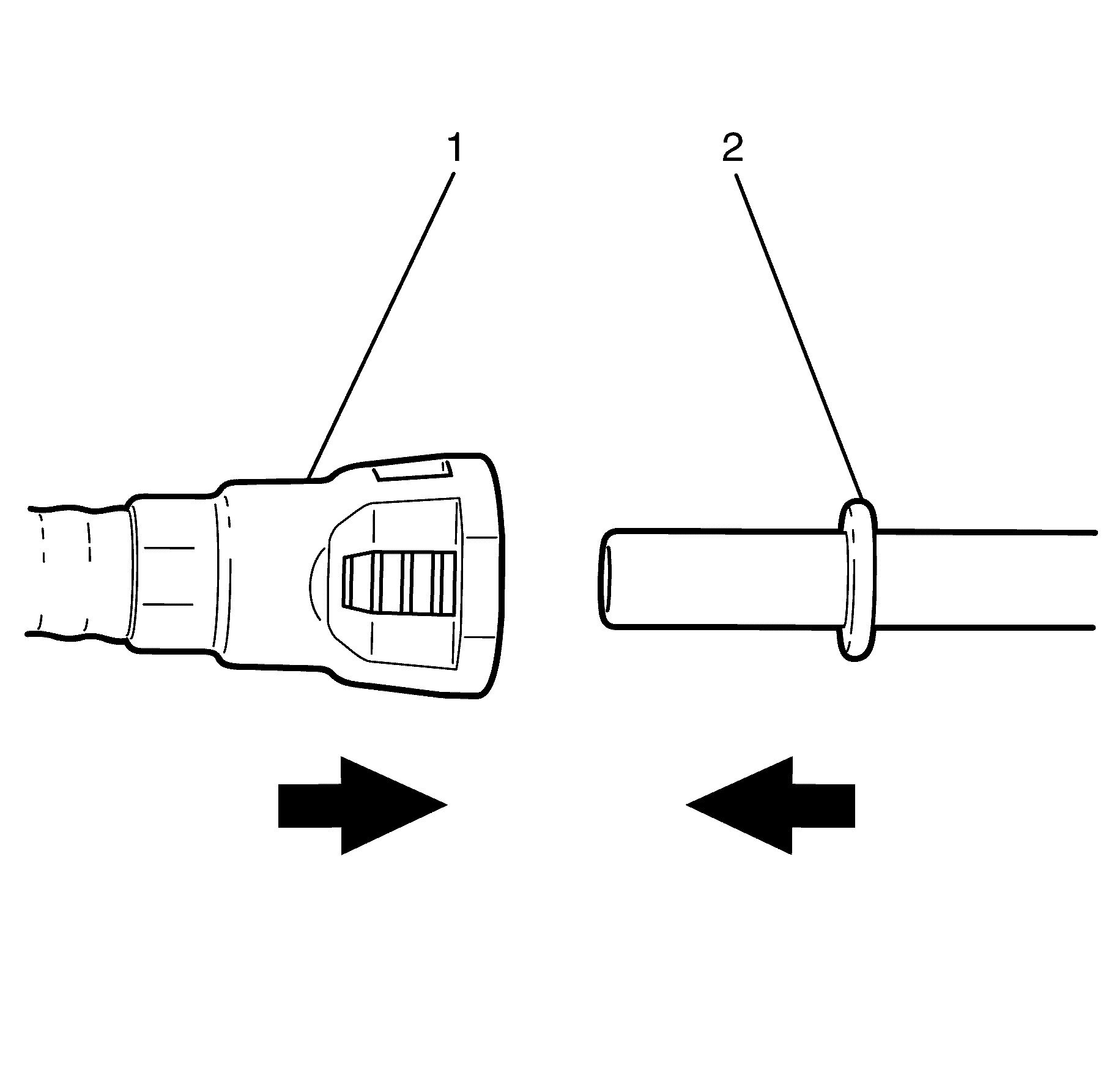

Fig 2: Locating Quick-Connect Fitting

Courtesy of GENERAL MOTORS CORP.

Push both sides (1 & 2) of the quick-connect fitting together to cause the retaining tabs/fingers to snap into place.

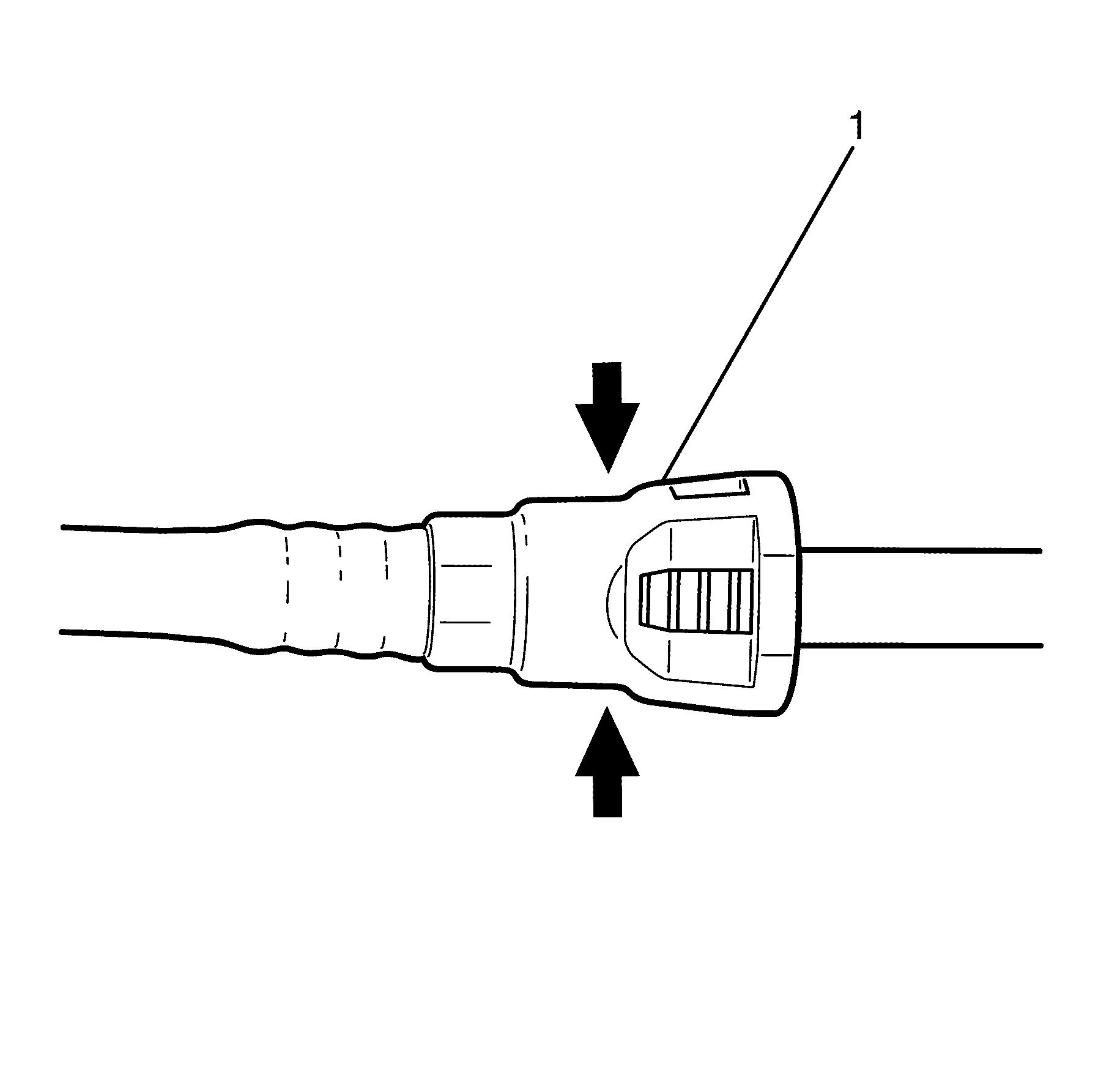

Fig 3: Identifying Quick Connect Fitting

Courtesy of GENERAL MOTORS CORP.

Pull on both sides of the quick-connect fitting (1) to make sure the connection is secure.
Inspect for leaks using the following procedure:
1. Turn the ignition ON, with the engine OFF for 2 seconds.
2. Turn the ignition OFF, for 10 seconds.
3. Turn the ignition ON, with the engine OFF for 2 seconds.
4. Turn the ignition OFF.
5. Inspect for leaks.
