Removal Procedure

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

WARNING: Refer to Safety Glasses Warning .

Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
Blow dirt out of the fitting using compressed air.

Fig 1: Identifying Quick Connect Fitting

GM1949910

Courtesy of GENERAL MOTORS CORP.

Install the quick connect tool over the quick connect fitting (1).

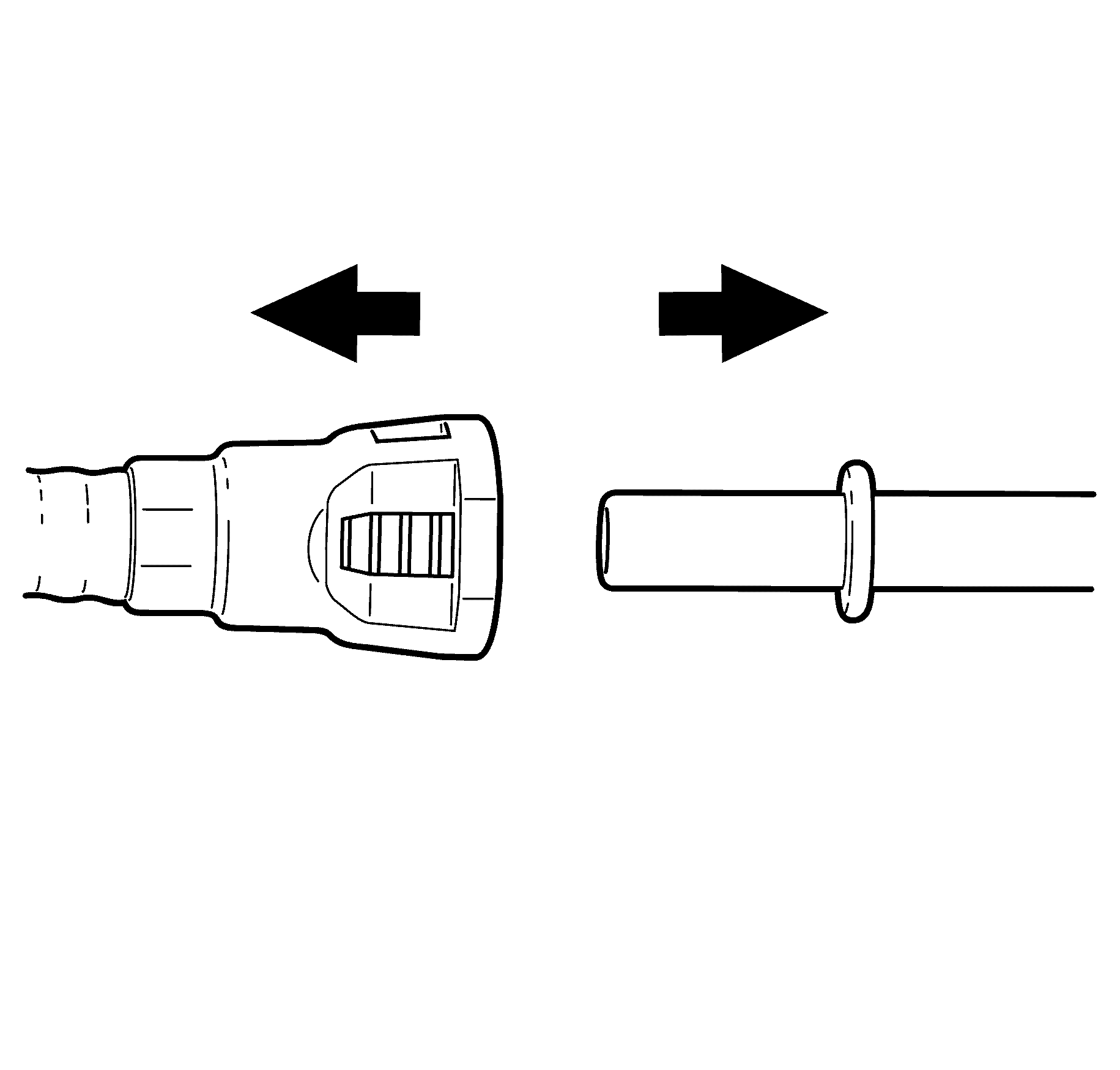

Fig 2: Locating Male Pipe End

GM1949912

Courtesy of GENERAL MOTORS CORP.

Pull the connection apart.
Using a clean shop towel, wipe off the male pipe end.
Inspect both ends of the fitting for dirt and burrs.
Clean or replace the components as required.
