Object Detection Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

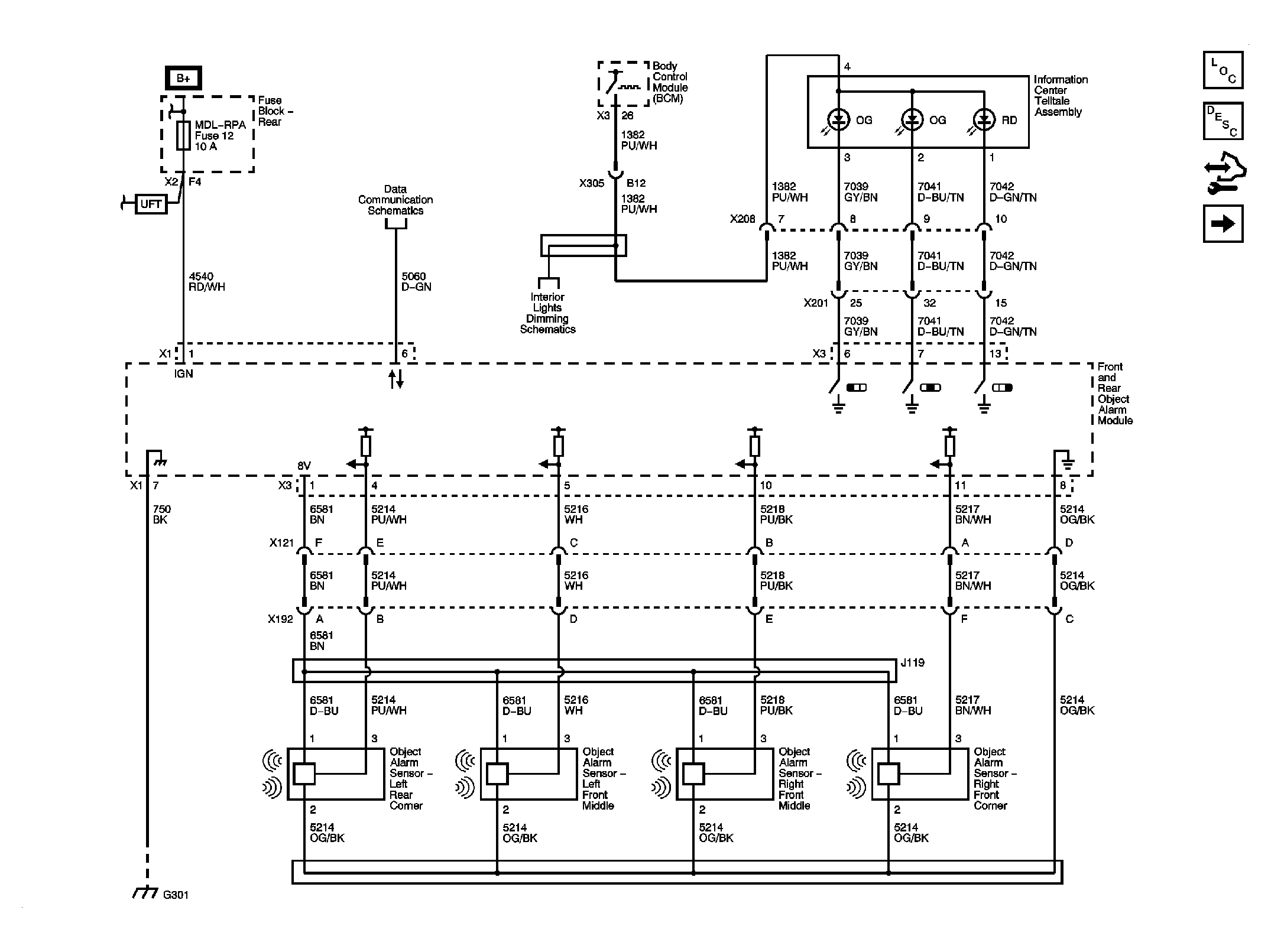

Fig 1: Front Park Assist (UFR)

Courtesy of GENERAL MOTORS CORP.

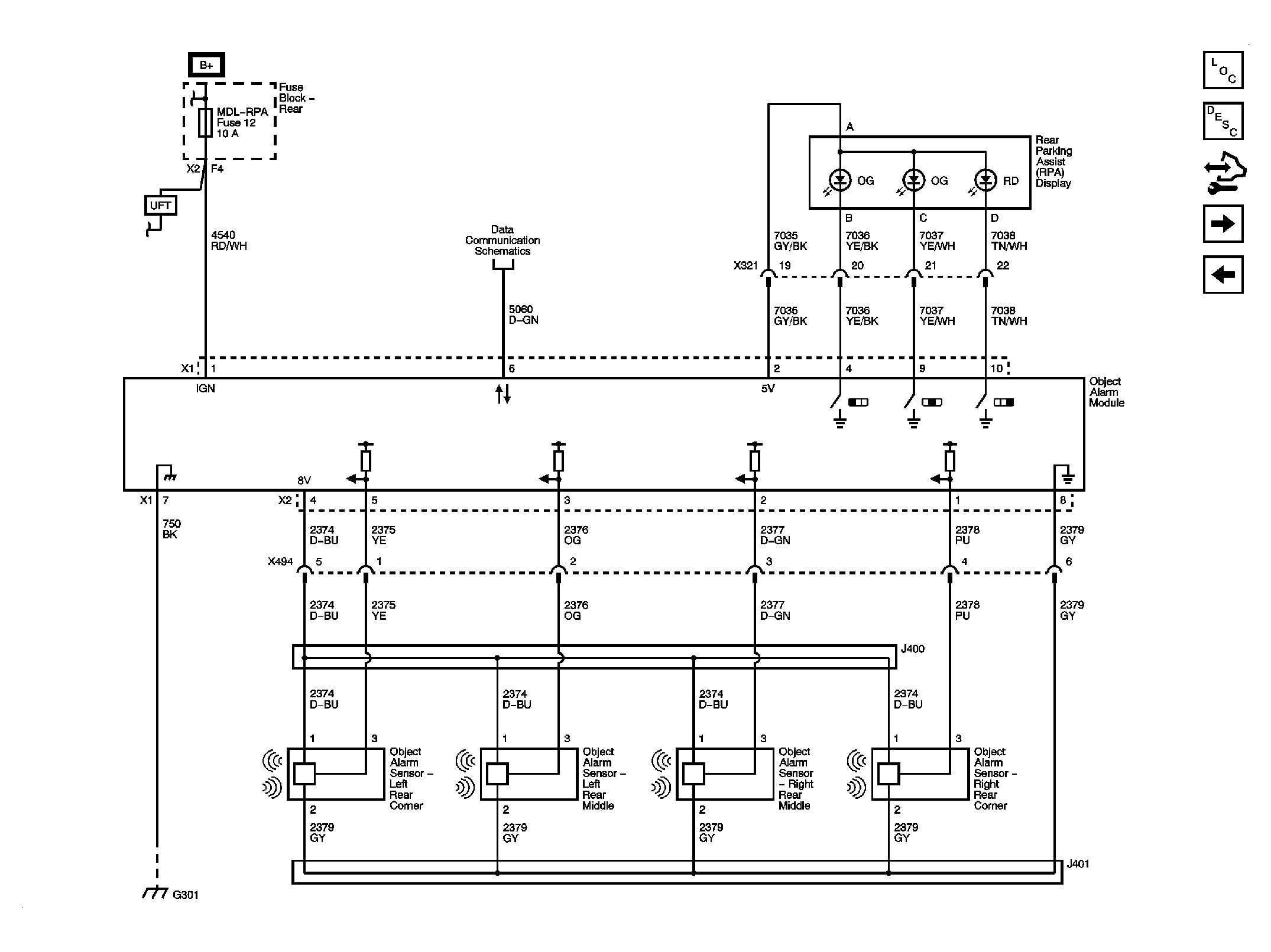

Fig 2: Rear Park Assist (UFR)

Courtesy of GENERAL MOTORS CORP.

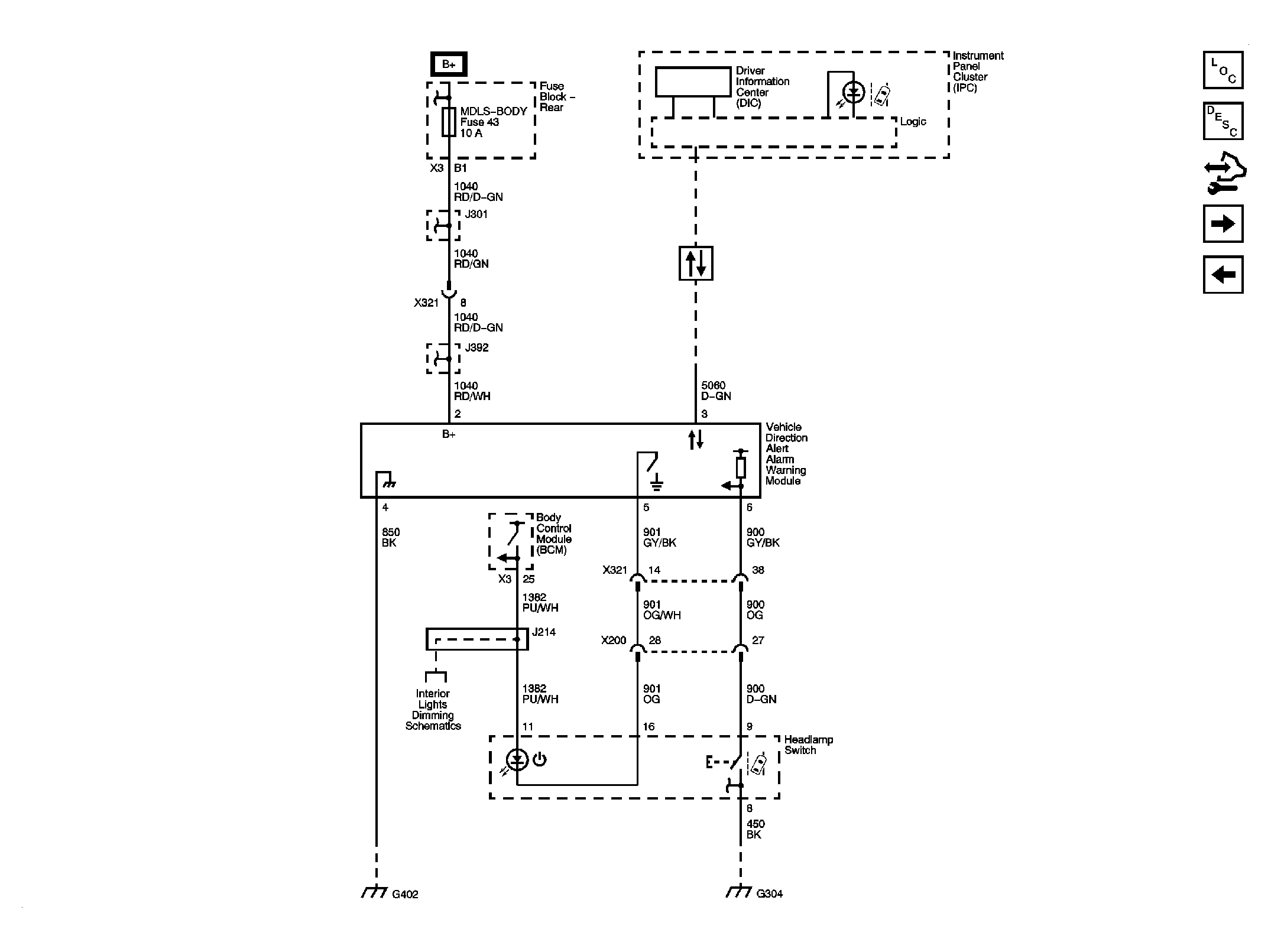

Fig 3: Lane Departure Warning System (UFL)

Courtesy of GENERAL MOTORS CORP.

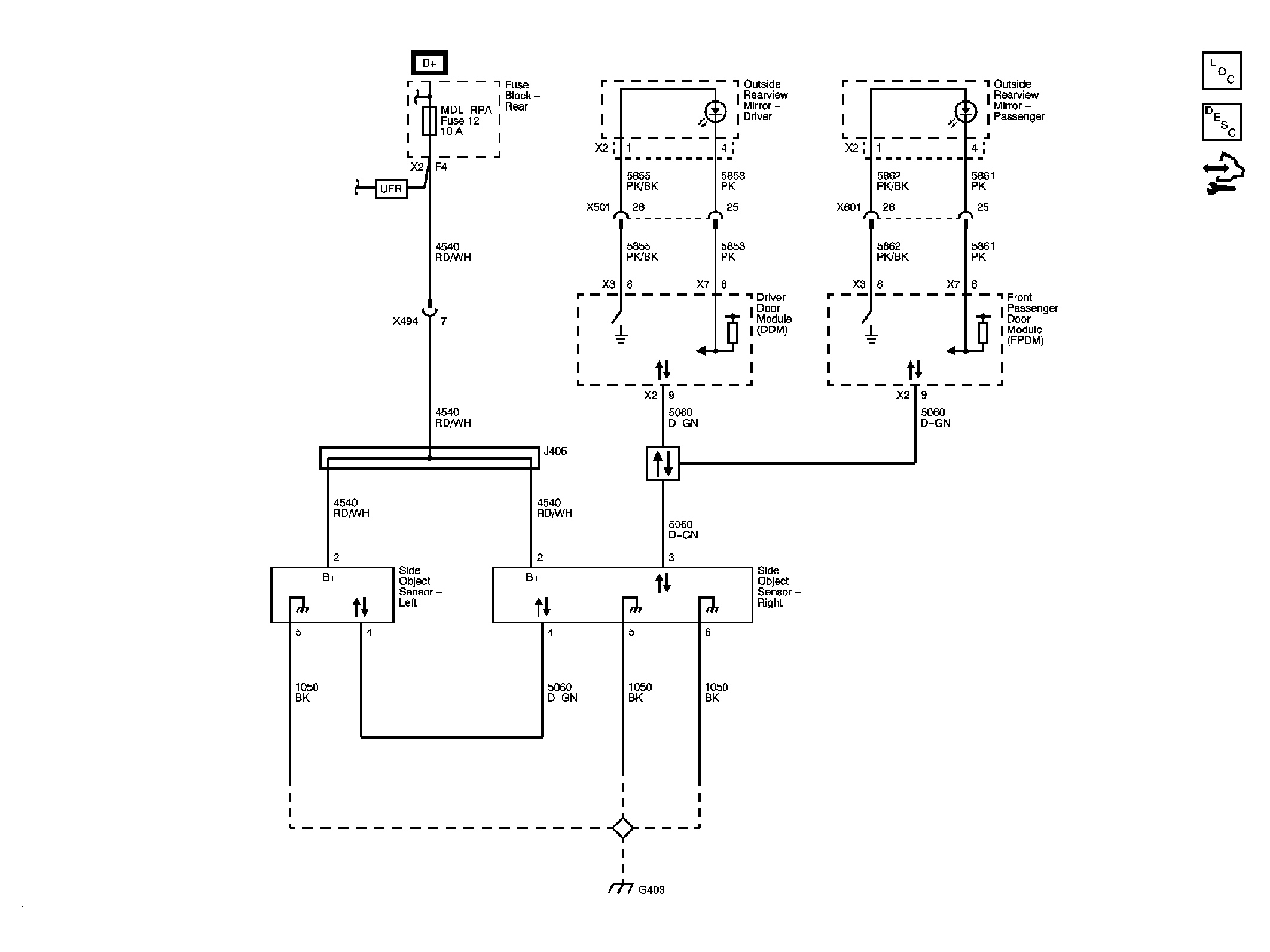

Fig 4: Side Object Detection (UFT)

Courtesy of GENERAL MOTORS CORP.
