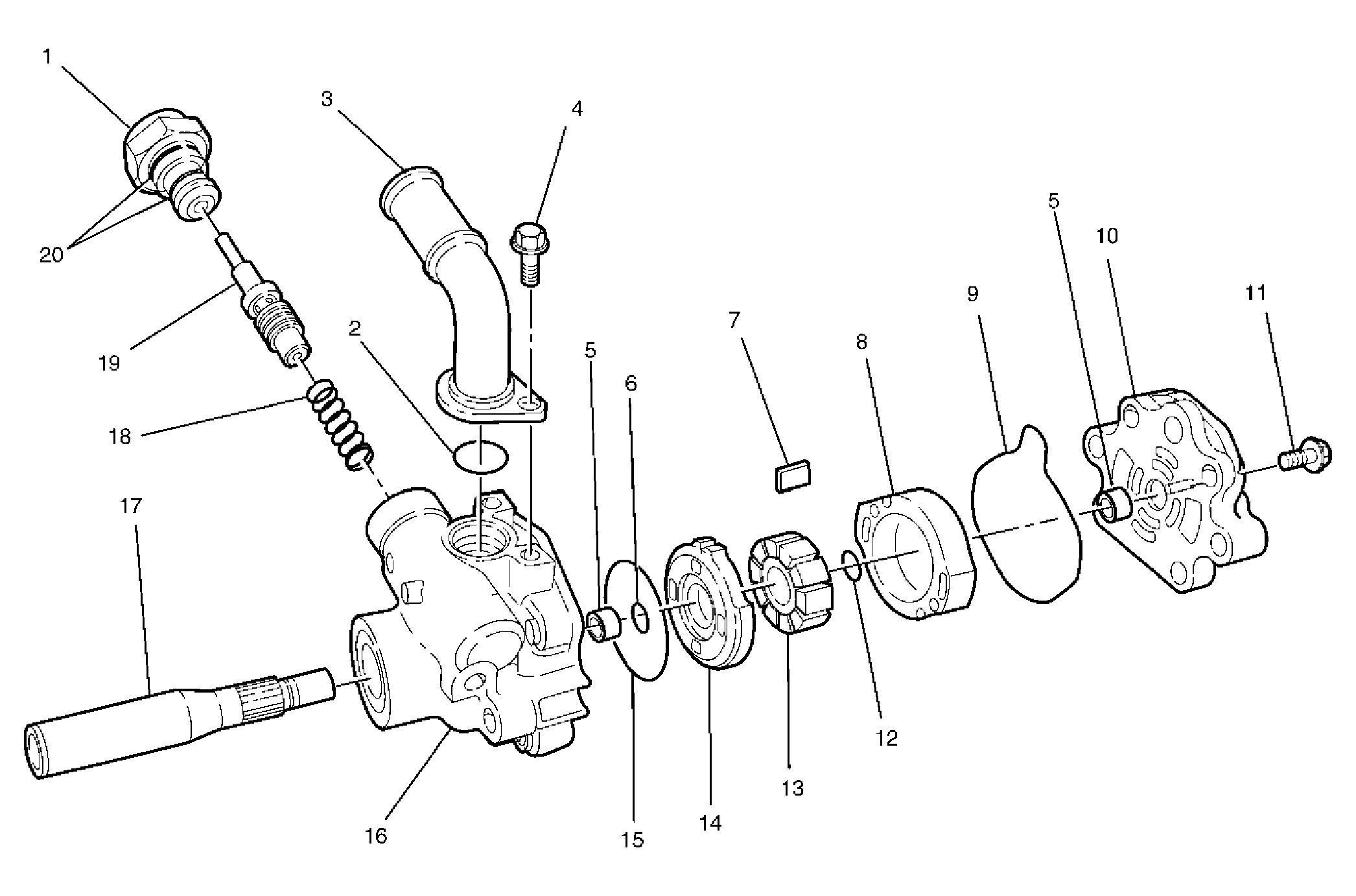

| 1 |
High Pressure Outlet Fitting |
| 2 |
Low Pressure Inlet Pipe O-ring |
| 3 |
Low Pressure Inlet Pipe |
| 4 |
Low Pressure Inlet Pipe to Power Steering Pump Housing Retaining Bolt |
| 5 |
Pump Housing Bushes |
| 6 |
Thrust Plate O-Ring - Small |
| 7 |
Vane, Ten places |
| 8 |
Power Steering Pump Ring |
| 9 |
Rear End Plate Seal |
| 10 |
Rear End Plate |
| 11 |
Rear End Plate Attaching Bolt, 4 Places |
| 12 |
Full Circumference Retainer Ring |
| 13 |
Rotor |
| 14 |
Thrust Plate |
| 15 |
Thrust Plate O-Ring - Large |
| 16 |
Pump Housing |
| 17 |
Power Steering Pump Drive Shaft |
| 18 |
Droop Flow Control Valve Spring |
| 19 |
Droop Flow Control Valve Assembly |
| 20 |
High Pressure Outlet Fitting O-Rings |
