Electrical Diagrams

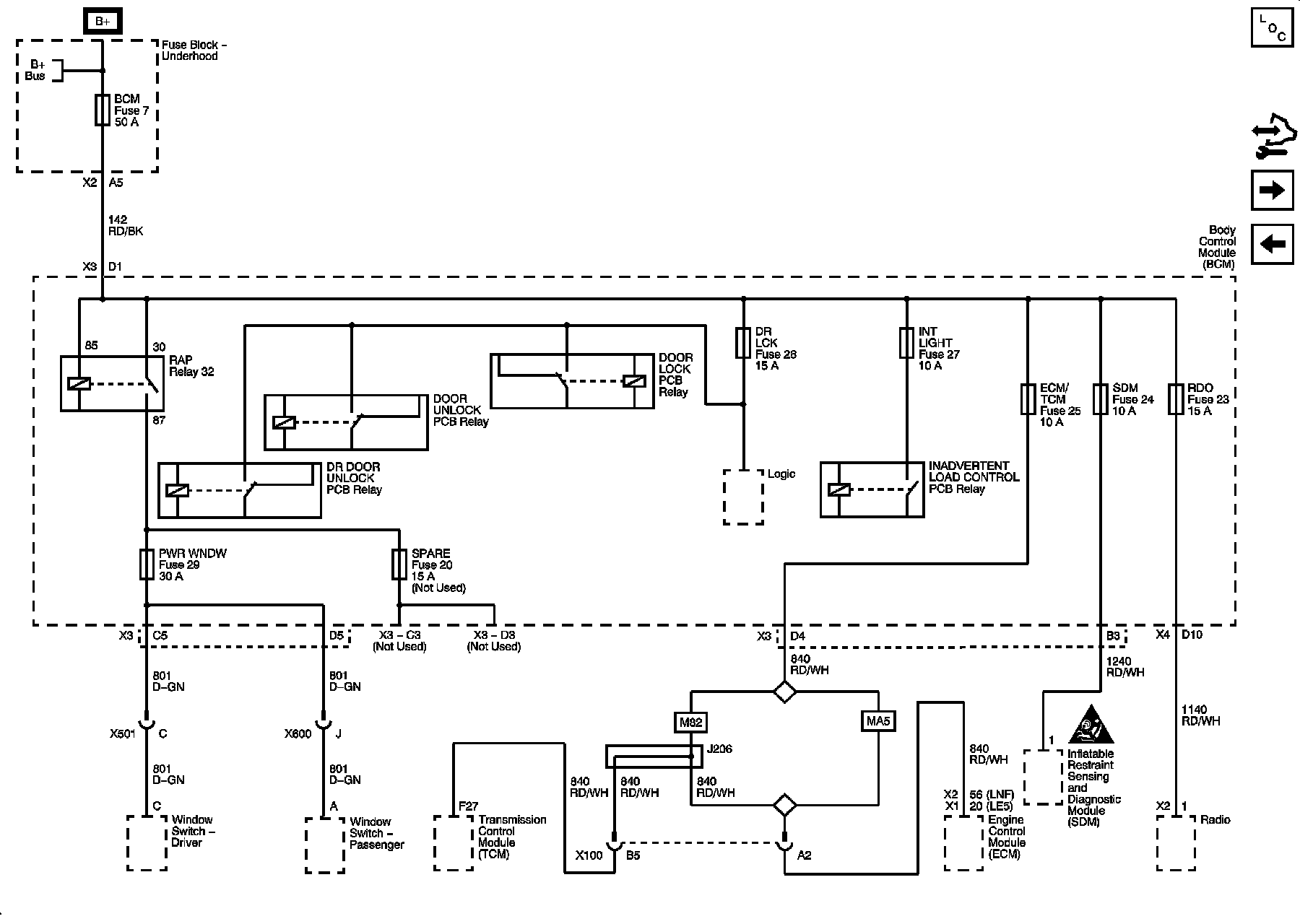

Power Distribution Schematics

BCM, DR LCK, ECM/TCM, INT/LIGHT, PWR WNDW, RDO, and SDM Fuses
